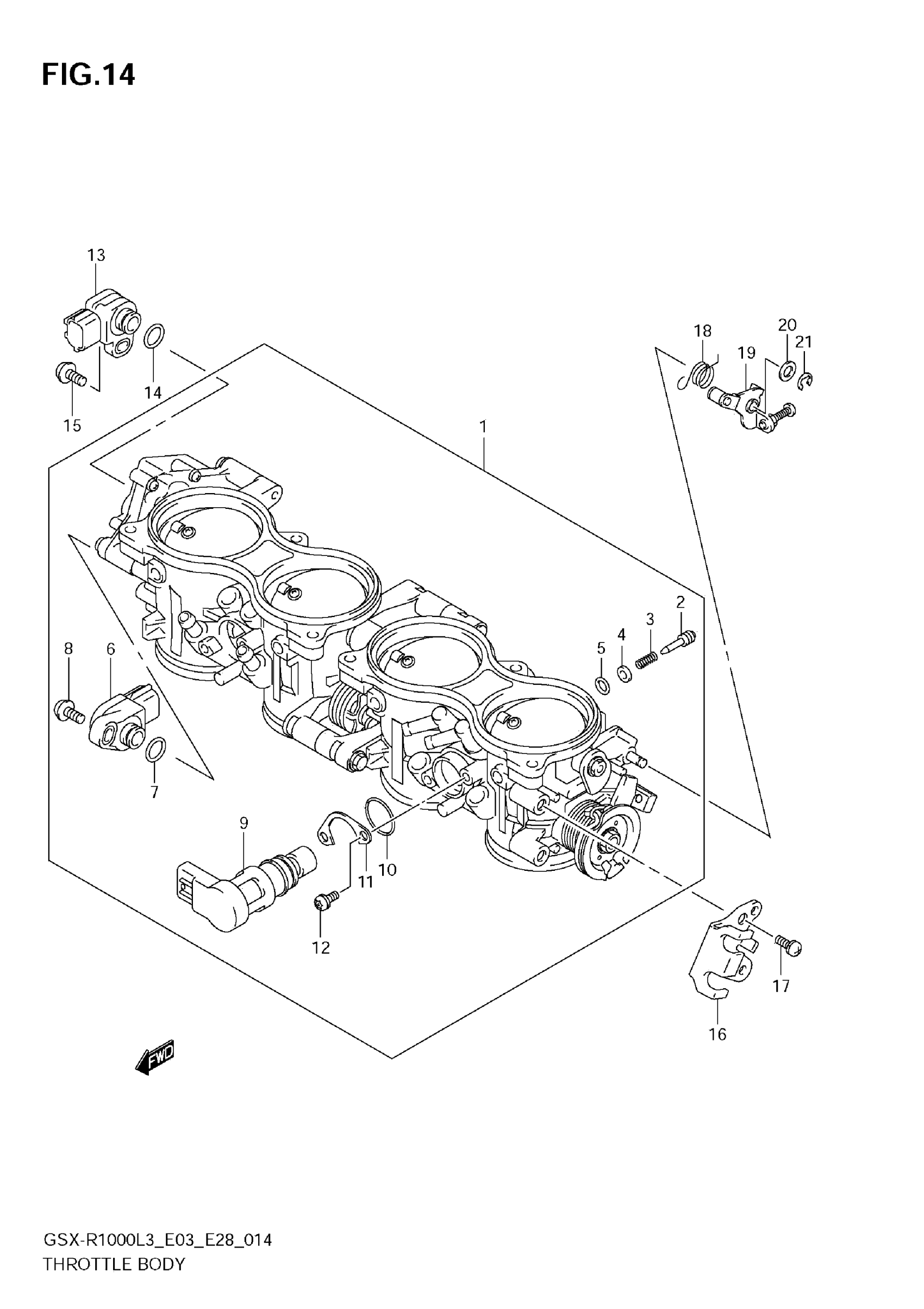

Suzuki GSX-R1000L3 (2013) THROTTLE BODY (GSX-R1000L3 E33) Diagram

#

Description
Price

1

THROTTLE BODY

13406-47H30

$2,562.48

2

SCREW, AIR ADJUST

13269-18G00

$13.35

3

SPRING

13271-43E00

Unavailable

4

WASHER

13291-26E00

$2.80

5

O RING

13295-26E00

$3.97

6

SENSOR ASSY, MAIN

13580-18G00

$191.97

7

O RING

13575-40F00

$3.85

8

SCREW

13605-40F00

$3.50

9

.VALVE ASSY, ISC This part replaces 18117-15H11.

18117-15H12

$403.72

10

O RING

18119-05H00

$4.47

11

PLATE

13428-15H00

Unavailable

12

SCREW

13605-15H00

$8.03

13

SENSOR ASSY, SUB

13580-47H00

$288.30

14

O RING

13575-40F00

$3.85

15

SCREW

13605-40F00

$3.50

16

PLATE, STAY

13565-21H00

Unavailable

17

SCREW

13601-21H00

Unavailable

18

SPRING

13426-21H00

Unavailable

19

LEVER, LINK

13420-47H00

Unavailable

20

WASHER

13427-35F10

Unavailable

21

E CLIP

13424-35F10

$4.28
