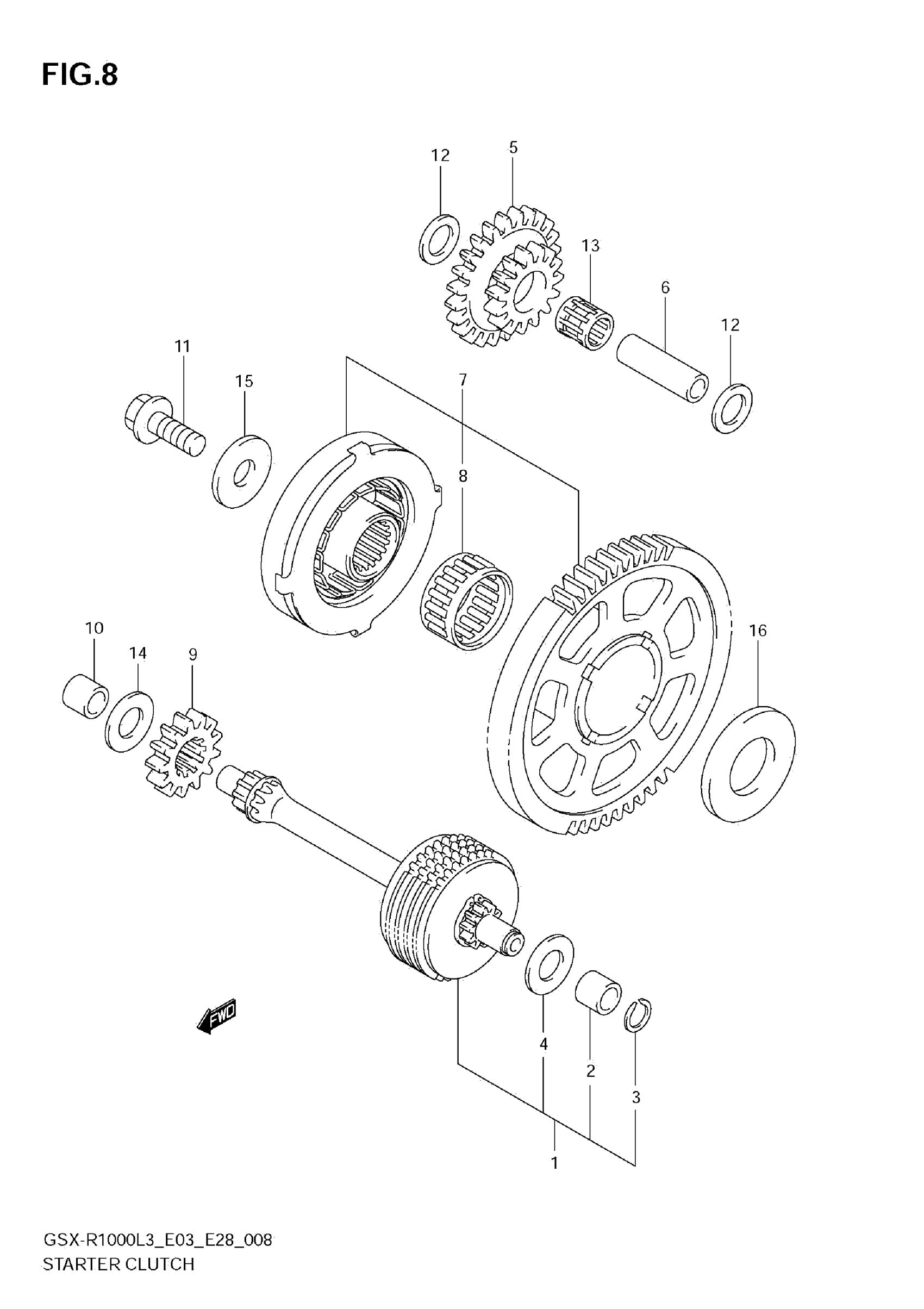

Suzuki GSX-R1000L3 (2013) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, START IDLE NO.1

12600-47850

Unavailable

2

BUSH

12618-31G00

$4.03

3

CIRCLIP

09380-09003

$1.67

4

WASHER

08211-10221

$2.28

5

GEAR, STARTER IDLE NO.2

12612-47H00

$102.17

6

PIN, STARTER IDLE NO.2

12151-09204

$10.17

7

CLUTCH SET,STAR This part replaces 12600-47840.

12600-47842

$215.13

8

BEARING (26X31X16)

09263-26035

$71.72

9

GEAR, LIMITER DRIVEN

12617-47H00

$51.82

10

BUSH

12618-31G00

$4.03

11

BOLT (10X23)

09103-10189

$4.04

12

SHIM (12X20X1)

09181-12167

$2.26

13

BEARING (12X16X16)

09263-12023

$10.19

14

WASHER

08211-10221

$2.28

15

WASHER

08211-10285

$3.49

16

WASHER

08211-20403

$4.32
