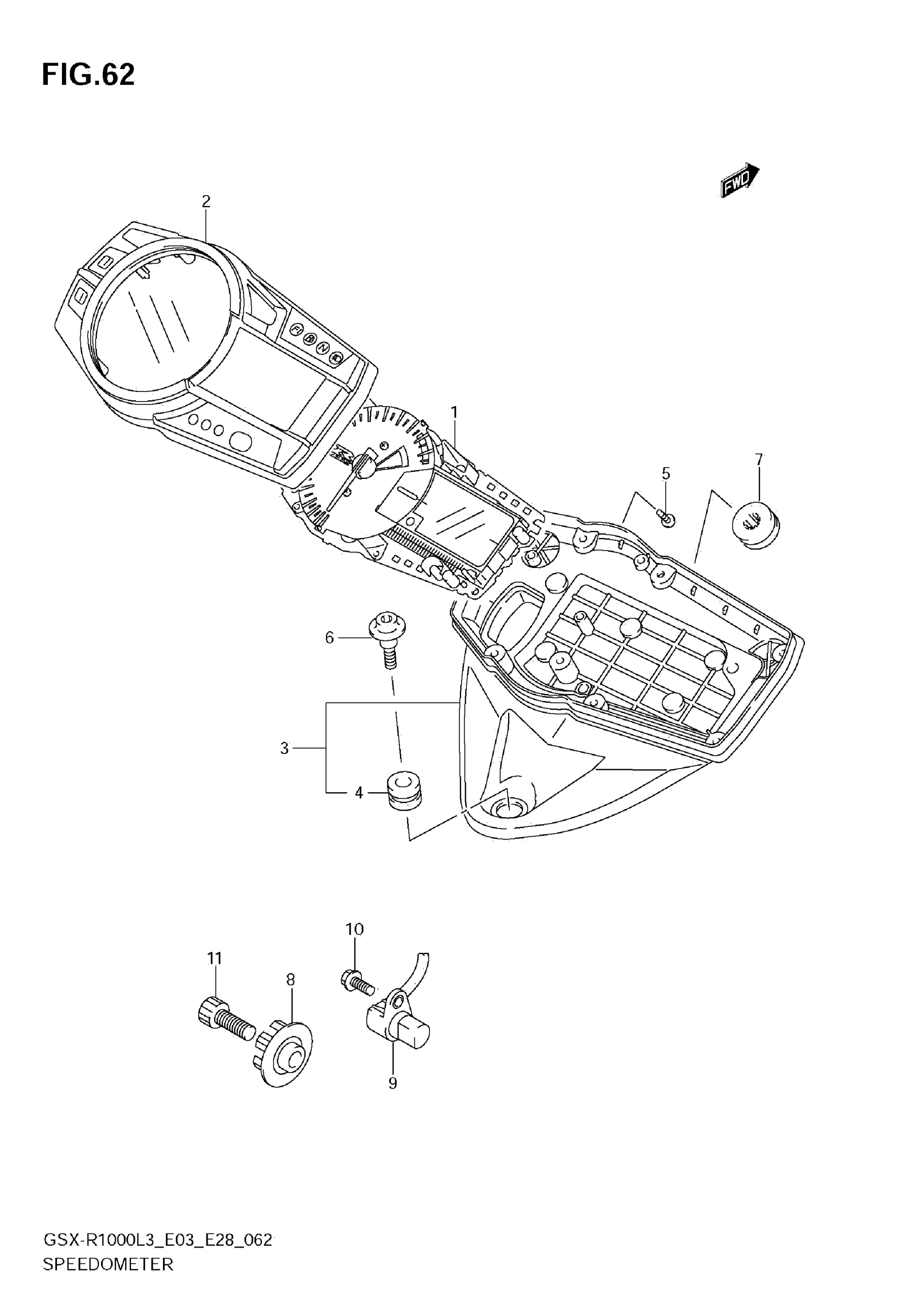

Suzuki GSX-R1000L3 (2013) SPEEDOMETER (GSX-R1000L3 E33) Diagram

#

Description
Price

1

COMBINATION METER

34120-47H50

Unavailable

2

CASE ASSY,UPR

34150-47H00

$168.77

3

CASE ASSY, LOWER

34111-47H00

$94.45

4

CUSHION, RUBBER

34955-33E00

$3.56

5

SCREW (3X16)

09132-03008

$1.53

6

SCREW, SPEEDOMETER

34149-18G00

$2.53

7

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

8

ROTOR, SPEED

34981-47H01

$25.18

9

SENSOR, SPEED

34990-35F00

$127.72

10

BOLT

07120-0512B

$2.61

11

BOLT

07130-0825B

$3.37
