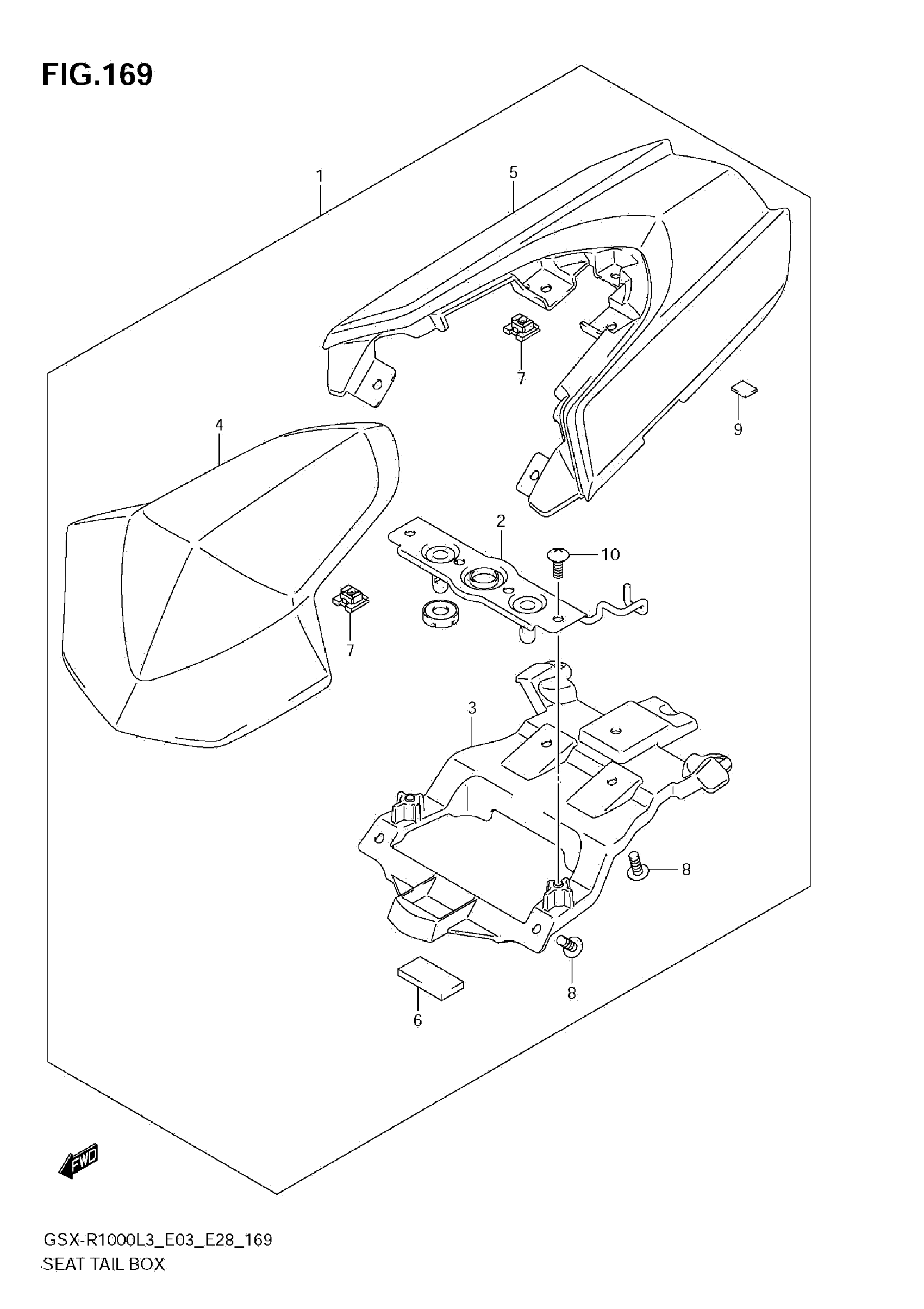

Suzuki GSX-R1000L3 (2013) SEAT TAIL BOX (GSX-R1000ZL3 E28) Diagram

#

Description
Price

1

BOX, SEAT TAIL (WHITE/BLACK)

45550-47H00-AHB

Unavailable

2

STRIKER

45290-47H10

$57.92

3

FRAME, SEAT TAIL BOX

45553-47H00

$19.32

4

BOX, SEAT TAIL FR (BLACK)

45551-47H00-YKV

$142.70

5

BOX, SEAT TAIL RR (WHITE)

45552-47H00-YWW

$135.78

6

CUSHION

45149-47H00

$7.95

7

NUT

09148-06018

$2.90

8

SCREW

02142-0616A

$1.37

9

CUSHION

45517-01H00

$6.10

10

SCREW

03541-0616A

$2.08
