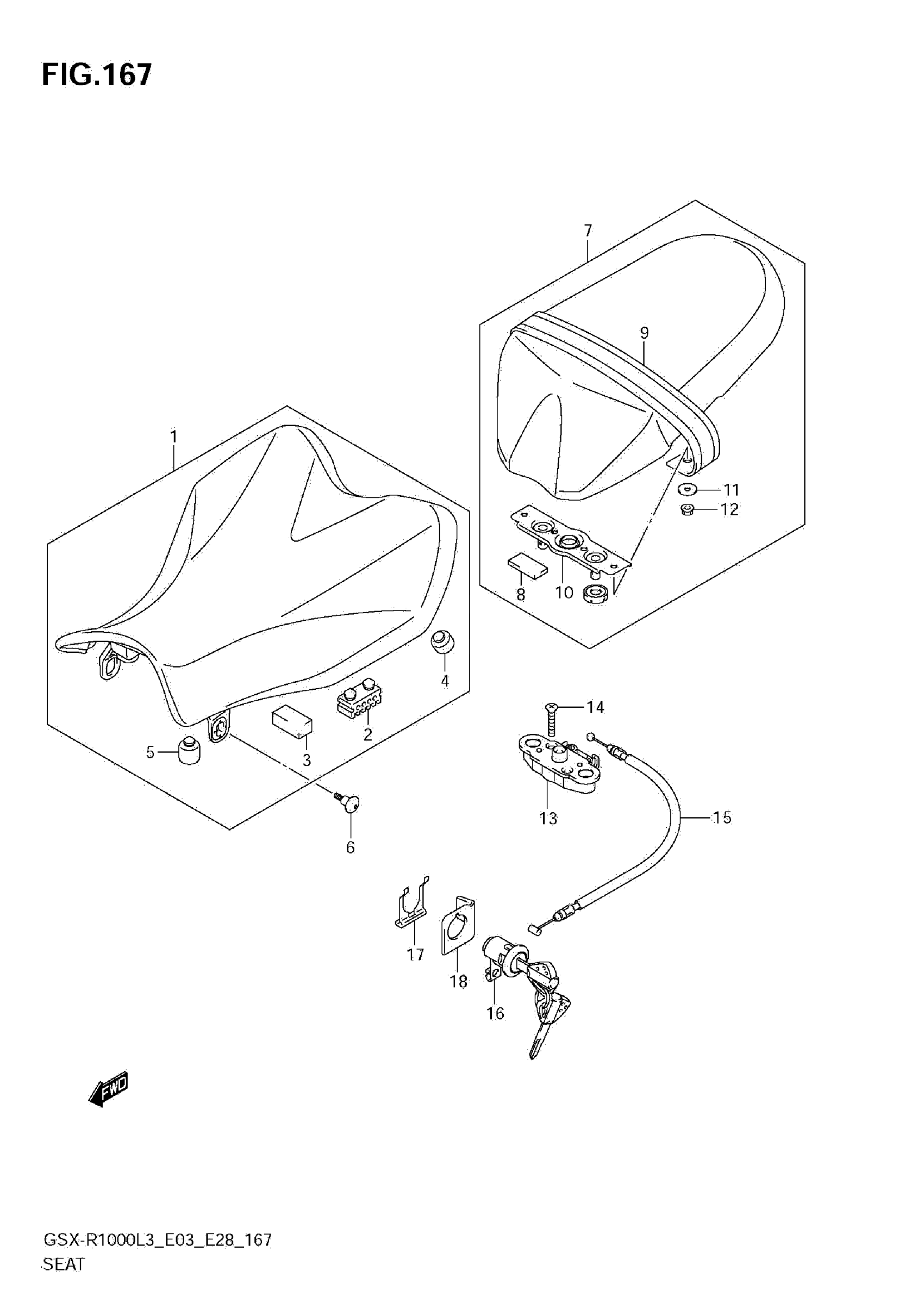

Suzuki GSX-R1000L3 (2013) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-47H10-DW2.

45100-47H11-DW2

$266.72

2

CUSHION, SIDE

45149-19D00

$10.42

3

CUSHION, FRONT (20X40X15)

45149-31E00

$6.92

4

CUSHION

09321-10011

$2.91

5

CUSHION

09321-10034

$9.11

6

BOLT (6X20)

09139-06190

$4.17

7

SEAT ASSY,PILLI This part replaces 45300-47H10-P3H.

45300-47H11-P3H

$270.65

8

CUSHION, FRONT (20X40X15)

45149-31E00

$6.92

9

BAND ASSY, SEAT (BLACK)

45180-47H00-P3H

$42.88

10

STRIKER

45290-47H01

$39.00

11

.WASHER (6.5X20X1.6)

09160-06088

$1.65

12

NUT

08316-1006A

$2.19

13

BRACKET, SEAT SUPPORT

45220-47H00

$138.38

14

SCREW

02122-0630A

$1.74

15

CABLE, SEAT LOCK

45280-47H00

$25.33

16

LOCK SET, SEAT

95700-14810

$107.30

17

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

18

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36
