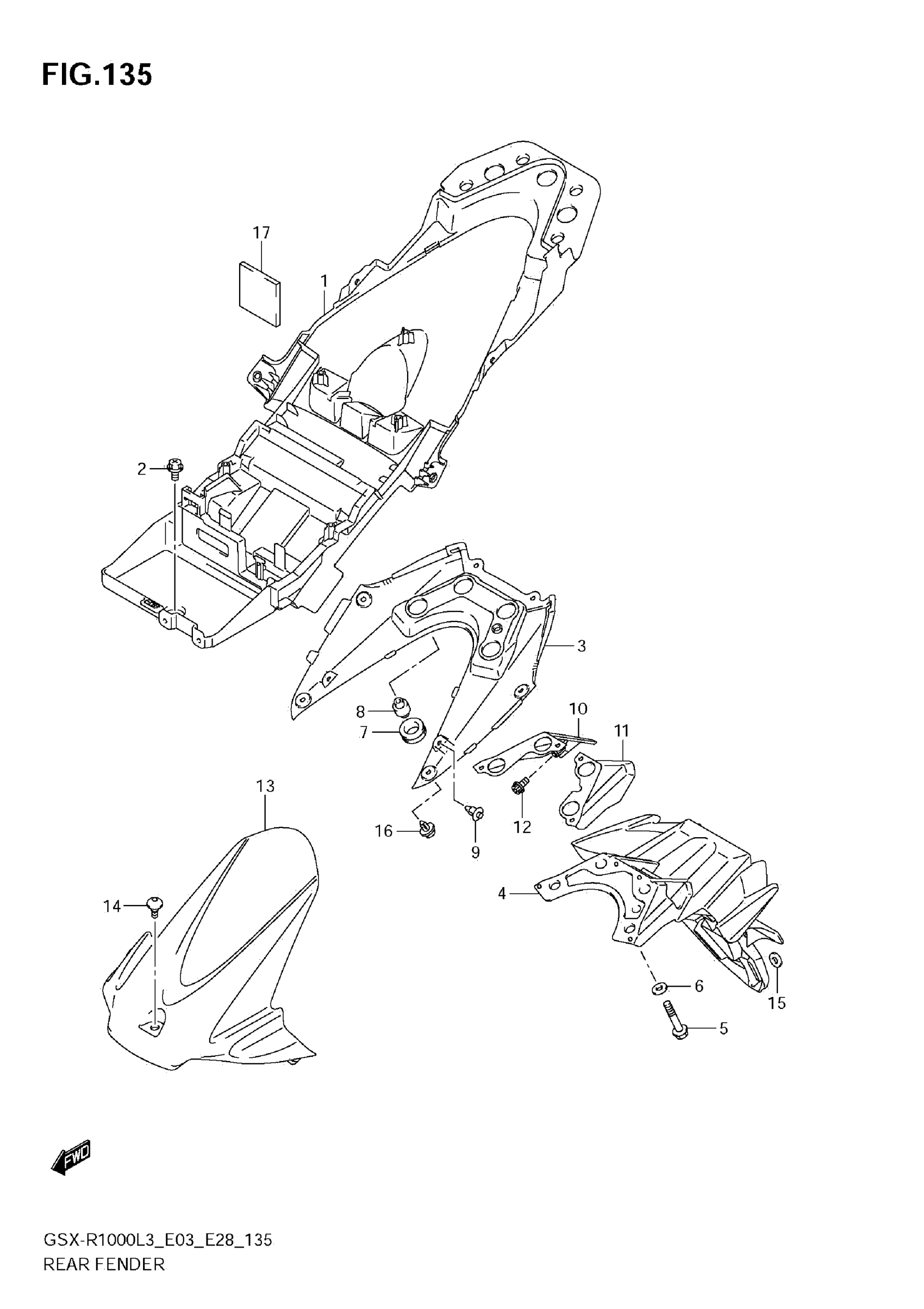

Suzuki GSX-R1000L3 (2013) REAR FENDER (GSX-R1000ZL3 E33) Diagram

Description

Price

FENDER, REAR FRONT

63111-47H10

$154.22

BOLT (6X12)

09111-06107

$2.60

COVER, FENDER FRONT (WHITE)

63112-47H10-YWW

Unavailable

FENDER, REAR REAR

63113-47H00

$148.07

BOLT (6X30)

09103-06204

$2.82

WASHER (6.5X18X1.0)

09160-06028

$1.49

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.69

SPACER

63147-47H00

$24.20

CLIP (BLACK)

09409-06314-5PK

$2.78

COVER, FENDER RR RH (SILVER)

63170-47H00-YUS

Unavailable

COVER, FENDER RR LH (SILVER)

63180-47H00-YUS

Unavailable

BOLT

07120-0510B

$3.05

FENDER, REAR LOWER

63114-47H00

$54.18

SCREW (6X16)

09139-06169

$3.10

WASHER

08322-0106A

$1.84

CLIP

09409-06328

$3.23

CUSHION, TOOL BAG

33652-20C00

$2.99
