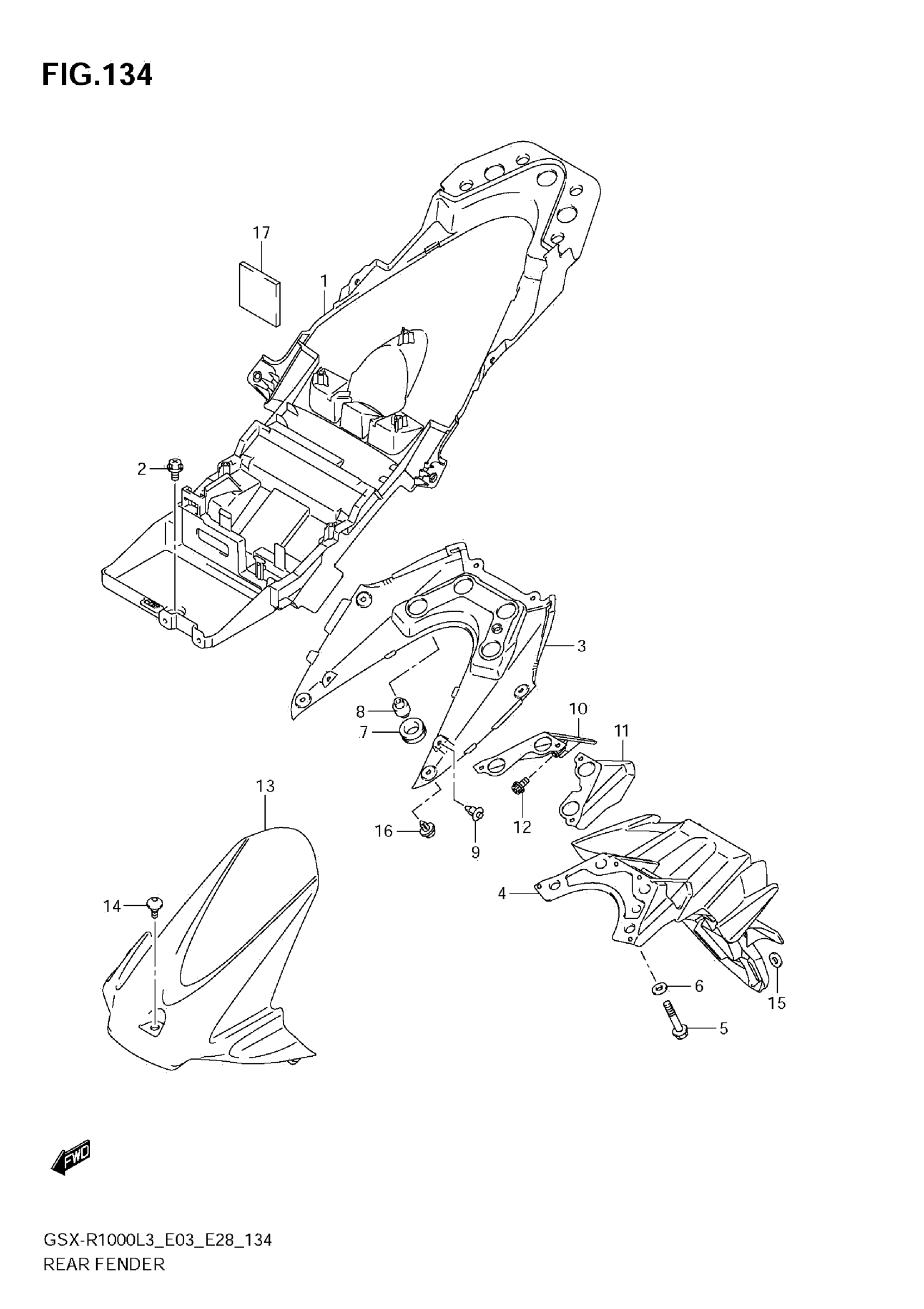

Suzuki GSX-R1000L3 (2013) REAR FENDER (GSX-R1000ZL3 E28) Diagram

Description

Price

FENDER, REAR FRONT

63111-47H10

$173.22

BOLT (6X12)

09111-06107

$2.66

COVER, FENDER FRONT (WHITE)

63112-47H10-YWW

Unavailable

FENDER, REAR REAR

63113-47H00

$166.30

BOLT (6X30)

09103-06204

$2.80

WASHER (6.5X18X1.0)

09160-06028

$1.43

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.71

SPACER

63147-47H00

$27.32

CLIP (BLACK)

09409-06314-5PK

$2.80

COVER, FENDER RR RH (SILVER)

63170-47H00-YUS

Unavailable

COVER, FENDER RR LH (SILVER)

63180-47H00-YUS

Unavailable

BOLT

07120-0510B

$3.32

FENDER, REAR LOWER

63114-47H00

$61.17

SCREW (6X16)

09139-06169

$2.80

WASHER

08322-0106A

$1.83

CLIP

09409-06328

$2.92

CUSHION, TOOL BAG

33652-20C00

$2.80
