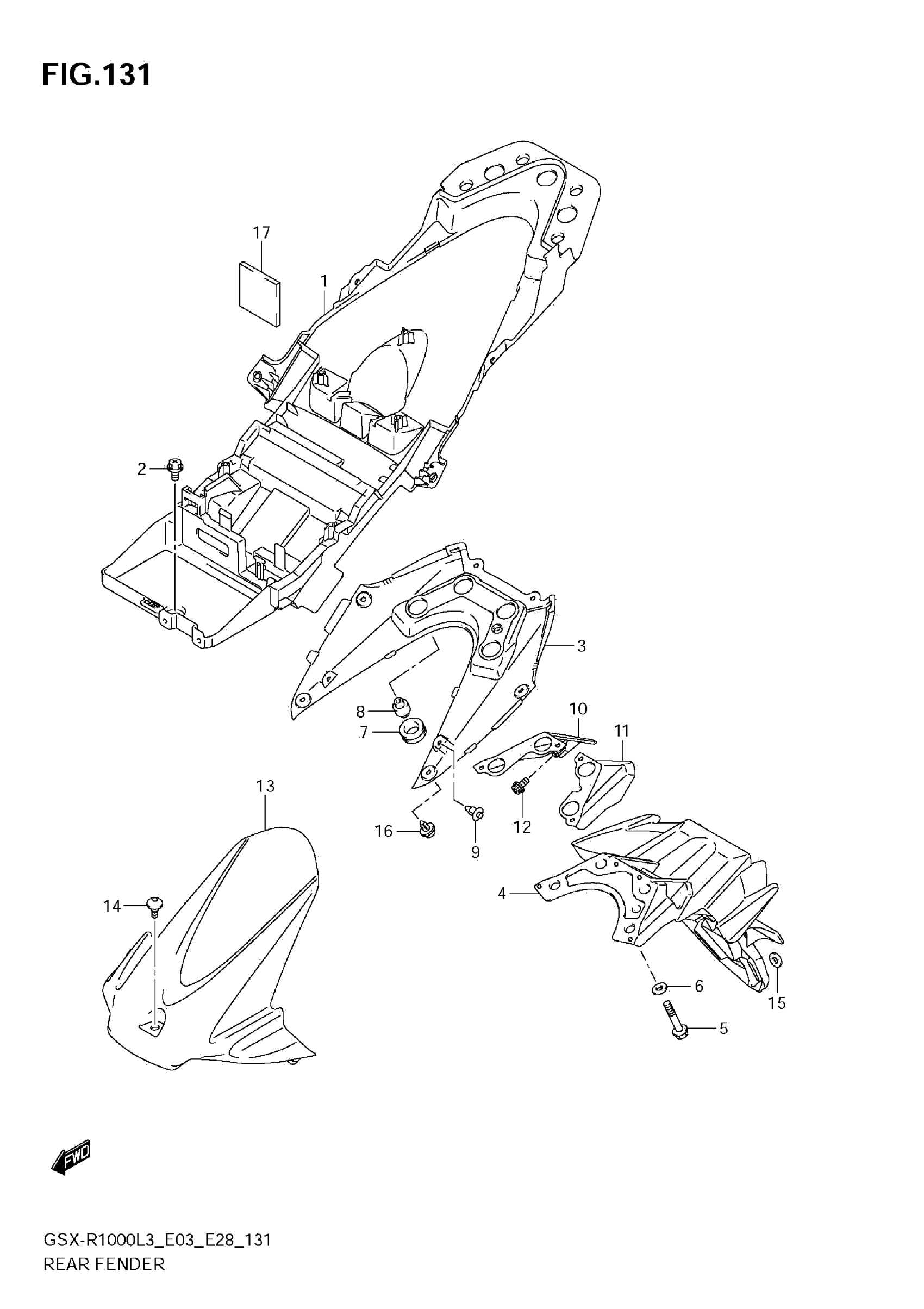

Suzuki GSX-R1000L3 (2013) REAR FENDER (GSX-R1000L3 E28) Diagram

#

Description
Price

1

FENDER, REAR FRONT

63111-47H10

$154.22

2

BOLT (6X12)

09111-06107

$2.60

3

COVER, FENDER FRONT (WHITE) | FOR GLR

63112-47H10-YBD

$157.72

3

COVER, FENDER FRONT (BLACK) | FOR KGL

63112-47H10-YKV

Unavailable

4

FENDER, REAR REAR

63113-47H00

$148.07

5

BOLT (6X30)

09103-06204

$2.82

6

WASHER (6.5X18X1.0)

09160-06028

$1.49

7

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.69

8

SPACER

63147-47H00

$24.20

9

CLIP (BLACK)

09409-06314-5PK

$2.78

10

COVER, FENDER RR RH (SILVER)

63170-47H00-YUS

Unavailable

11

COVER, FENDER RR LH (SILVER)

63180-47H00-YUS

Unavailable

12

BOLT

07120-0510B

$3.05

13

FENDER, REAR LOWER

63114-47H00

$54.18

14

SCREW (6X16)

09139-06169

$3.10

15

WASHER

08322-0106A

$1.84

16

CLIP

09409-06328

$3.23

17

CUSHION, TOOL BAG

33652-20C00

$2.99
