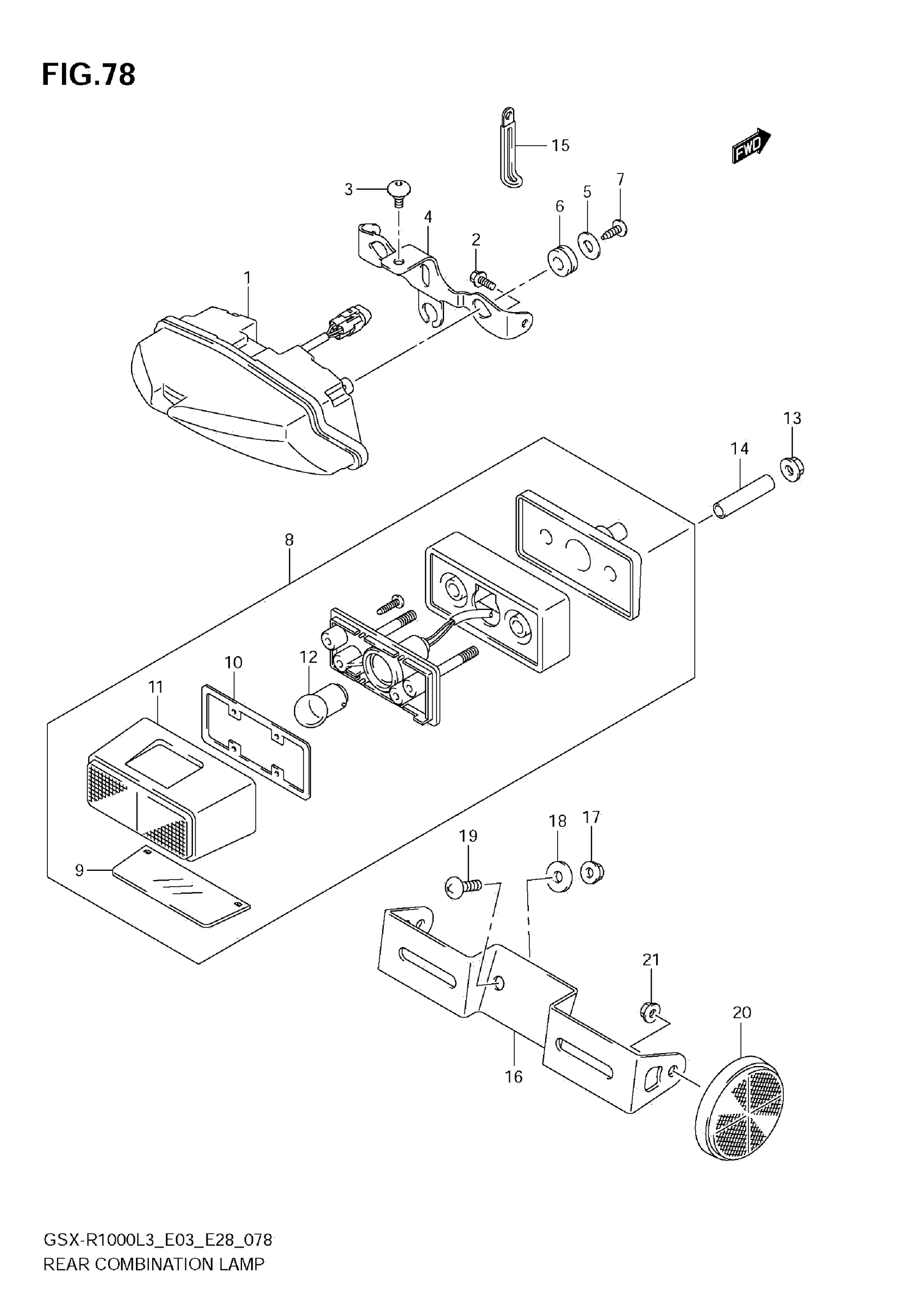

Suzuki GSX-R1000L3 (2013) REAR COMBINATION LAMP (GSX-R1000ZL3 E33) Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB This part replaces 35710-14JA0.

35710-14JC0

$125.93

2

BOLT (5X12)

09106-05031

$2.88

3

SCREW (6X12)

09139-06152

$5.85

4

BRACKET, RR COMBINATION LAMP

35726-47H00

$19.58

5

WASHER (5.5X20X1.2)

09160-05501

$1.84

6

CUSHION

09320-10049

$2.35

7

SCREW

03541-0516A

$1.49

8

LAMP ASSY,LICENSE This part replaces 35910-41G31.

35910-41G32

$88.47

9

LENS, LICENSE

35912-41G01

$13.28

10

GASKET

35913-41G00

$14.23

11

COVER, LICENSE LAMP

35917-41G00

$35.32

12

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

13

NUT

09159-06096

$3.15

14

SPACER (6.5X9X9.5)

09180-06356

$4.68

15

CLAMP (L:45)

09404-06429

$1.83

16

BRACKET, LICENSE PLATE

35927-41G30

$15.17

17

NUT

08316-1006A

$2.19

18

WASHER (6.5X20X1.2)

09160-06077

$1.91

19

SCREW

02142-0616A

$1.49

20

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

21

NUT

08316-1005A

$2.19
