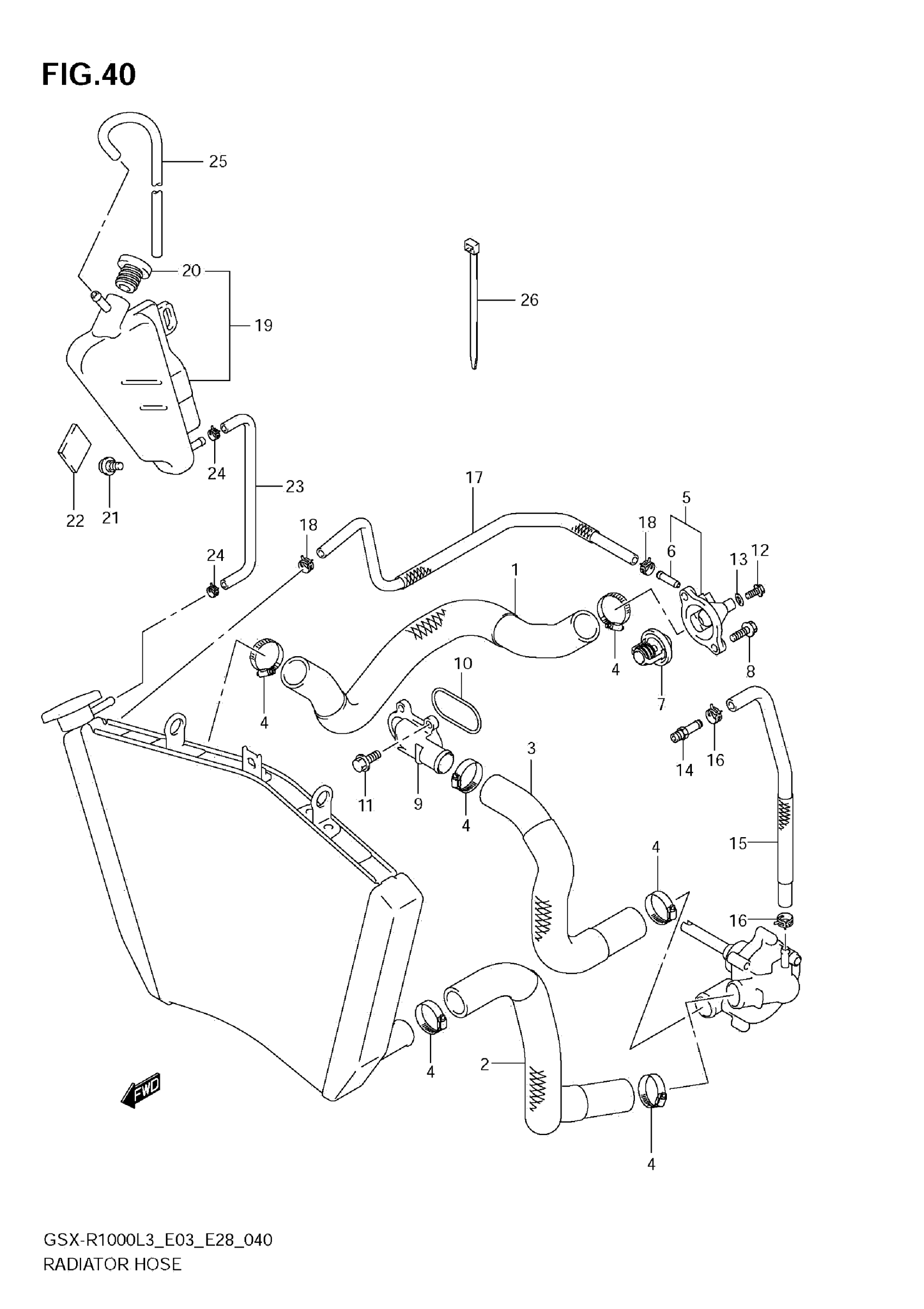

Suzuki GSX-R1000L3 (2013) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-47H10

$84.83

2

HOSE, RADIATOR OUTLET

17852-47H10

$75.40

3

HOSE, CYLINDER INLET

17853-47H10

$70.17

4

CLAMP

09402-35501

$6.68

5

COVER, THERMOSTAT

17661-35F00

$57.22

6

UNION

09364-06002

Unavailable

7

THERMOSTAT COMP This part replaces 17670-47H00.

17670-47H01

$24.44

8

BOLT

01547-0620A

$2.01

9

CONNECTOR, CYLINDER INLET

17861-47H00

Unavailable

10

O RING

17863-47H00

$9.70

11

BOLT

01547-0620A

$2.01

12

BOLT, THERMOSTAT COVER AIR

17568-50F00

$6.32

13

GASKET (6.4X11.5X0.8)

09168-06026

$2.80

14

UNION

09362-09011

$7.57

15

HOSE, WATER BYPASS

17854-47H10

$40.92

16

CLIP This part replaces 09401-12409.

09401-12414

$2.98

17

HOSE, WATER AIR BLEED

17855-47H10

Unavailable

18

CLIP (ID:10.5,H:8)

09401-10409

$2.28

19

TANK ASSY, RESERVOIR

17910-47H00

$87.95

20

.CAP,RESERVOIR TANK

17931-02FA0

$5.09

21

BOLT (6X12)

09111-06085

$4.16

22

CUSHION

63191-25C00

$2.88

23

HOSE, RESERVOIR TANK INLET

17981-47H00

$15.47

24

CLIP

09401-08411

$1.77

25

HOSE, OVER FLOW

17982-47H00

Unavailable

26

CLAMP (L:100)

09407-10404

$2.71
