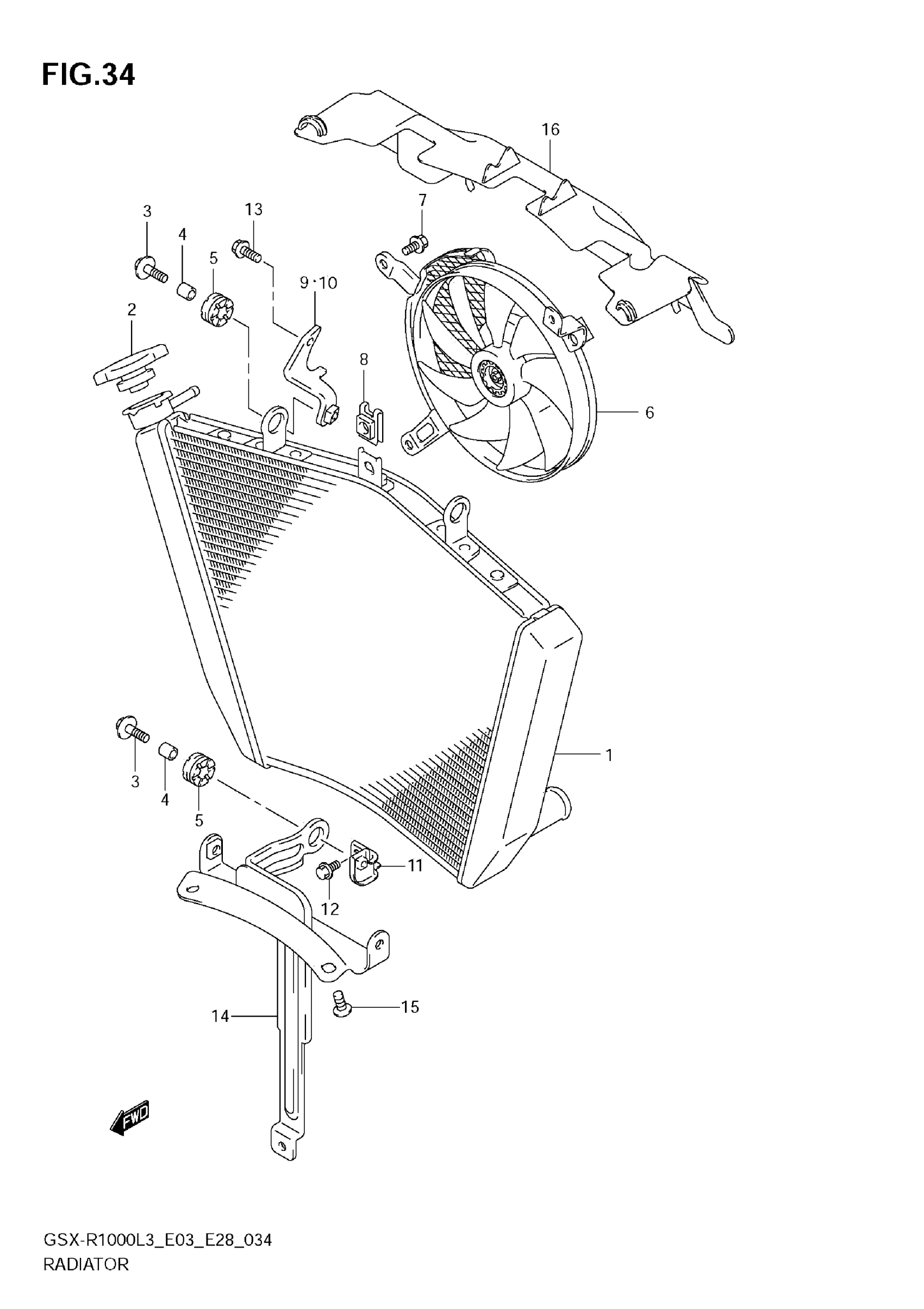

Suzuki GSX-R1000L3 (2013) RADIATOR (GSX-R1000L3 E03) Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-47H10

$1,157.60

2

CAP

17730-08J00

$42.50

3

BOLT (6X25)

09118-06097

$2.50

4

SPACER (6.5X10X12)

09180-06290

$2.35

5

CUSHION

09320-10051

$2.99

6

FAN ASSY, RADIATOR

17800-47H00

$711.80

7

BOLT, FAN ASSY

17711-08J00

$4.73

8

NUT, FAN ASSY

17712-40F00

$4.68

9

BRACKET, RADIATOR RH

17741-47H00

$17.12

10

BRACKET, RADIATOR LH

17742-47H00

$17.12

11

BRACKET,RADIATOR & OIL COOLER

17750-47H10

$11.30

12

BOLT

01550-0612A

$1.97

13

BOLT

01550-0616A

$1.97

14

BRACKET, RADIATOR SUPPORT

17790-47H00

Unavailable

15

BOLT (6X10)

09103-06307

$3.27

16

SHIELD, RADIATOR HEAT

17771-47H00

Unavailable
