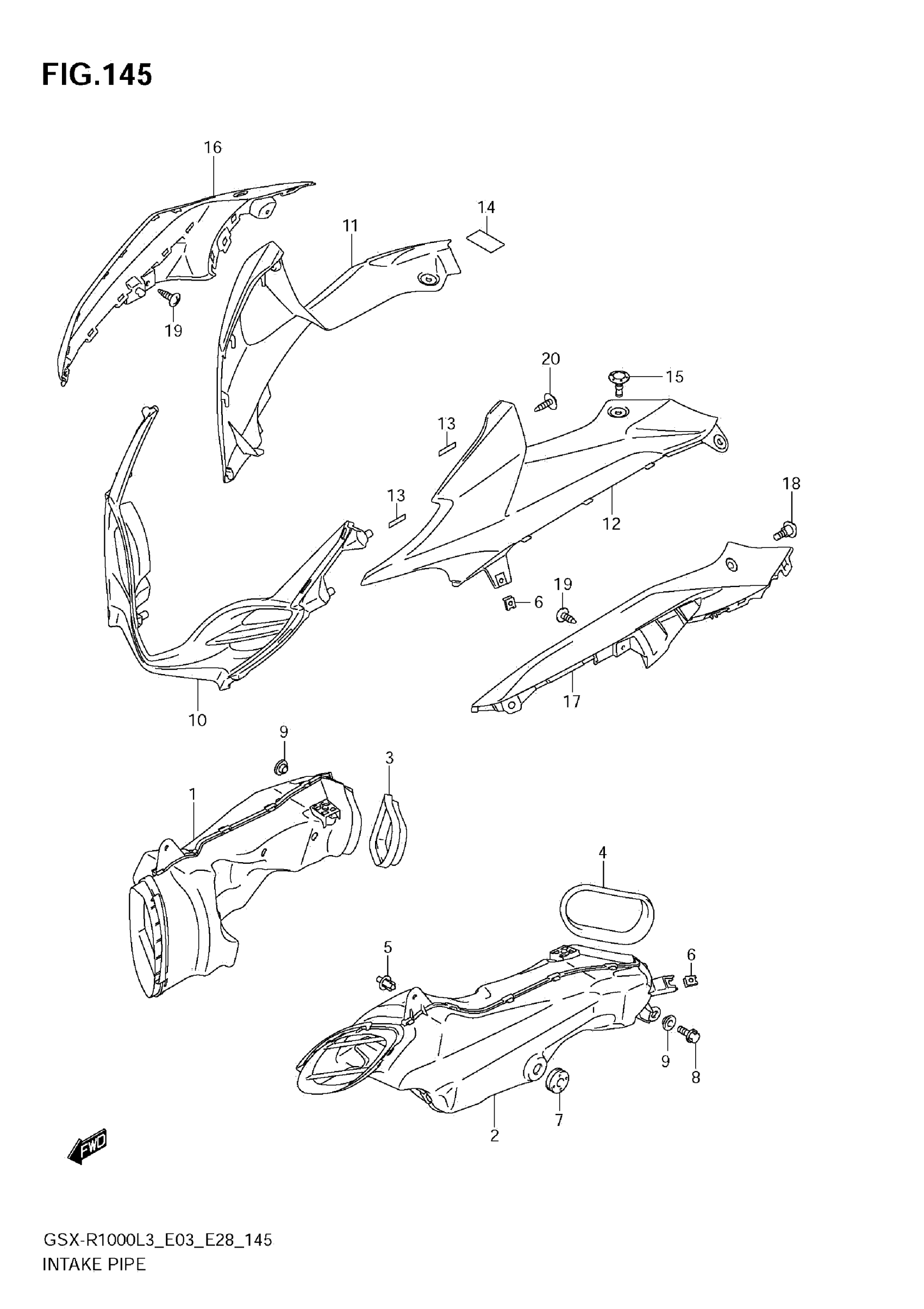

Suzuki GSX-R1000L3 (2013) INTAKE PIPE (GSX-R1000ZL3 E03) Diagram

#

Description
Price

1

PIPE, AIR INTAKE RH

94420-47H00

$122.85

2

PIPE, AIR INTAKE LH

94430-47H00

$106.39

3

MOLDING, RH

94423-47H00

$17.83

4

MOLDING, LH

94433-47H00

$17.52

5

CLIP (BLACK)

09409-06314-5PK

$2.78

6

NUT

09148-05052

$3.37

7

CUSHION

09320-08028

$3.04

8

BOLT

01550-0616A

$1.97

9

WASHER

09169-06082

$4.32

10

COVER, INTAKE FRONT (RED)

94671-47H10-YVZ

$221.95

11

COVER, INTAKE RH (BLACK)

94672-47H10-YKV

$248.13

12

COVER, INTAKE LH (BLACK)

94682-47H10-YKV

$243.55

13

TAPE

94443-06G00

$3.25

14

CUSHION

33652-29F00

$3.03

15

CLIP

94479-35F00

$5.62

16

COWL, SIDE UPPER RH (WHITE)

94473-47H00-YWW

$304.03

17

COWL, SIDE UPPER LH (WHITE)

94483-47H00-YWW

$258.43

18

SCREW (5X16)

09139-05077

$3.25

19

SCREW

03541-0516A

$1.49

20

SCREW (5X12)

09132-05050

$1.92
