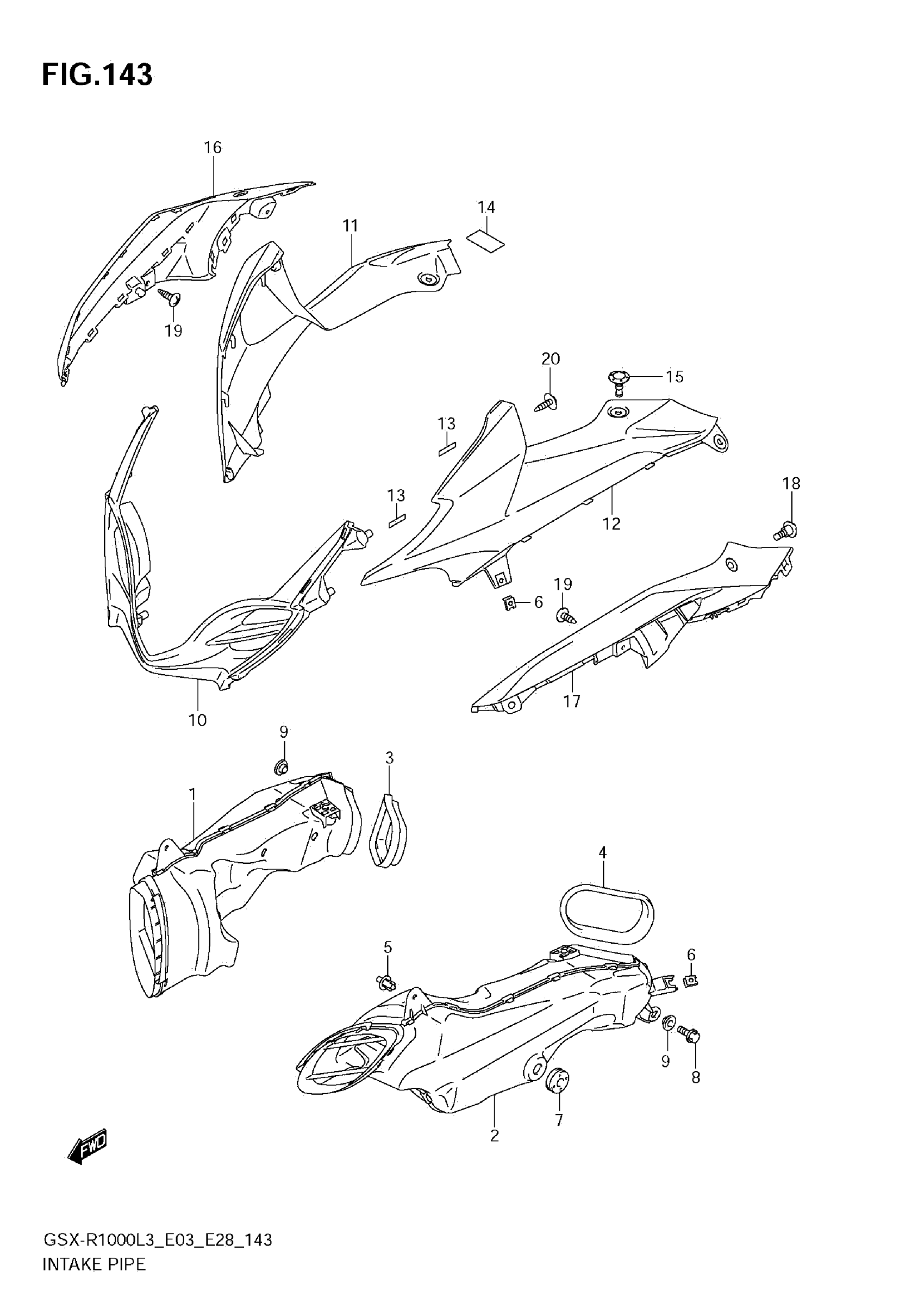

Suzuki GSX-R1000L3 (2013) INTAKE PIPE (GSX-R1000L3 E28) Diagram

#

Description
Price

1

PIPE, AIR INTAKE RH

94420-47H00

$137.98

2

PIPE, AIR INTAKE LH

94430-47H00

$140.58

3

MOLDING, RH

94423-47H00

$20.13

4

MOLDING, LH

94433-47H00

$19.78

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

NUT

09148-05052

$3.04

7

CUSHION

09320-08028

$2.80

8

BOLT

01550-0616A

$1.97

9

WASHER

09169-06082

$4.70

10

COVER, INTAKE FRONT (BLUE) | FOR GLR

94671-47H10-YUA

Unavailable

10

COVER, INTAKE FRONT (SILVER) | FOR KGL

94671-47H10-YMC

$262.12

11

COVER, INTAKE RH (WHITE) | FOR GLR

94672-47H10-YBD

$281.32

11

COVER, INTAKE RH (BLACK) | FOR KGL

94672-47H10-YKV

$276.13

12

COVER, INTAKE LH (WHITE) | FOR GLR

94682-47H10-YBD

$281.32

12

COVER, INTAKE LH (BLACK) | FOR KGL

94682-47H10-YKV

$271.02

13

TAPE

94443-06G00

$2.97

14

CUSHION

33652-29F00

$2.80

15

CLIP

94479-35F00

$5.14

16

COWL, SIDE UPPER RH (BLUE) | FOR GLR

94473-47H00-YUA

$359.10

16

COWL, SIDE UPPER RH (BLACK) | FOR KGL

94473-47H00-YVB

$381.82

17

COWL, SIDE UPPER LH (BLUE) | FOR GLR

94483-47H00-YUA

$359.10

17

COWL, SIDE UPPER LH (BLACK) | FOR KGL

94483-47H00-YVB

$389.05

18

SCREW (5X16)

09139-05077

$2.97

19

SCREW

03541-0516A

$1.37

20

SCREW (5X12)

09132-05050

$1.89
