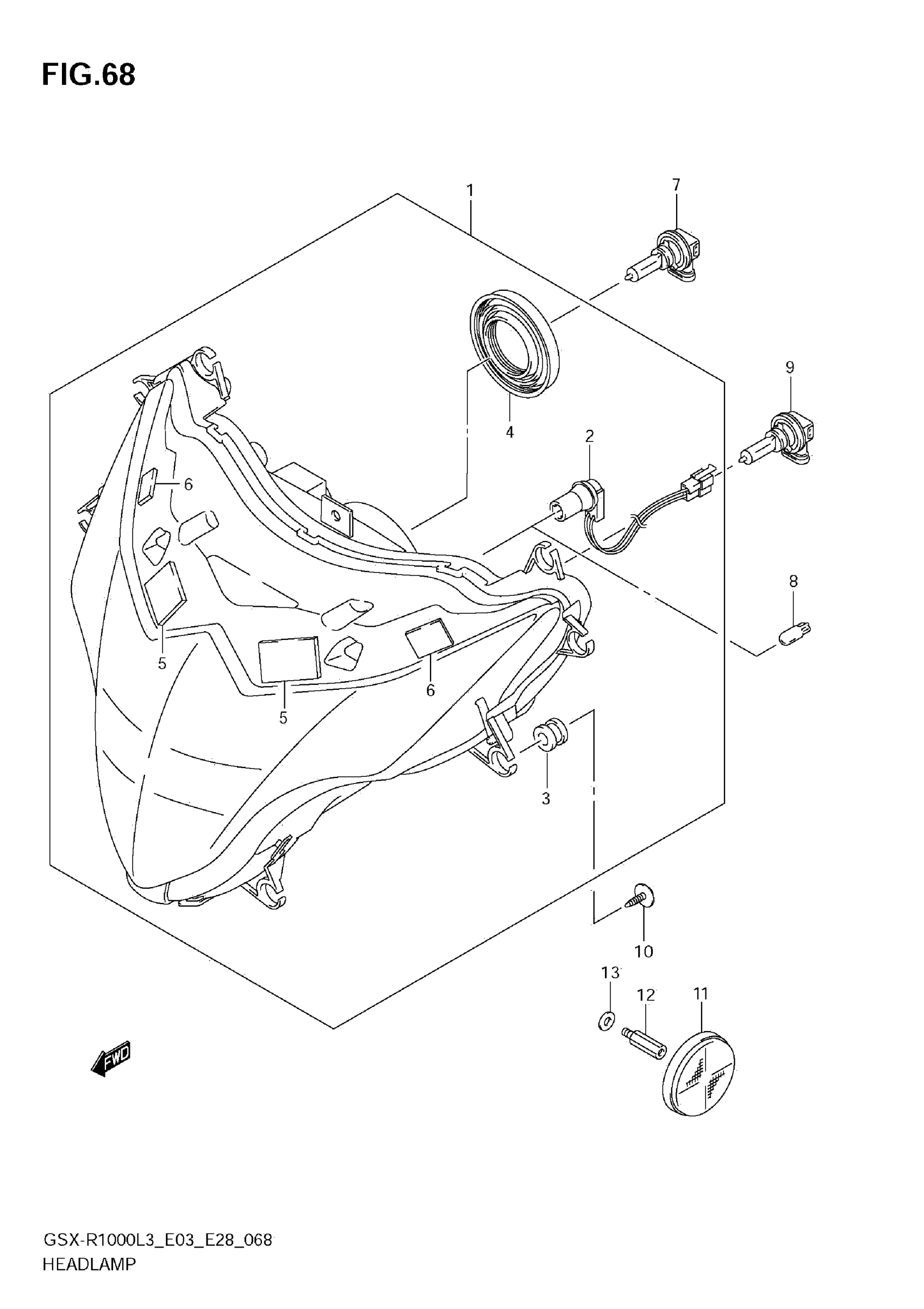

Suzuki GSX-R1000L3 (2013) HEADLAMP (GSX-R1000L3 E33) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 35100-47H31-999.

35100-47H32-999

$566.53

2

CORD ASSY

36118-29G51

$18.88

3

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

4

COVER, SOCKET

35179-76F10

$12.40

5

FASTENER

44572-02F01

$11.07

6

FASTENER, COWLING

44572-37H00

$9.83

7

BULB (12V55W)

09471-12210

$54.37

8

.BULB (12V5W)

09471-12216

$5.36

9

BULB (12V65W)

09471-12222

$83.53

10

SCREW (5X15)

09136-05062

$2.19

11

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

12

BOLT

09119-06109

$13.28

13

WASHER (8.5X18X1)

09160-08043

$1.83
