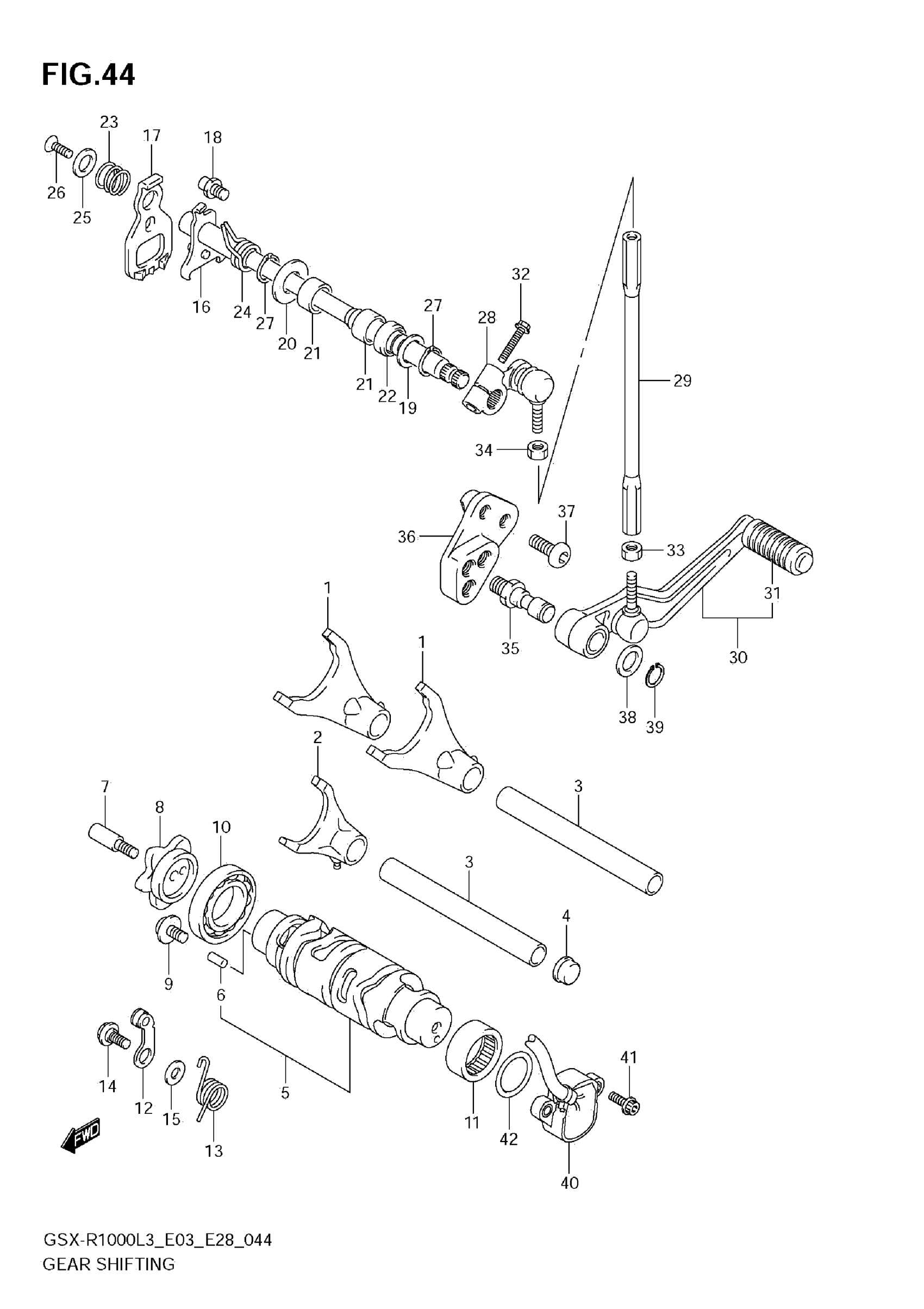

Suzuki GSX-R1000L3 (2013) GEAR SHIFTING Diagram

FORK,GEAR SHIFT NO.1 This part replaces 25211-01H10.

25211-01H11

$80.17

FORK,GEAR SHIFT NO.3 This part replaces 25231-01H01.

25231-01H02

$78.68

SHAFT, GEAR SHIFT FORK

25411-27A00

$29.25

PLUG, GEAR SHIFT FORK SHAFT

25712-37H00

$7.57

CAM, GEAR SHIFT

25310-47H00

Unavailable

PIN (4X13.8)

04221-04089

$1.49

BOLT, GEAR SHIFT CAM PLATE

25312-42F01

$7.95

PLATE, GEAR SHIFT CAM

25381-13E30

$56.68

SCREW (6X12)

09136-06147

$3.20

BEARING (25X47X8)

09262-25006

$25.54

BEARING (25X32X12) | LH

09263-25018

$21.39

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$18.03

SPRING, GEAR SHIFT CAM

25355-01H00

$5.10

BOLT (6X14.3)

09111-06041

$2.61

WASHER

08211-06141

$1.59

SHAFT, GEAR SHIFT

25510-47H00

Unavailable

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

STOPPER, GEAR SHIFT ARM

25671-01011

$4.48

WASHER (14X29X0.8) | LH

09160-14016

$1.93

SHIM (14X24X1)

09181-14195

$2.71

BEARING (14X20X12)

09263-14027

$13.52

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

SPRING, GEAR SHIFT PLATE

25518-01H00

$3.70

SPRING

09444-20001

$5.24

WASHER, GEAR SHIFT SHAFT END

25519-01H00

$5.98

SCREW (6X16)

09126-06014

$2.06

CIRCLIP

08331-3114A

$1.91

ARM,GEAR SHIFT This part replaces 25520-01H00.

25520-01H01

$45.52

ROD, GEAR SHIFT LINK

25525-01H00

$31.40

LEVER ASSY,GEAR This part replaces 25600-47H00.

25600-47H01

$138.27

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.44

BOLT

01547-0625A

$2.01

NUT

09140-06025

$2.05

NUT

09140-06020

$2.02

SHAFT, GEAR SHIFT LEVER

25617-03F10

$12.33

BRACKET, GEAR SHIFT LEVER

25681-47H01

Unavailable

BOLT (8X20)

09106-08167

$3.35

WASHER (12.5X20X1)

09160-12011

$1.54

CIRCLIP

08331-3112A

$1.78

SENSOR ASSY,GEAR POSITION This part replaces 37730-14J00.

37730-14J01

$73.86

BOLT (5X16)

09106-05023

$2.92

O RING (D:2.4,ID:26.2)

09280-26005

$2.30
