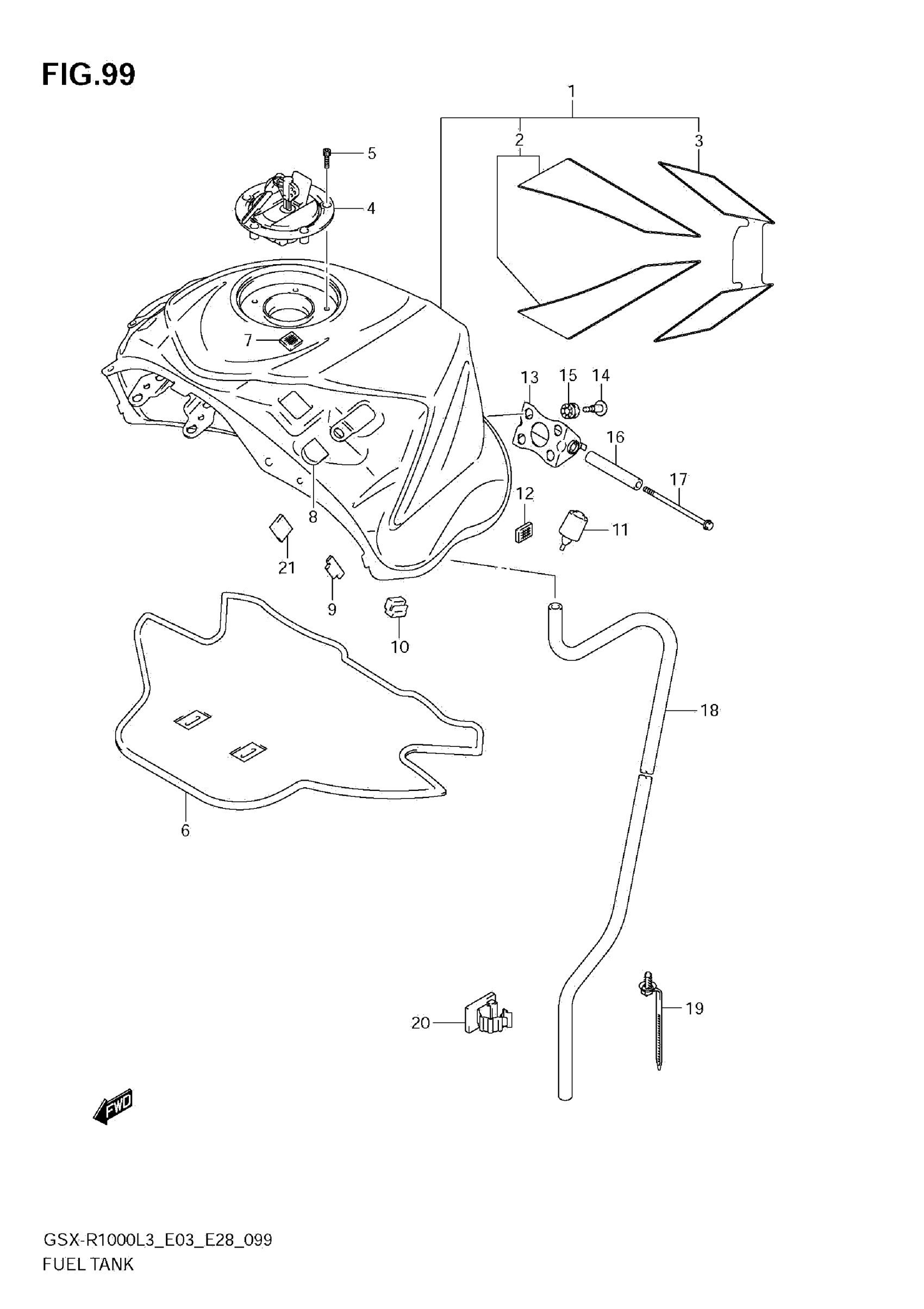

Suzuki GSX-R1000L3 (2013) FUEL TANK (GSX-R1000ZL3 E33) Diagram

TANK ASSY, FUEL (WHITE)

44100-47HC0-YWW

Unavailable

TAPE SET, FUEL TANK (BLUE/WHITE)

68110-47H00-AKM

$49.00

TAPE, FUEL TANK CTR (WHITE/BLUE)

68111-47H00-AKE

$65.02

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

BOLT (5X20)

09106-05017

$2.83

SHIELD, FUEL TANK HEAT

44191-47H00

Unavailable

FASTENER, COVER FRONT

44572-44G00

$10.18

CUSHION

09329-18001

$1.91

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

CUSHION,FUEL TANK RR

44542-41G00

$7.69

FASTENER, COVER SIDE

44572-13G00

$11.07

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$40.55

SCREW (6X22)

09139-06191

$4.03

CUSHION

09320-08071

$3.25

SPACER, JOINT

44561-18G00

$16.96

BOLT (6X110)

09106-06119

$5.76

HOSE, DRAIN

44423-47H00

Unavailable

CLAMP (L:154)

09407-17403

$4.91

CLAMP

09403-14311

$5.33

CUSHION

61544-94500

$1.68
