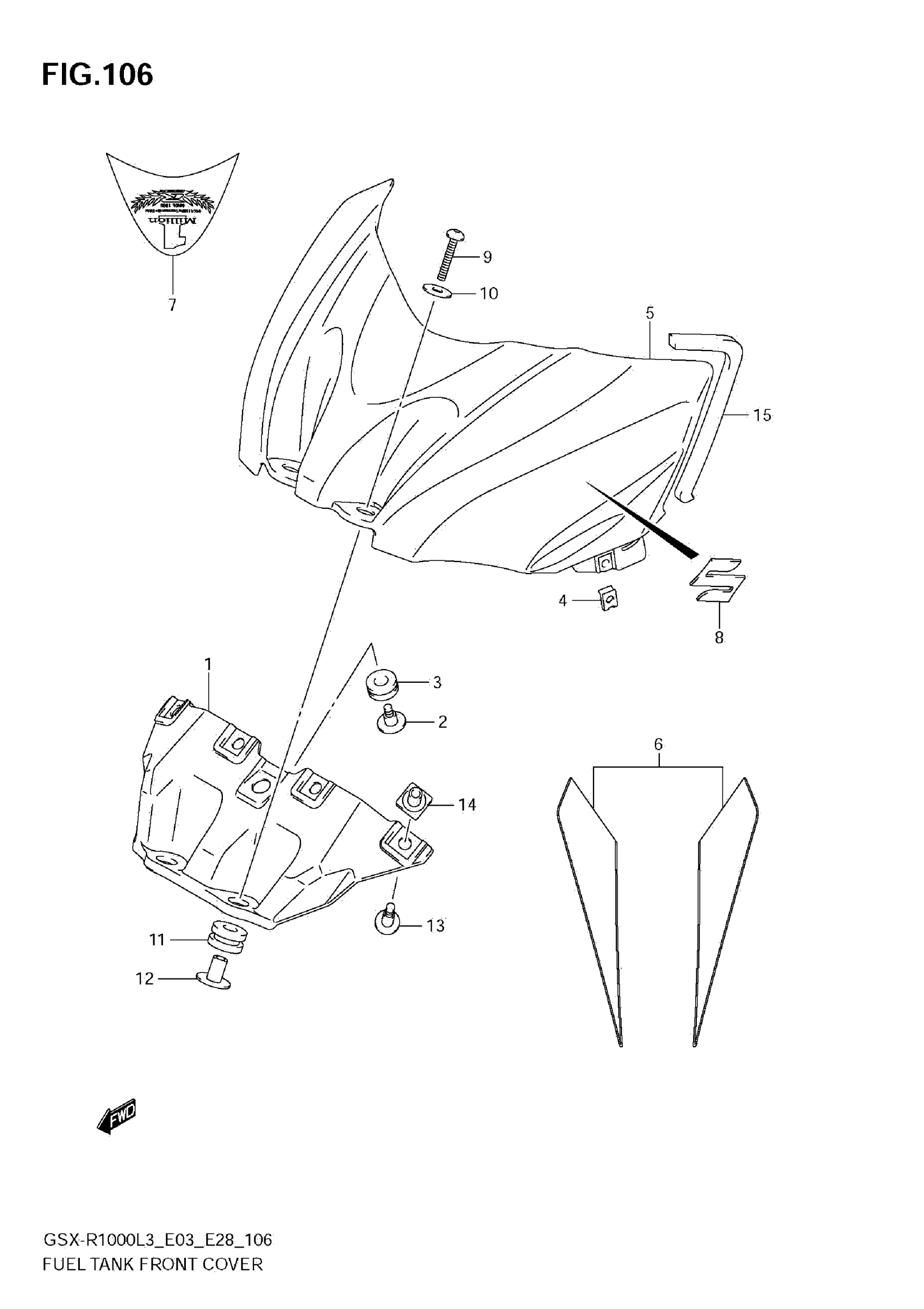

Suzuki GSX-R1000L3 (2013) FUEL TANK FRONT COVER (GSX-R1000ZL3 E28) Diagram

#

Description
Price

1

BRACKET, FRONT

44521-47H00

Unavailable

2

SCREW (5X16.4)

09139-05078

$3.19

3

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

4

NUT

09148-05052

$3.04

5

COVER, FRONT (WHITE)

44290-47H00-YWW

$346.63

6

TAPE SET, FUEL TANK COVER (WHITE/BLUE)

68120-47H00-AKF

$24.50

7

TAPE, FUEL TANK COVER CTR (1 MILLION)

68121-47H00-PKK

$45.97

8

EMBLEM "S"

68111-18G20

$29.56

9

SCREW (6X40)

09139-06105

$7.98

10

WASHER This part replaces 09160-06012.

09160-06054

$1.62

11

CUSHION (10X22X13)

09320-10050

$3.07

12

SPACER

44512-47H00

$14.47

13

SCREW (6X10)

09139-06181

$3.52

14

NUT

44523-47H00

$13.30

15

CUSHION

44277-37H00

$6.87
