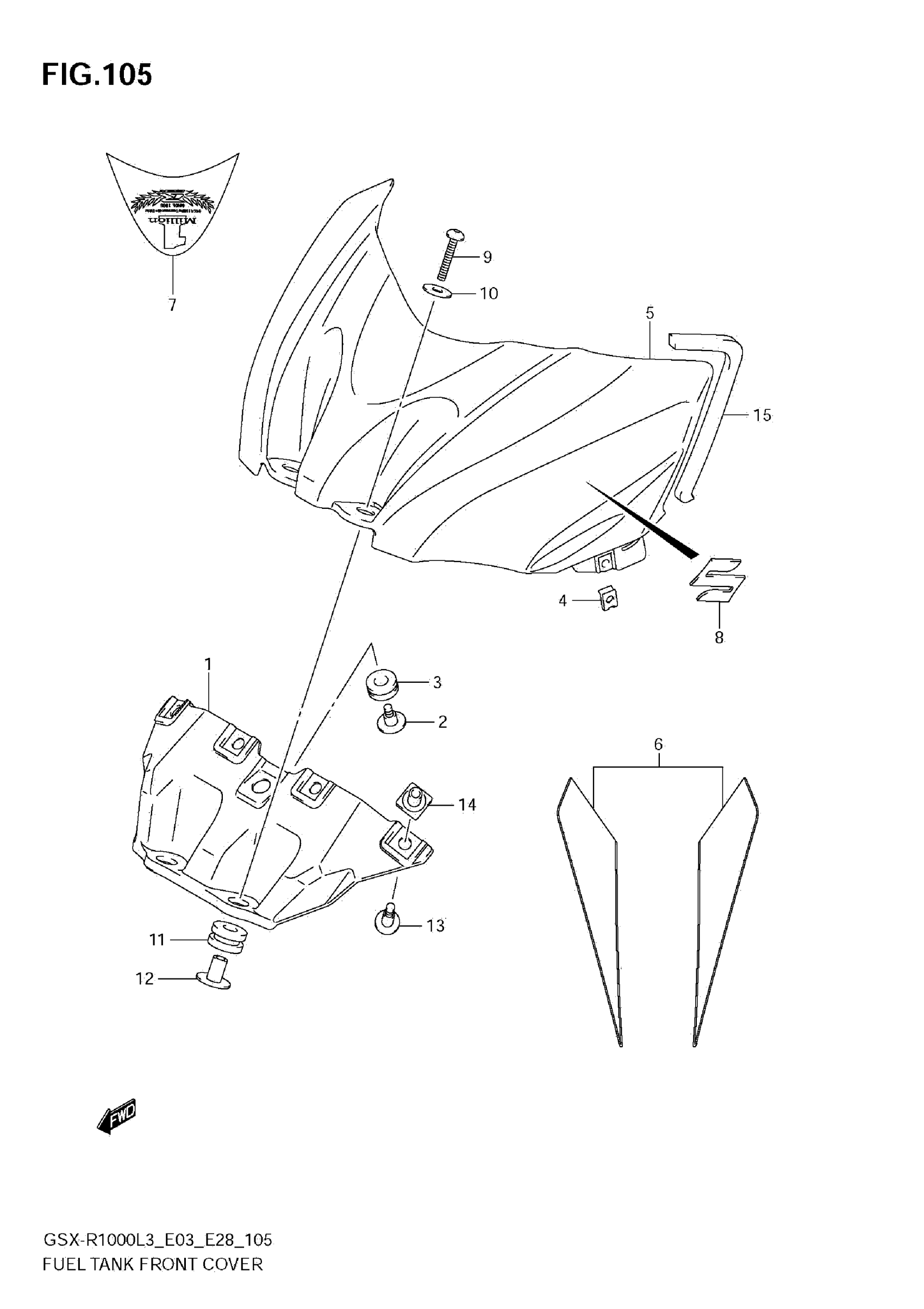

Suzuki GSX-R1000L3 (2013) FUEL TANK FRONT COVER (GSX-R1000ZL3 E03) Diagram

#

Description
Price

1

BRACKET, FRONT

44521-47H00

Unavailable

2

SCREW (5X16.4)

09139-05078

$3.49

3

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

4

NUT

09148-05052

$3.37

5

COVER, FRONT (WHITE)

44290-47H00-YWW

$311.50

6

TAPE SET, FUEL TANK COVER (WHITE/BLUE)

68120-47H00-AKF

$33.55

7

TAPE, FUEL TANK COVER CTR (1 MILLION)

68121-47H00-PKK

$40.73

8

EMBLEM "S"

68111-18G20

$32.30

9

SCREW (6X40)

09139-06105

$7.35

10

WASHER This part replaces 09160-06012.

09160-06054

$1.62

11

CUSHION (10X22X13)

09320-10050

$3.35

12

SPACER

44512-47H00

$12.82

13

SCREW (6X10)

09139-06181

$3.83

14

NUT

44523-47H00

$10.02

15

CUSHION

44277-37H00

$5.18
