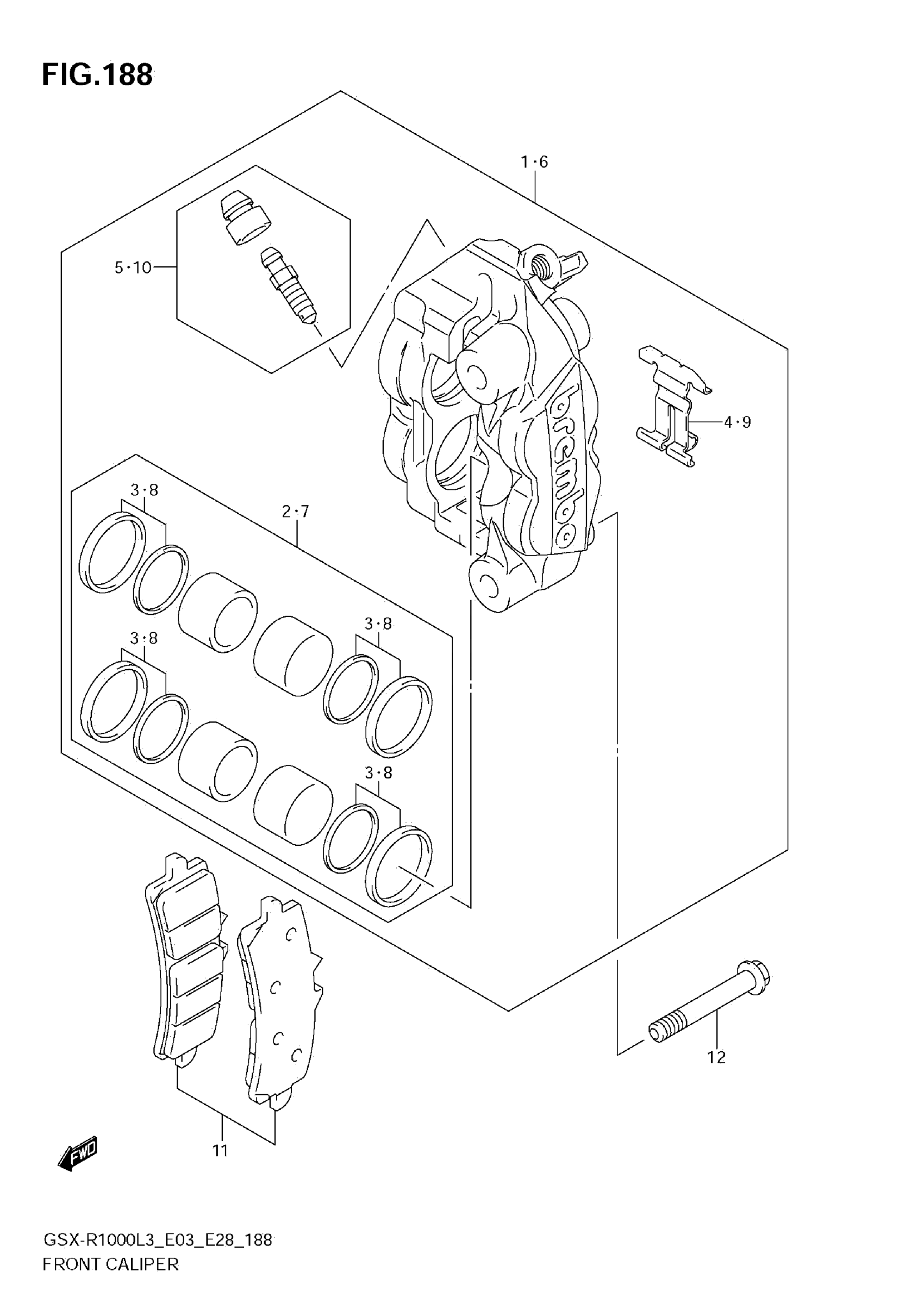

Suzuki GSX-R1000L3 (2013) FRONT CALIPER (GSX-R1000ZL3 E28) Diagram

#

Description

Price

1

CALIPER ASSY, FRONT RH

59100-14J30-999

$636.50

2

PISTON SET

59100-14810

$93.32

3

SEAL SET, PISTON

59100-14820

$57.99

4

SPRING, PAD

59151-14J00

$22.06

5

BLEEDER SET

59100-14840

$23.74

6

CALIPER ASSY, FRONT LH

59300-14J30-999

Unavailable

7

PISTON SET

59100-14810

$93.32

8

SEAL SET, PISTON

59100-14820

$57.99

9

SPRING, PAD

59151-14J00

$22.06

10

BLEEDER SET

59100-14840

$23.74

11

PAD (T4.0)

59100-14850

$54.33

12

BOLT (10X70)

09103-10429

$13.88
