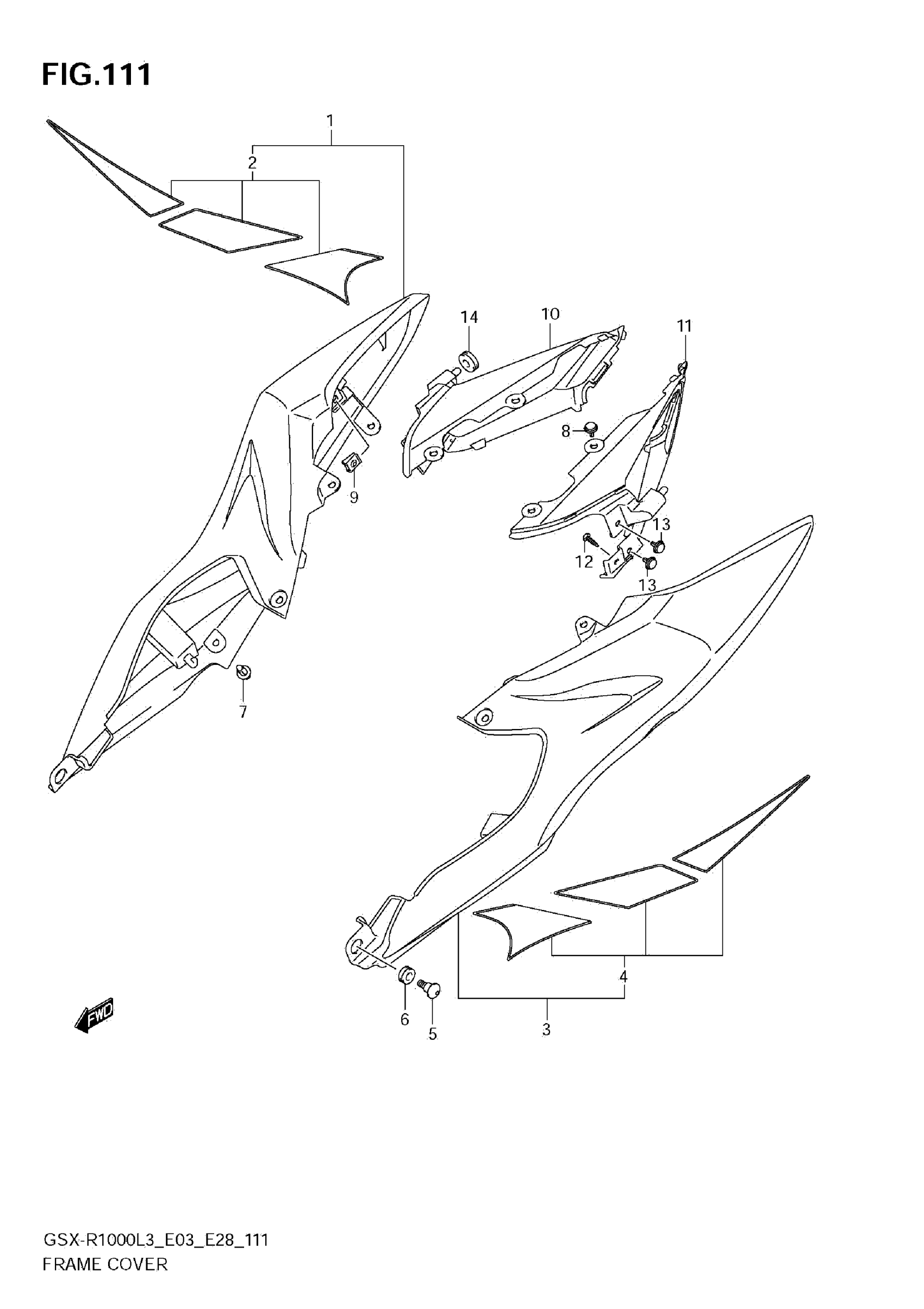

Suzuki GSX-R1000L3 (2013) FRAME COVER (GSX-R1000ZL3 E03) Diagram

COVER, FRAME RH (WHITE)

47110-47HA0-YWW

$230.63

TAPE SET, FRAME COVER RH (WHITE/BLUE)

68130-47H00-AKG

$58.97

COVER, FRAME LH (WHITE)

47210-47HA0-YWW

$234.98

TAPE SET, FRAME COVER LH (WHITE/BLUE)

68140-47H00-AKG

$58.97

SCREW, FRONT

47133-43H00

$7.98

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

CLIP (BLACK)

09409-06314-5PK

$2.80

CLIP

09409-06328

$2.92

NUT

09148-05038

$1.97

COVER, FRAME REAR RH (RED)

47611-47H00-YVZ

$119.50

COVER, FRAME REAR LH (RED)

47621-47H00-YVZ

$121.77

SCREW

03541-0512A

$1.37

CLIP

09409-06328

$2.92

CUSHION

09320-06504

$4.47
