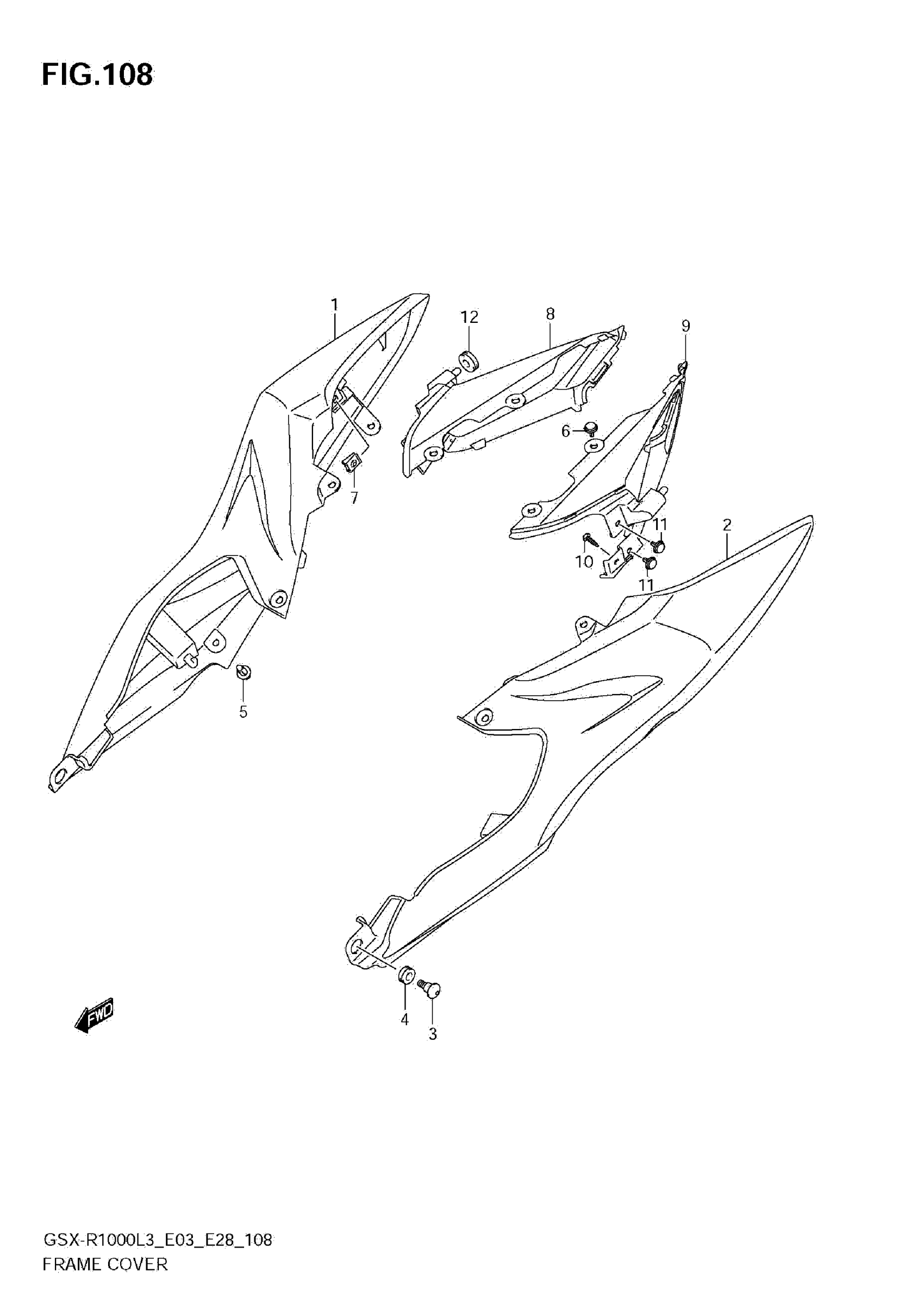

Suzuki GSX-R1000L3 (2013) FRAME COVER (GSX-R1000L3 E03) Diagram

COVER, FRAME RH (WHITE) | FOR GLR

47111-47H00-YBD

$192.60

COVER, FRAME RH (BLACK) | FOR KGL

47111-47H00-YKV

$189.03

COVER, FRAME LH (WHITE) | FOR GLR

47211-47H00-YBD

$196.23

COVER, FRAME LH (BLACK) | FOR KGL

47211-47H00-YKV

$192.60

SCREW, FRONT

47133-43H00

$6.03

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

CLIP (BLACK)

09409-06314-5PK

$2.78

CLIP

09409-06328

$3.23

NUT

09148-05038

$1.97

COVER, FRAME REAR RH (BLUE) | FOR GLR

47611-47H00-YUA

$105.27

COVER, FRAME REAR RH (SILVER) | FOR KGL

47611-47H00-YMC

$113.68

COVER, FRAME REAR LH (BLUE) | FOR GLR

47621-47H00-YUA

$113.68

COVER, FRAME REAR LH (SILVER) | FOR KGL

47621-47H00-YMC

$113.68

SCREW

03541-0512A

$1.49

CLIP

09409-06328

$3.23

CUSHION

09320-06504

$4.96
