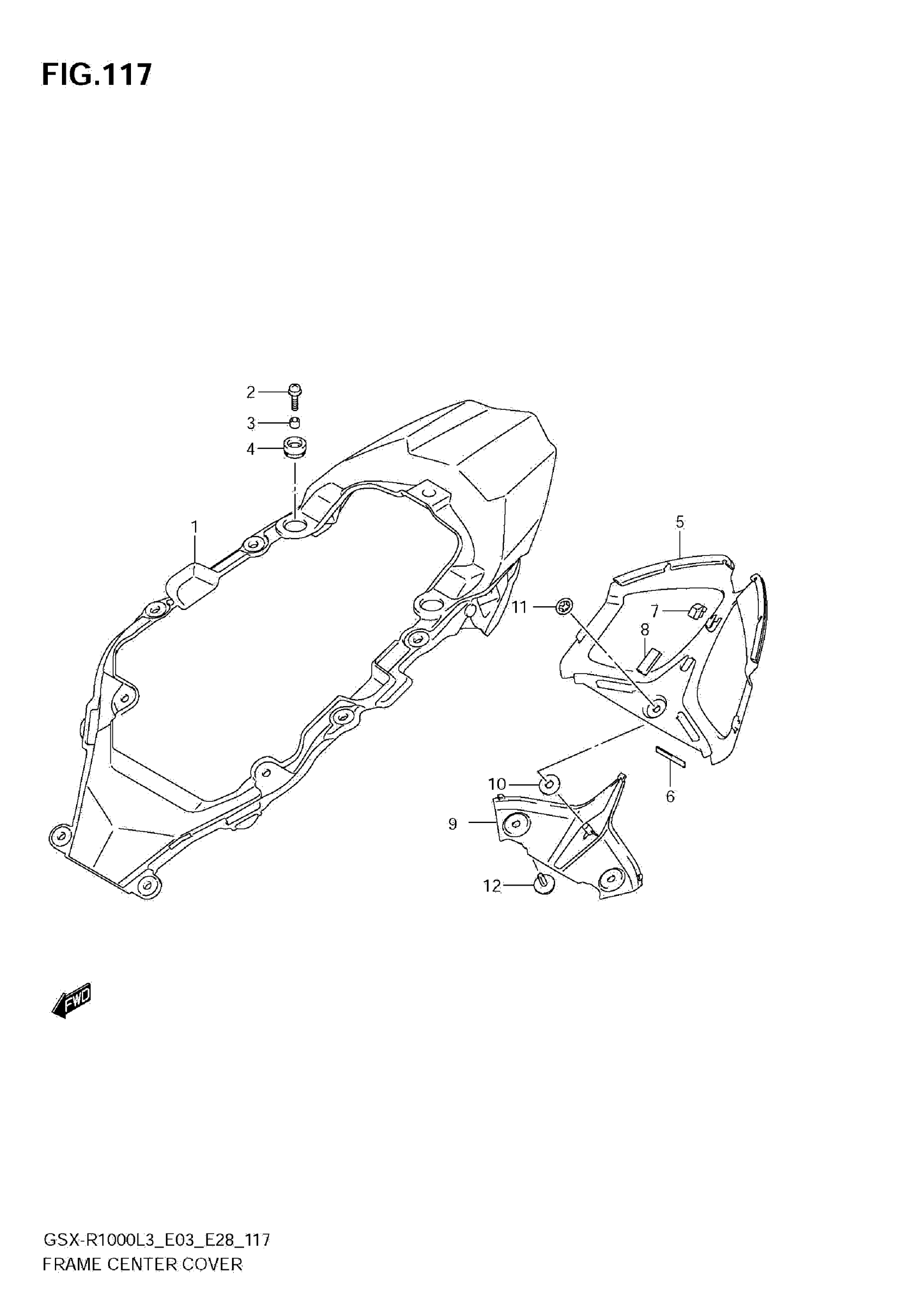

Suzuki GSX-R1000L3 (2013) FRAME CENTER COVER (GSX-R1000ZL3 E03) Diagram

#

Description
Price

1

COVER, FRAME CENTER (WHITE)

47310-47H00-YWW

$335.18

2

SCREW (6X16)

09136-06056

$2.17

3

SPACER (6.5X10X7)

09180-06283

$1.89

4

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

5

COVER, REAR CENTER (RED)

47911-47H00-YVZ

$104.03

6

CUSHION

47912-47H00

$6.01

7

CUSHION

47913-37H00

$6.23

8

CUSHION

94413-08F00

$5.02

9

COVER, REAR LOWER (WHITE)

47921-47H00-YWW

$93.98

10

CUSHION

09320-06501

$3.92

11

NUT This part replaces 09148-05006.

09148-05012

$1.77

12

CLIP

09409-06328

$2.92
