Description

Price

1

HEAD ASSY, CYLINDER

11100-47H10

Unavailable

2

BOLT (6X40)

09103-06266

$2.13

3

PIN (6.2X8X16)

09206-08007

$2.62

4

GUIDE, VALVE (OS 0.3) | OPT

11115-29G70

$30.95

5

GASKET, CYLINDER HEAD

11141-47H01

$85.10

6

PIN

04211-11169

$1.77

7

BOLT CYLINDER HEAD L105

11117-30G00

$8.52

8

BOLT (6X12)

09103-06222

$2.28

9

BOLT

07120-0650A

$2.90

10

GASKET (5.8X13X1.2)

09168-06023

$2.01

11

SPARK PLUG (CR9EIA-9) | NGK

09482-00558

$10.79

11

SPARK PLUG (IU27D) | DENSO

09482-00557

$15.20

11

SPARK PLUG (CR8EIA-9) | OPT NGK

09482-00556

$9.65

11

SPARK PLUG (CR10EIA-9) | OPT NGK

09482-00560

$9.93

11

SPARK PLUG (IU24D) | OPT DENSO

09482-00555

$16.44

11

SPARK PLUG (IU31D) | OPT DENSO

09482-00559

$21.92

12

PIPE ASSY,INTAKE This part replaces 13101-47H00.

13101-47H01

$62.70

13

O RING (D:2.4,ID:47.2)

09280-48010

$8.84

14

CLAMP

13170-47H00

Unavailable

15

SCREW

02122-0616B

$1.98

16

O RING (D:1.2,ID:4)

09280-04004

$1.76

17

JET, OIL GALY (16)

09493-32006

$18.33

18

PLUG (16X8)

09248-16012

$4.19

19

GASKET (16X22X0.8)

09168-16009

$2.50

20

SENSOR, WATER TEMPERATURE

13650-49X00

$82.56

21

GASKET (12X17X1)

09168-12017

$1.97

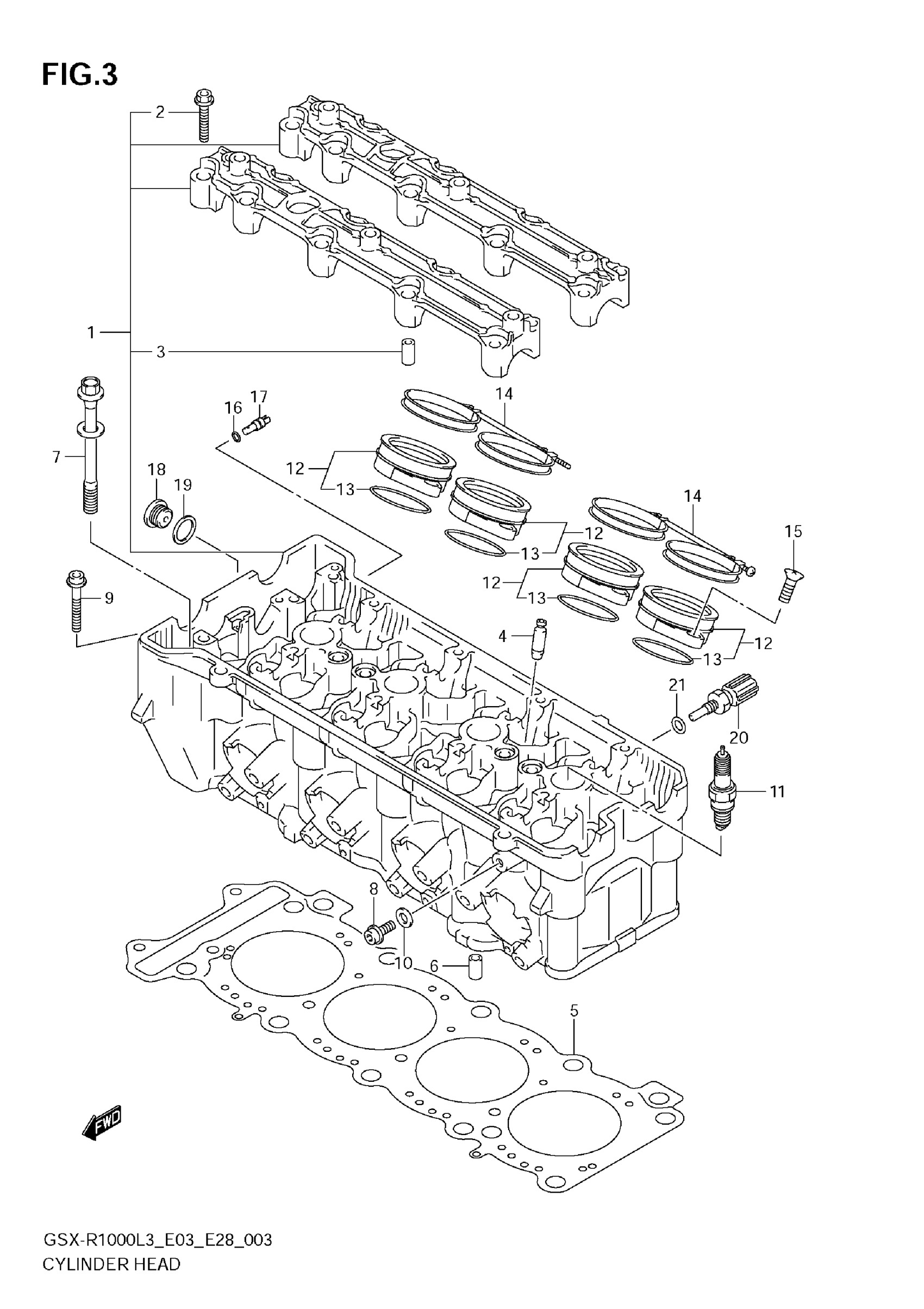

Suzuki GSX-R1000L3 (2013) CYLINDER HEAD Diagram
