2013 Suzuki GSX-R1000L3 Crankcase Diagram

← All diagrams

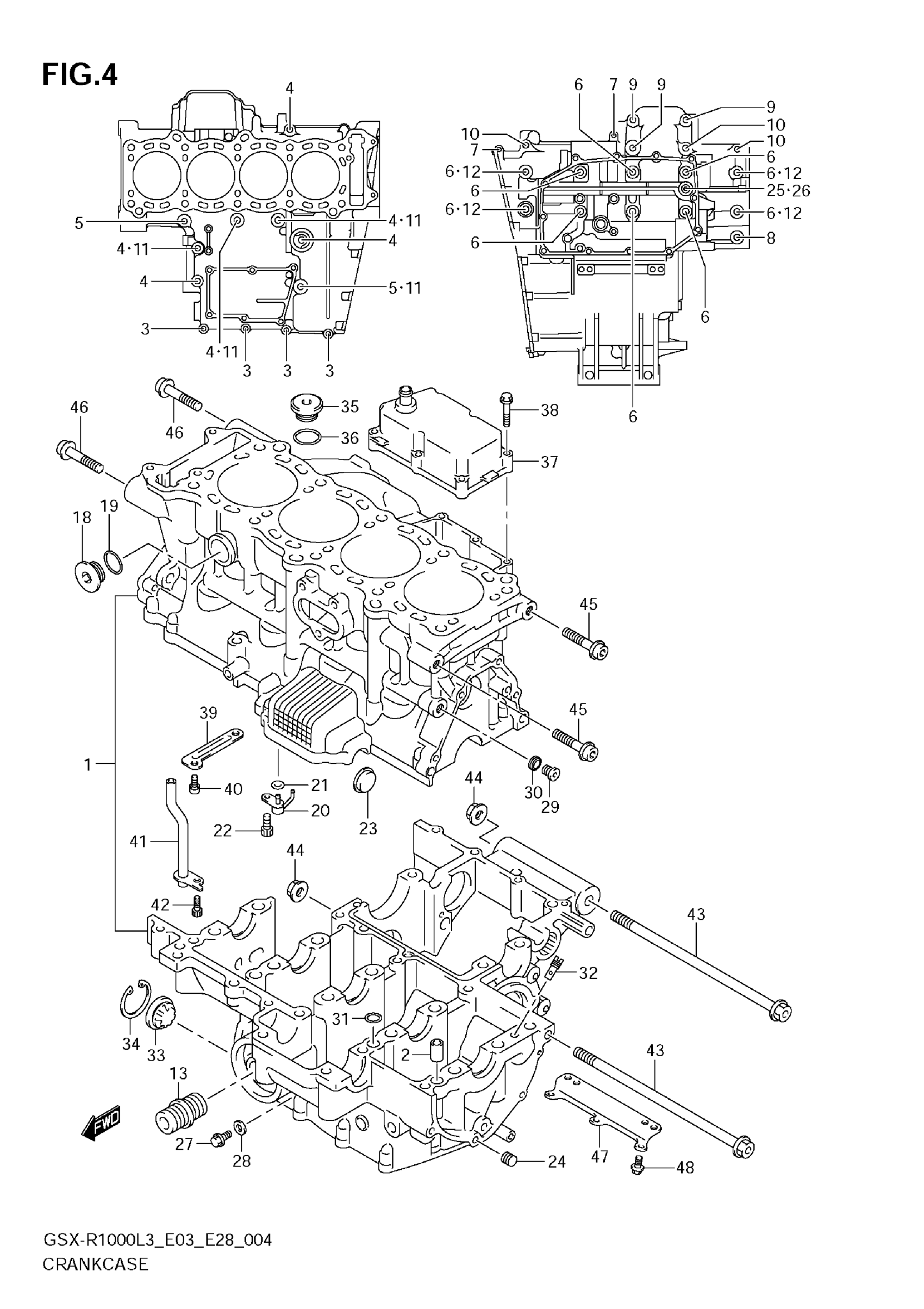

Find the part on the Crankcase diagram for your 2013 Suzuki GSX-R1000L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki GSX-R1000L3 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11300-47890

1

$5,614.87

In stock

2

PIN,CRANKCASE

11319-33E50

3

$5.45

In stock

3

BOLT

01547-0635A

4
Out of stock

4

.BOLT

01550-0855A

6

$3.02

In stock

5

BOLT

01550-0865A

2

$3.46

In stock

6

BOLT (9X95)

09103-09012

10

$8.52

In stock

7

BOLT

01547-0645A

2
Out of stock

8

BOLT (8X35)

01550-0835A

1
Out of stock

9

.BOLT

01550-0855A

3

$3.02

In stock

10

BOLT

01550-0865A

3

$3.46

In stock

11

GASKET (8.2X14X1)

09168-08016

4
Out of stock

12

.GASKET (10.2X20X2.3)

09168-10031

4

$2.18

In stock

13

UNION,OIL STAND

16591-06B01

1
Out of stock

14

1

$52.62

In stock

15

6

$4.48

In stock

16

1

$9.58

In stock

17

1

$13.05

In stock

17

1

$12.82

In stock

17

1

$13.30

In stock

17

1

$9.58

In stock

17

1

$13.30

In stock

17

1

$13.30

In stock

17

1

$12.82

In stock

18

PLUG, WATER JACKET

11318-35F00

3

$18.93

In stock

19

3

$2.06

In stock

20

4

$48.75

In stock

21

O RING (D:1.2,ID:4)

09280-04004

4

$2.03

In stock

22

BOLT (6X12)

09106-06075

4
Out of stock

23

PLUG

09241-23005

1

$13.52

In stock

24

1

$4.62

In stock

25

PLUG (L:12)

09248-12004

1
Out of stock

26

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

27

BOLT

01547-0612A

1
Out of stock

28

GASKET (6.2X13X1.2)

09168-06018

1
Out of stock

29

PLUG (10X10)

09248-10010

1
Out of stock

30

GASKET (10X14X3.6)

09168-10002

1

$2.27

In stock

31

O RING (D:1.9,ID:7.8)

09280-08012

2

$3.56

In stock

32

JET, 140

09493-28012

1
Out of stock

33

LENS, OIL LEVEL

11971-33210

1

$18.15

In stock

34

.CIRCLIP

08331-4130A

1

$2.95

In stock

35

PLUG (26X9)

09259-26011

1

$10.69

In stock

36

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

37

COVER, BREATHER

11380-47H00

1

$158.90

In stock

38

BOLT

01547-0630A

6

$2.48

In stock

39

PLATE, BREATHER OIL RETURN

11382-47H00

1
Out of stock

40

BOLT (6X12)

09106-06075

2
Out of stock

41

PIPE, BREATHER OIL RETURN

11383-47H00

1
Out of stock

42

BOLT

07130-0612A

1
Out of stock

43

BOLT (12X220)

09103-12110

2

$30.30

In stock

44

NUT

09159-12054

2

$9.50

In stock

45

BOLT (10X45)

09106-10089

2

$16.43

In stock

46

BOLT (10X55)

09106-10090

2

$20.32

In stock

47

PLATE, LOWER

11322-47H00

1
Out of stock

48

BOLT (6X10)

09103-06188

4

$3.17

In stock
