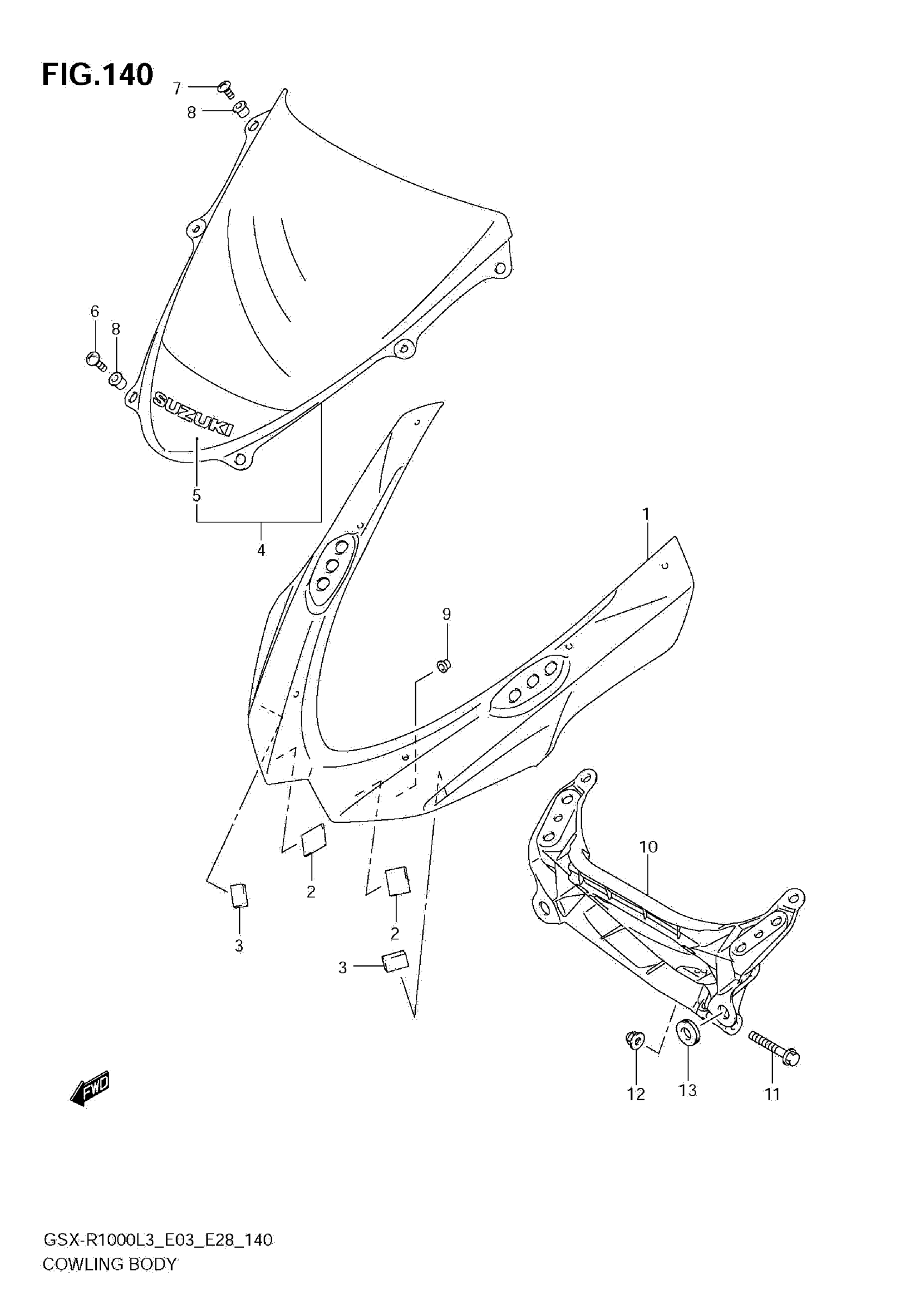

Suzuki GSX-R1000L3 (2013) COWLING BODY (GSX-R1000ZL3 E28) Diagram

#

Description
Price

1

BODY,COWLING This part replaces 94411-47H00-YWW.

94411-47H01-YWW

$260.48

2

CUSHION, FRONT

44572-02F01

$11.07

3

CUSHION, SIDE

44572-37H00

$9.83

4

WINDSCREEN

64310-47H00

$114.15

5

TAPE

68275-47H00

$41.77

6

SCREW (5X18)

09125-05133

$2.19

7

SCREW (5X15)

09125-05134

$2.22

8

NUT

09159-05019

$7.14

9

CUSHION This part replaces 09320-05018.

09320-05022

$2.63

10

BRACE, COWLING

94511-47H00

$374.93

11

BOLT

01550-0845A

$3.14

12

NUT

08313-2008A

$2.50

13

CUSHION

09320-08028

$3.04
