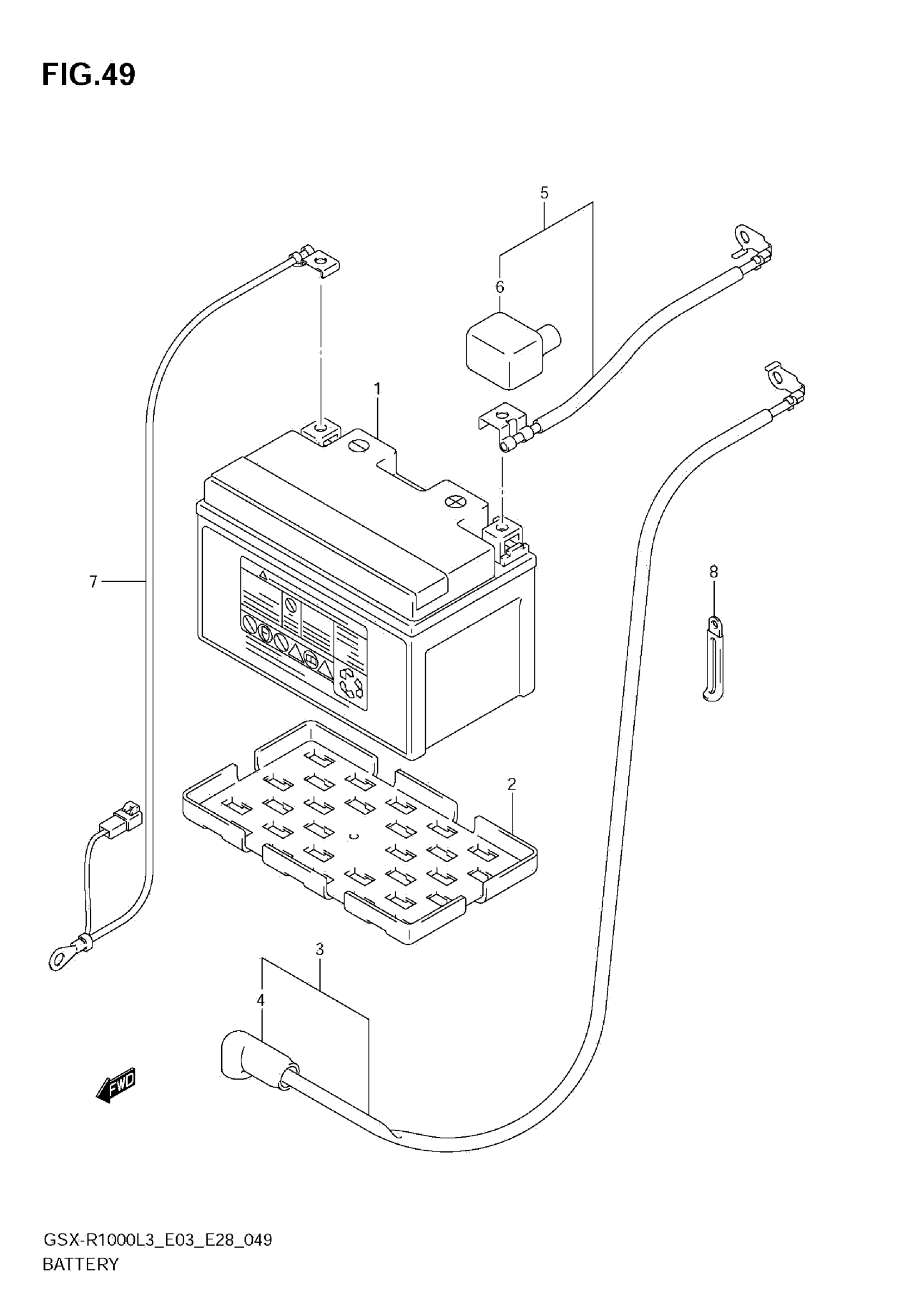

Suzuki GSX-R1000L3 (2013) BATTERY (GSX-R1000L3 E28) Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS, 12V10AH)

33610-14G11

$142.85

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

WIRE,STARTER MO This part replaces 33810-47H10.

33810-47H11

$37.26

4

CAP

36618-43410

$3.28

5

WIRE,BATTERY PL This part replaces 33820-47H10.

33820-47H11

$27.47

6

CAP, BATTERY PLUS

33624-16G00

$5.44

7

WIRE,BATTERY MI This part replaces 33860-47H10.

33860-47H11

$42.67

8

CLAMP (L:45)

09404-06429

$1.82
