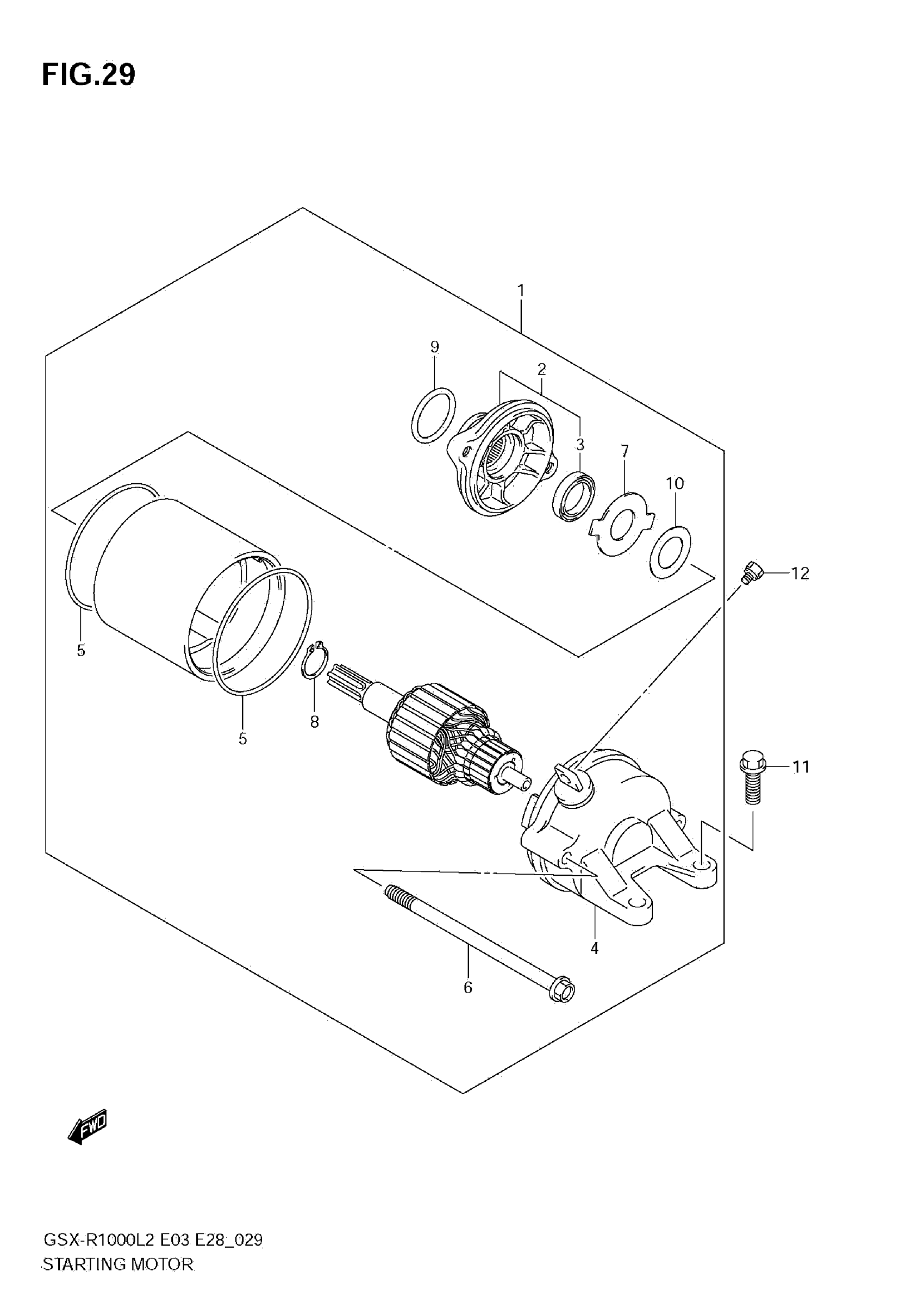

Suzuki GSX-R1000L2 (2012) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-47H00

$833.22

2

HOUSING ASSY

31150-40F01

Unavailable

3

OIL SEAL

31153-49210

$24.20

4

FRAME ASSY

31175-40F01

$151.08

5

O RING

31264-32C10

$14.20

6

BOLT

31281-40F00

Unavailable

7

PLATE, LOCK

31361-32C10

Unavailable

8

RING, SNAP

31361-10200

Unavailable

9

O RING | COLOR:BROWN

31156-40F01

$12.23

10

SHIM

31361-38300

Unavailable

11

BOLT (6X20)

09103-06223

$2.47

12

SCREW (5X8)

09137-05004

$2.17
