2012 Suzuki GSX-R1000L2 Seat Diagram

← All diagrams

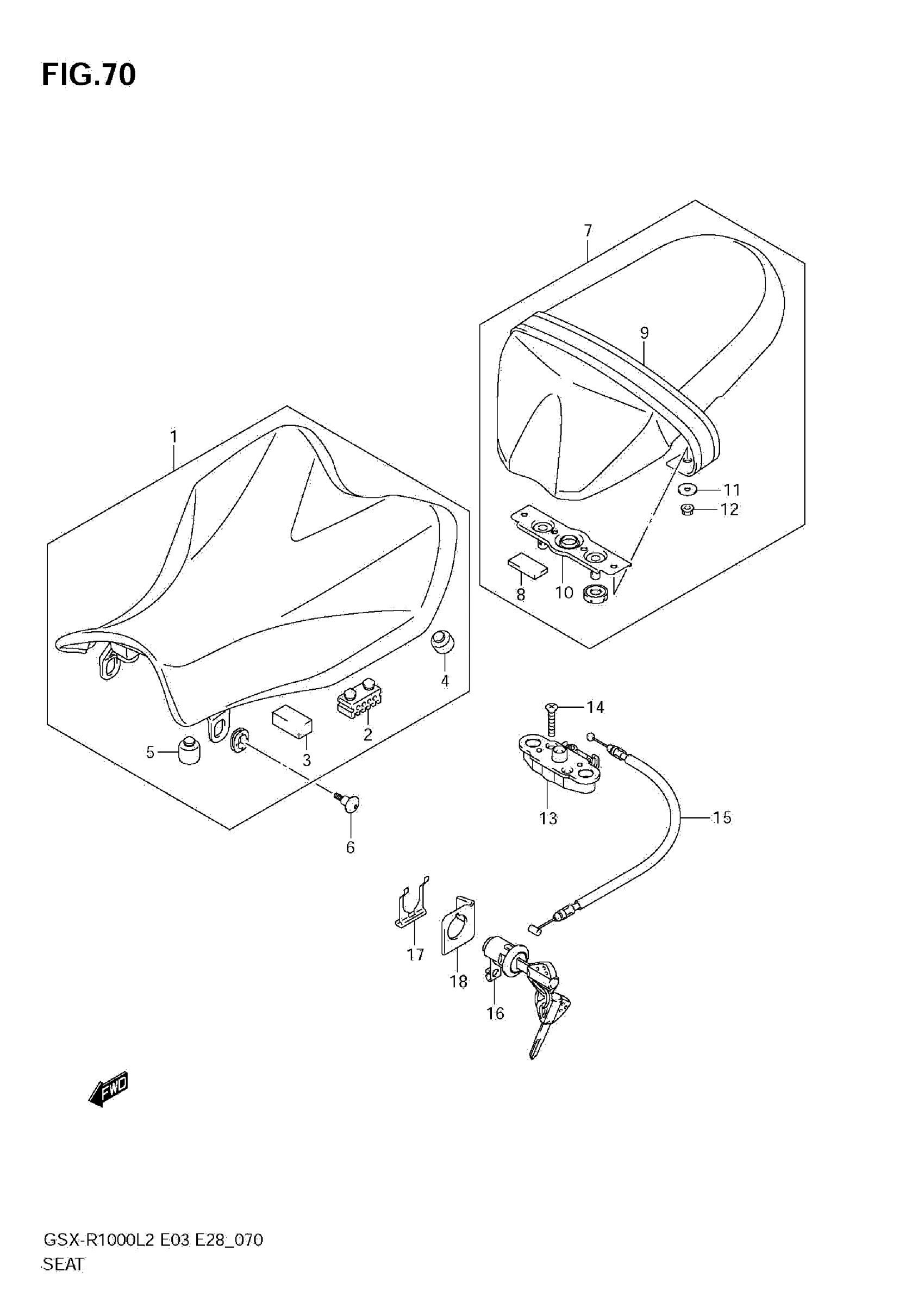

Find the part on the Seat diagram for your 2012 Suzuki GSX-R1000L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX-R1000L2 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY This part replaces 45100-47H10-DW2.

45100-47H11-DW2

1
Out of stock

2

CUSHION, SIDE

45149-19D00

2
Out of stock

3

CUSHION, FRONT (20X40X15)

45149-31E00

1
Out of stock

4

CUSHION

09321-10011

2
Out of stock

5

CUSHION

09321-10034

2
Out of stock

6

BOLT (6X20)

09139-06190

2
Out of stock

7

SEAT ASSY,PILLI This part replaces 45300-47H10-P3H.

45300-47H11-P3H

1
Out of stock

8

CUSHION, FRONT (20X40X15)

45149-31E00

1
Out of stock

9

BAND ASSY, SEAT (BLACK)

45180-47H00-P3H

1
Out of stock

10

.STRIKER This part replaces 45290-47H00.

45290-47H01

1
Out of stock

11

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

12

NUT

08316-1006A

2
Out of stock

13

BRACKET, SEAT SUPPORT

45220-47H00

1
Out of stock

14

SCREW

02122-0630A

2
Out of stock

15

CABLE, SEAT LOCK

45280-47H00

1
Out of stock

16

LOCK SET, SEAT

95700-14810

1
Out of stock

17

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock

18

GUIDE, SEAT LOCK CABLE

45288-14F00

1
Out of stock
