2012 Suzuki GSX-R1000L2 Frame Cover Diagram

← All diagrams

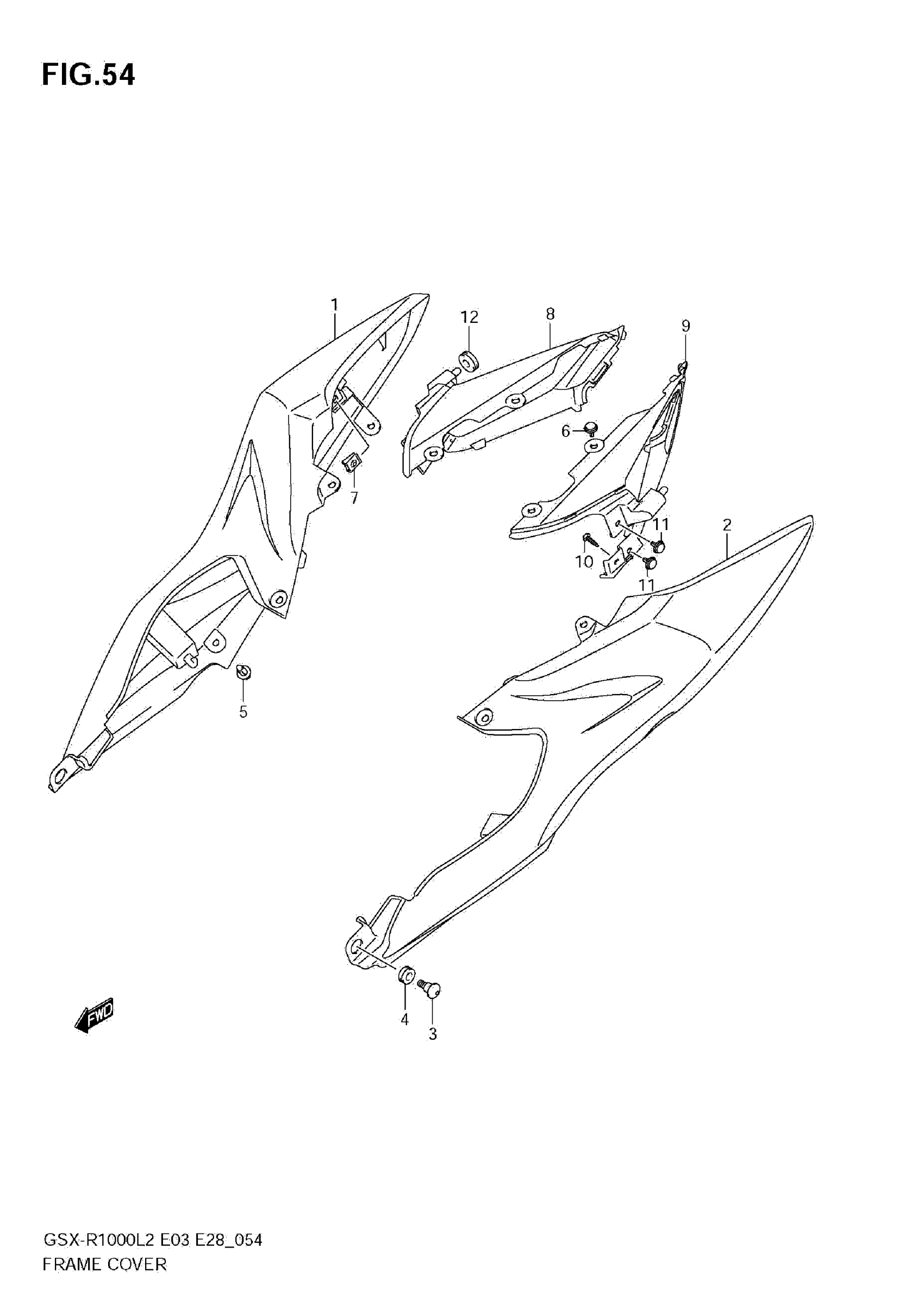

Find the part on the Frame Cover diagram for your 2012 Suzuki GSX-R1000L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX-R1000L2 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (WHITE) | FOR GLR

47111-47H00-YBD

1
Out of stock

1

COVER, FRAME RH (BLACK) | FOR KGL

47111-47H00-YKV

1
Out of stock

2

COVER, FRAME LH (WHITE) | FOR GLR

47211-47H00-YBD

1
Out of stock

2

COVER, FRAME LH (BLACK) | FOR KGL

47211-47H00-YKV

1
Out of stock

3

SCREW, FRONT

47133-43H00

2
Out of stock

4

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock

5

CLIP (BLACK)

09409-06314-5PK

2
Out of stock

6

CLIP

09409-06328

4
Out of stock

7

NUT

09148-05038

2
Out of stock

8

COVER, FRAME REAR RH (BLUE) | FOR GLR

47611-47H00-YUA

1
Out of stock

8

COVER, FRAME REAR RH (GRAY) | FOR KGL

47611-47H00-Y4P

1
Out of stock

9

COVER, FRAME REAR LH (BLUE) | FOR GLR

47621-47H00-YUA

1
Out of stock

9

COVER, FRAME REAR LH (GRAY) | FOR KGL

47621-47H00-Y4P

1
Out of stock

10

SCREW

03541-0512A

2
Out of stock

11

CLIP

09409-06328

4
Out of stock

12

CUSHION

09320-06504

2
Out of stock
