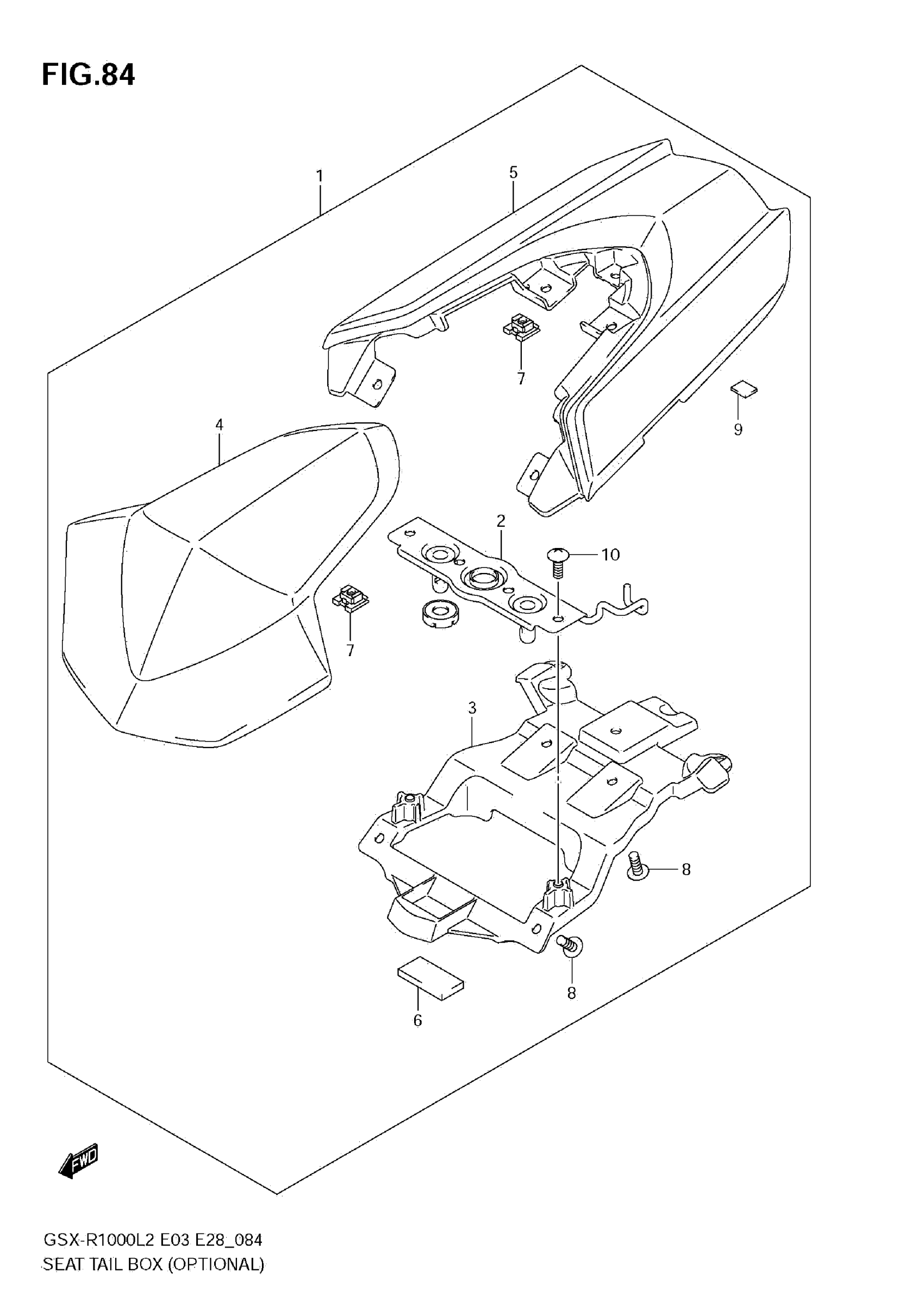

Suzuki GSX-R1000L2 (2012) SEAT TAIL BOX (OPTIONAL) Diagram

BOX, SEAT TAIL (BLUE) | FOR GLR

45550-47H00-ABS

$199.95

BOX, SEAT TAIL (BLACK) | FOR KGL

45550-47H00-YVB

$199.95

STRIKER

45290-47H10

$51.32

FRAME, SEAT TAIL BOX

45553-47H00

$17.12

BOX, SEAT TAIL FR (BLUE) | FOR ABS

45551-47H00-YSF

$127.05

BOX, SEAT TAIL FR (BLACK) | FOR YVB

45551-47H00-YVB

$141.23

BOX, SEAT TAIL RR (BLUE) | FOR ABS

45552-47H00-YUA

Unavailable

BOX, SEAT TAIL RR (BLACK) | FOR YVB

45552-47H00-YVB

$141.23

CUSHION

45149-47H00

$7.05

NUT

09148-06018

$3.16

SCREW

02142-0616A

$1.49

CUSHION

45517-01H00

$5.40

SCREW

03541-0616A

$2.02
