2012 Suzuki GSX-R1000L2 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2012 Suzuki GSX-R1000L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

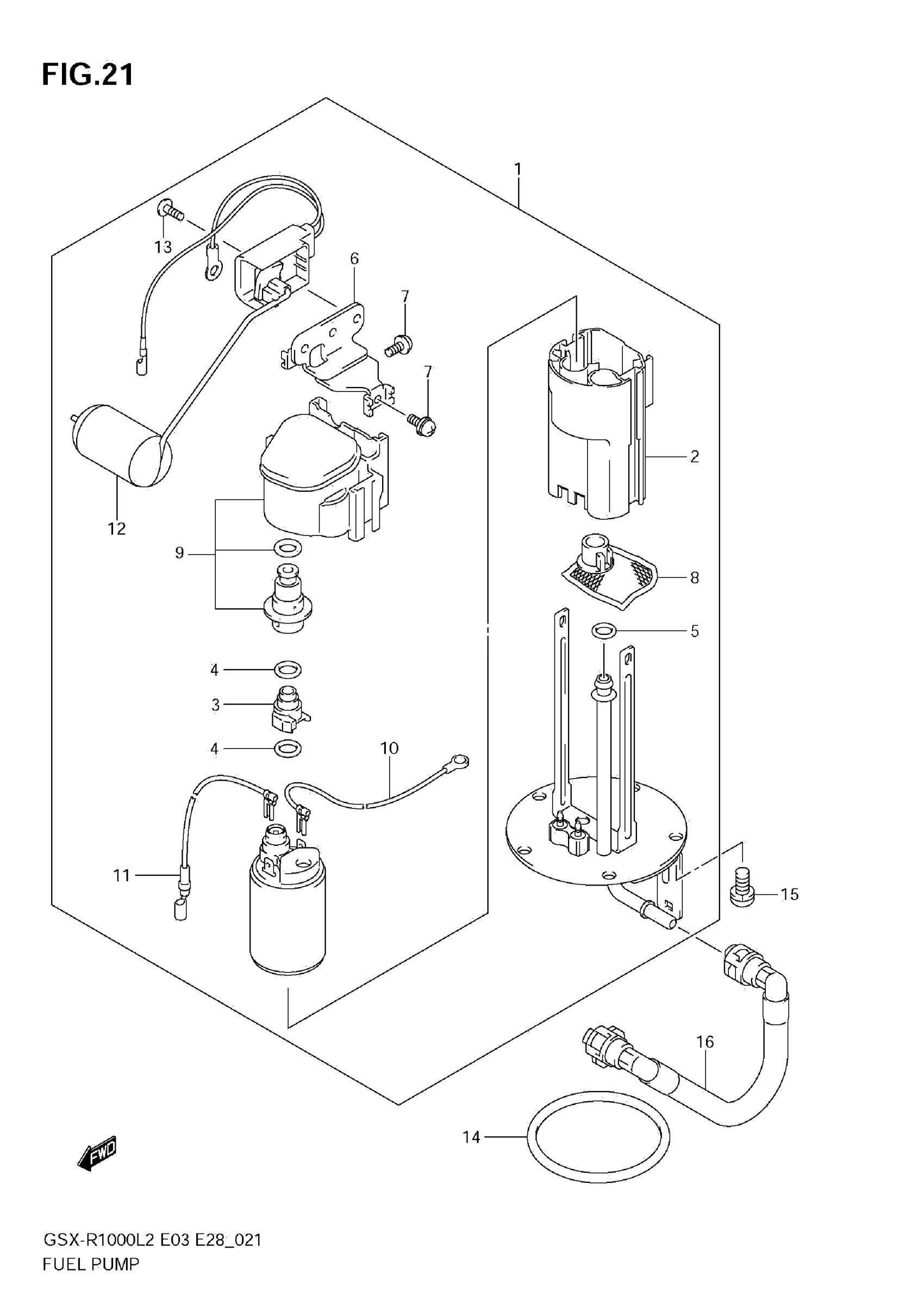

2012 Suzuki GSX-R1000L2 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL This part replaces 15100-47H10.

15100-47H11

1
Out of stock

2

CUP

15111-27G00

1
Out of stock

3

JOINT

15112-05H00

1
Out of stock

4

O RING

15113-05H00

2
Out of stock

5

O RING

15113-35F00

1
Out of stock

6

BRACKET, FUEL GAUGE

15181-47H00

1
Out of stock

7

SCREW

15116-10F00

3
Out of stock

8

STRAINER, FUEL PUMP

15420-05H00

1
Out of stock

9

REGULATOR, FUEL

15610-14J00

1
Out of stock

10

WIRE, EARTH

15114-14J00

1
Out of stock

11

.WIRE,LEAD

15115-08J00

1
Out of stock

12

GAUGE ASSY, FUEL LEVEL

34810-47H01

1
Out of stock

13

SCREW

15116-44H00

1
Out of stock

14

O-RING

15201-35F00

1
Out of stock

15

BOLT

07120-0612A

5
Out of stock

16

HOSE, FUEL

15810-47H10

1
Out of stock
