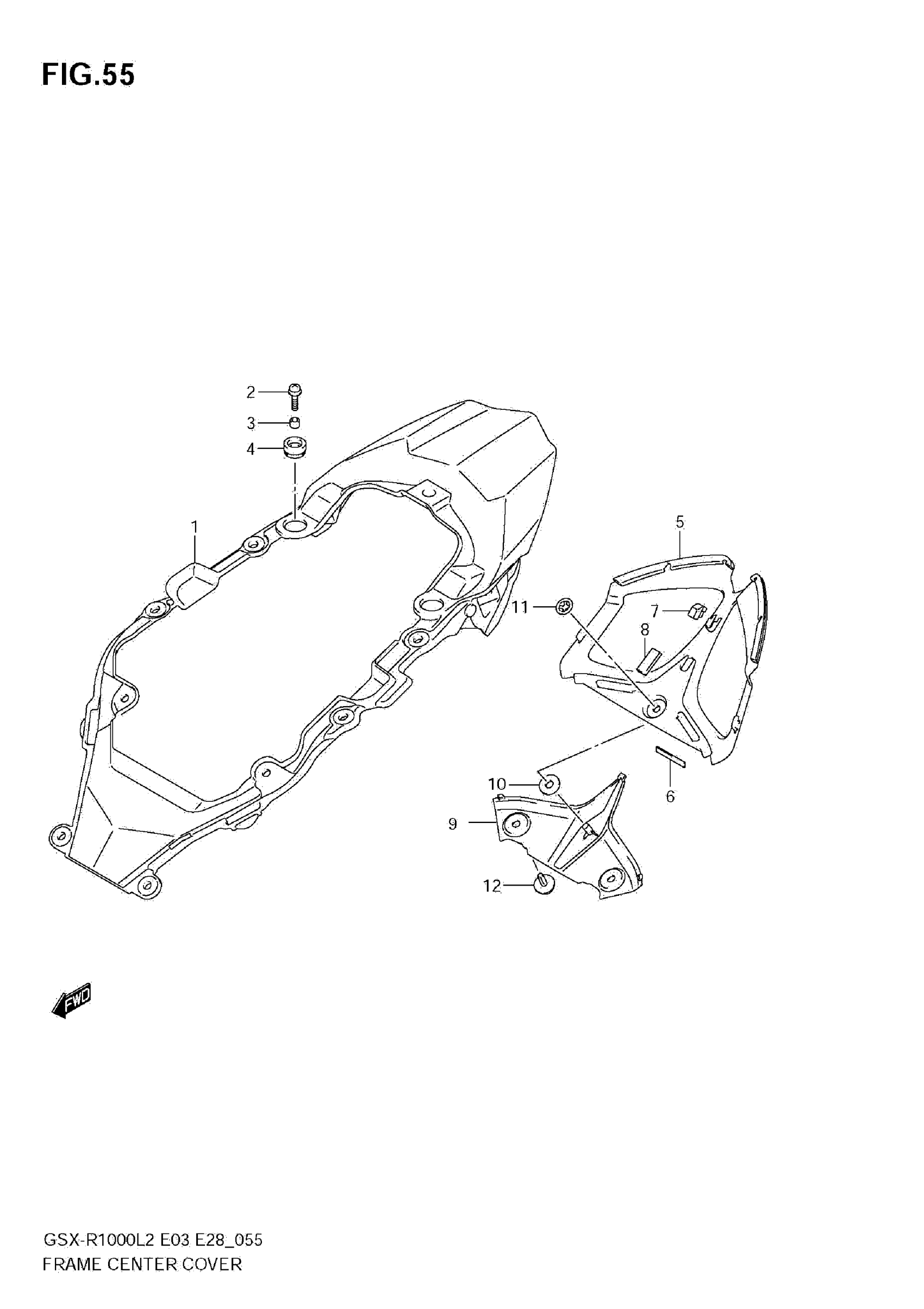

Suzuki GSX-R1000L2 (2012) FRAME CENTER COVER Diagram

#

Description
Price

1

COVER, FRAME CENTER (WHITE) | FOR GLR

47310-47H00-YBD

$352.88

1

COVER, FRAME CENTER (BLACK) | FOR KGL

47310-47H00-YVB

$339.92

2

SCREW (6X16)

09136-06056

$2.19

3

SPACER (6.5X10X7)

09180-06283

$1.91

4

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

5

COVER, REAR CENTER (BLUE) | FOR GLR

47911-47H00-YUA

$98.95

5

COVER, REAR CENTER (GRAY) | FOR KGL

47911-47H00-Y4P

$105.22

6

CUSHION

47912-47H00

$7.50

7

CUSHION

47913-37H00

$5.52

8

CUSHION

94413-08F00

$3.78

9

COVER, REAR LOWER (WHITE) | FOR GLR

47921-47H00-YBD

Unavailable

9

COVER, REAR LOWER (BLACK) | FOR KGL

47921-47H00-YKV

$86.03

10

CUSHION

09320-06501

$3.60

11

NUT This part replaces 09148-05006.

09148-05012

$1.75

12

CLIP

09409-06328

$3.23
