Description

Price

1

FRAME (BLACK) | FOR KGL This part replaces 41100-47H20-YAP.

41100-47H21-YAP

Unavailable

1

FRAME (BLUE) | FOR GLR

41100-47H20-YUA

Unavailable

2

RAIL, SEAT RH

41211-47H00

$527.23

3

RAIL, SEAT LH

41221-47H00

Unavailable

4

BOLT,SEAT RAIL

41233-18G20

$8.65

5

BRIDGE,SEAT RAIL FR

41770-01H00

$61.13

6

BRIDGE, UPPER

42730-47H00

$43.65

7

BRIDGE, LOWER

42741-37H00

$27.40

8

BRIDGE, REAR

42751-47H00

$27.40

9

BOLT (6X12)

09103-06285

$1.97

10

SPACER, MOUNT

41911-40F01

$22.56

11

BOLT (8X35)

09103-08512

$2.92

12

BOLT, ADJUST

41921-47H00

$52.60

13

BOLT, ADJUST UPPER

41921-47H10

Unavailable

14

NUT,CRANK CASE ADJUST BOLT

41922-47H00

$37.42

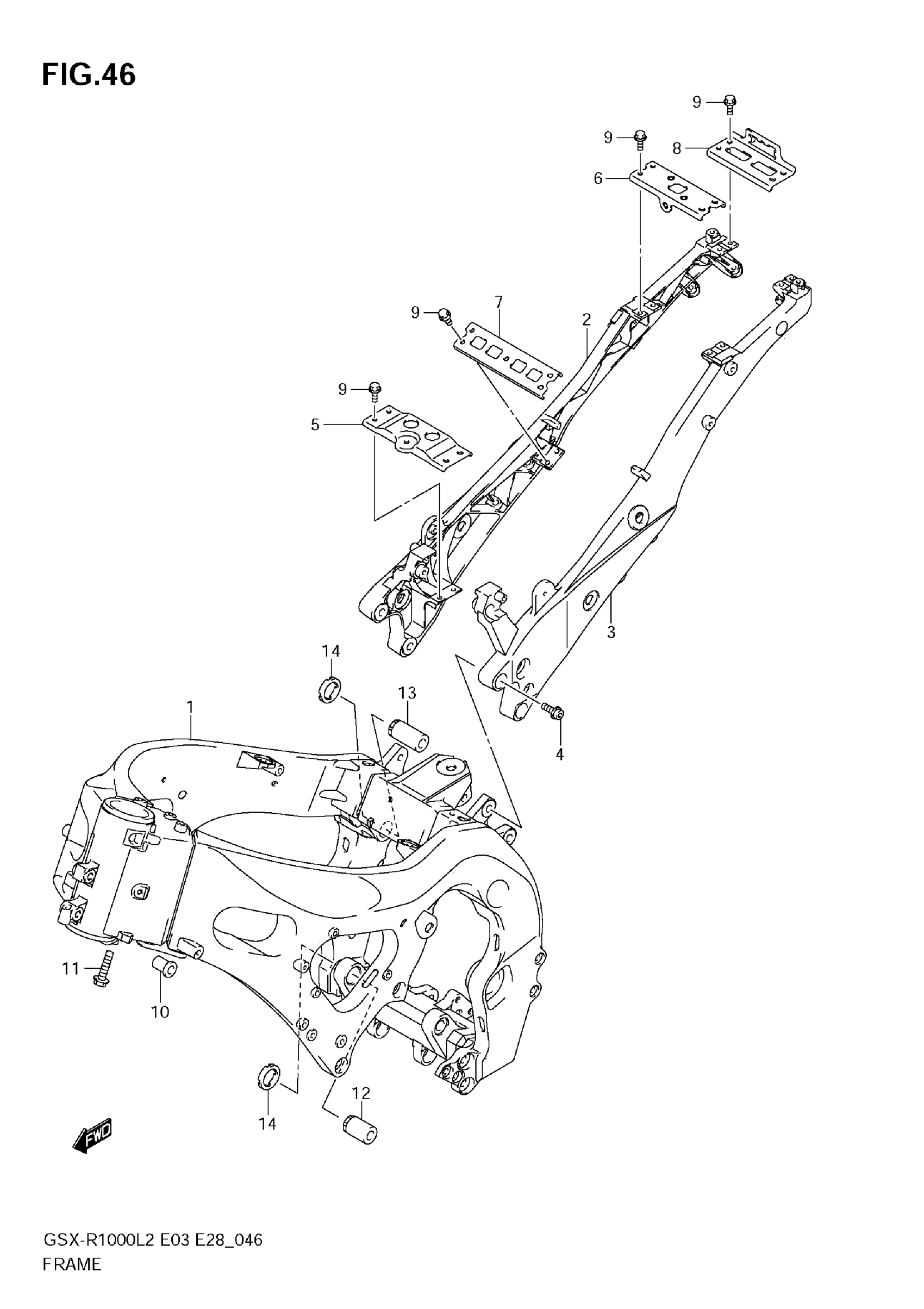

Suzuki GSX-R1000L2 (2012) FRAME Diagram

FRAME (BLACK) | FOR KGL This part replaces 41100-47H20-YAP.

FRAME (BLUE) | FOR GLR

RAIL, SEAT RH

RAIL, SEAT LH

BOLT,SEAT RAIL

BRIDGE,SEAT RAIL FR

BRIDGE, UPPER

BRIDGE, LOWER

BRIDGE, REAR

BOLT (6X12)

SPACER, MOUNT

BOLT (8X35)

BOLT, ADJUST

BOLT, ADJUST UPPER

NUT,CRANK CASE ADJUST BOLT
