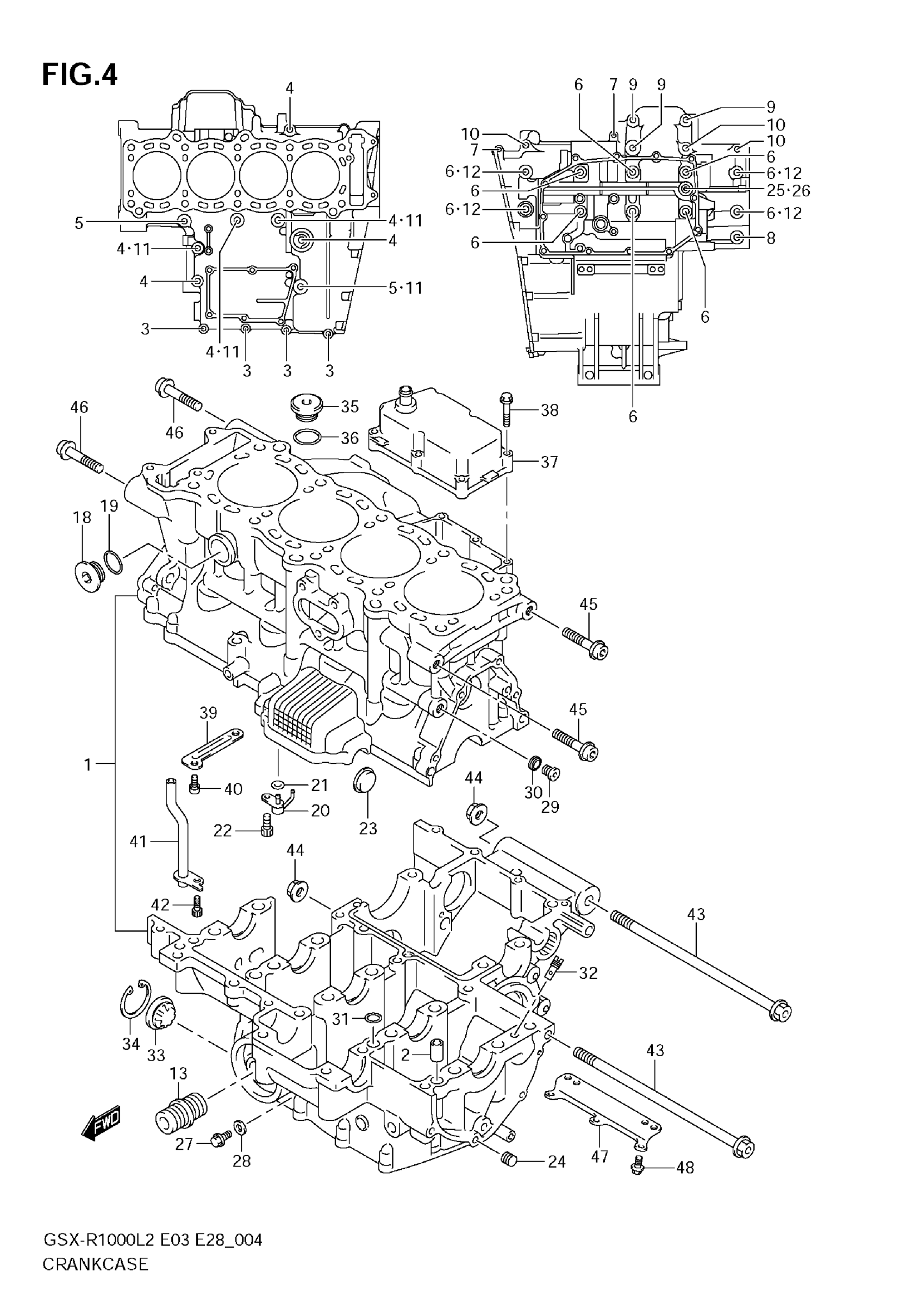

Suzuki GSX-R1000L2 (2012) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-47890

$5,142.75

2

PIN,CRANKCASE

11319-33E50

$5.32

3

BOLT

01547-0635A

$2.30

4

.BOLT

01550-0855A

$3.05

5

BOLT

01550-0865A

$3.51

6

BOLT (9X95)

09103-09012

$8.76

7

BOLT

01547-0645A

$2.42

8

BOLT (8X35)

01550-0835A

$3.04

9

.BOLT

01550-0855A

$3.05

10

BOLT

01550-0865A

$3.51

11

GASKET (8.2X14X1)

09168-08016

$1.65

12

.GASKET (10.2X20X2.3)

09168-10031

$2.03

13

UNION,OIL STAND

16591-06B01

$7.05

14

O RING (D:3,ID:102) | NOT ILLUSTRATED

09280-00045

$48.42

15

BOLT (6X20) | NOT ILLUSTRATED

09139-06151

$4.00

16

BEARING, THRUST RH (GREEN) | SEE ILLUS ON FIG.7

12228-48B00-0E0

$9.34

17

BEARING, THRUST LH (BROWN) | SEE ILLUS ON FIG.7

12228-48B00-0B0

$11.57

17

BEARING, THRUST LH (RED) | SEE ILLUS ON FIG.7

12228-48B00-0C0

$11.35

17

BEARING, THRUST LH (YELLOW) | SEE ILLUS ON FIG.7

12228-48B00-0D0

$11.78

17

BEARING, THRUST LH (GREEN) | SEE ILLUS ON FIG.7

12228-48B00-0E0

$9.34

17

BEARING, THRUST LH (BLUE) | SEE ILLUS ON FIG.7

12228-48B00-0F0

$11.78

17

BEARING, THRUST LH (ORANGE) | SEE ILLUS ON FIG.7

12228-48B00-0G0

$11.78

17

BEARING, THRUST LH (BLACK) | SEE ILLUS ON FIG.7

12228-48B00-0H0

$9.66

18

PLUG, WATER JACKET

11318-35F00

$16.78

19

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.93

20

JET, PISTON COOLING This part replaces 11390-21H00.

11390-21H01

$36.72

21

O RING (D:1.2,ID:4)

09280-04004

$1.91

22

BOLT (6X12)

09106-06075

$2.48

23

PLUG

09241-23005

$12.43

24

PLUG This part replaces 09246-05006.

09246-04009

$4.25

25

PLUG (L:12)

09248-12004

$7.95

26

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

27

BOLT

01547-0612A

$2.03

28

GASKET (6.2X13X1.2)

09168-06018

$1.77

29

PLUG (10X10)

09248-10010

$4.17

30

GASKET (10X14X3.6)

09168-10002

$2.13

31

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

32

JET, 140

09493-28012

$16.87

33

LENS, OIL LEVEL

11971-33210

$18.20

34

.CIRCLIP

08331-4130A

$2.70

35

PLUG (26X9)

09259-26011

$11.03

36

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

37

COVER, BREATHER

11380-47H00

$142.80

38

BOLT

01547-0630A

$2.32

39

PLATE, BREATHER OIL RETURN

11382-47H00

Unavailable

40

BOLT (6X12)

09106-06075

$2.48

41

PIPE, BREATHER OIL RETURN

11383-47H00

Unavailable

42

BOLT

07130-0612A

$2.50

43

BOLT (12X220)

09103-12110

$27.88

44

NUT

09159-12054

$7.44

45

BOLT (10X45)

09106-10089

$15.12

46

BOLT (10X55)

09106-10090

$18.70

47

PLATE, LOWER

11322-47H00

Unavailable

48

BOLT (6X10)

09103-06188

$2.90
