2012 Suzuki GSX-R1000L2 Crank Balancer Diagram

← All diagrams

Find the part on the Crank Balancer diagram for your 2012 Suzuki GSX-R1000L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

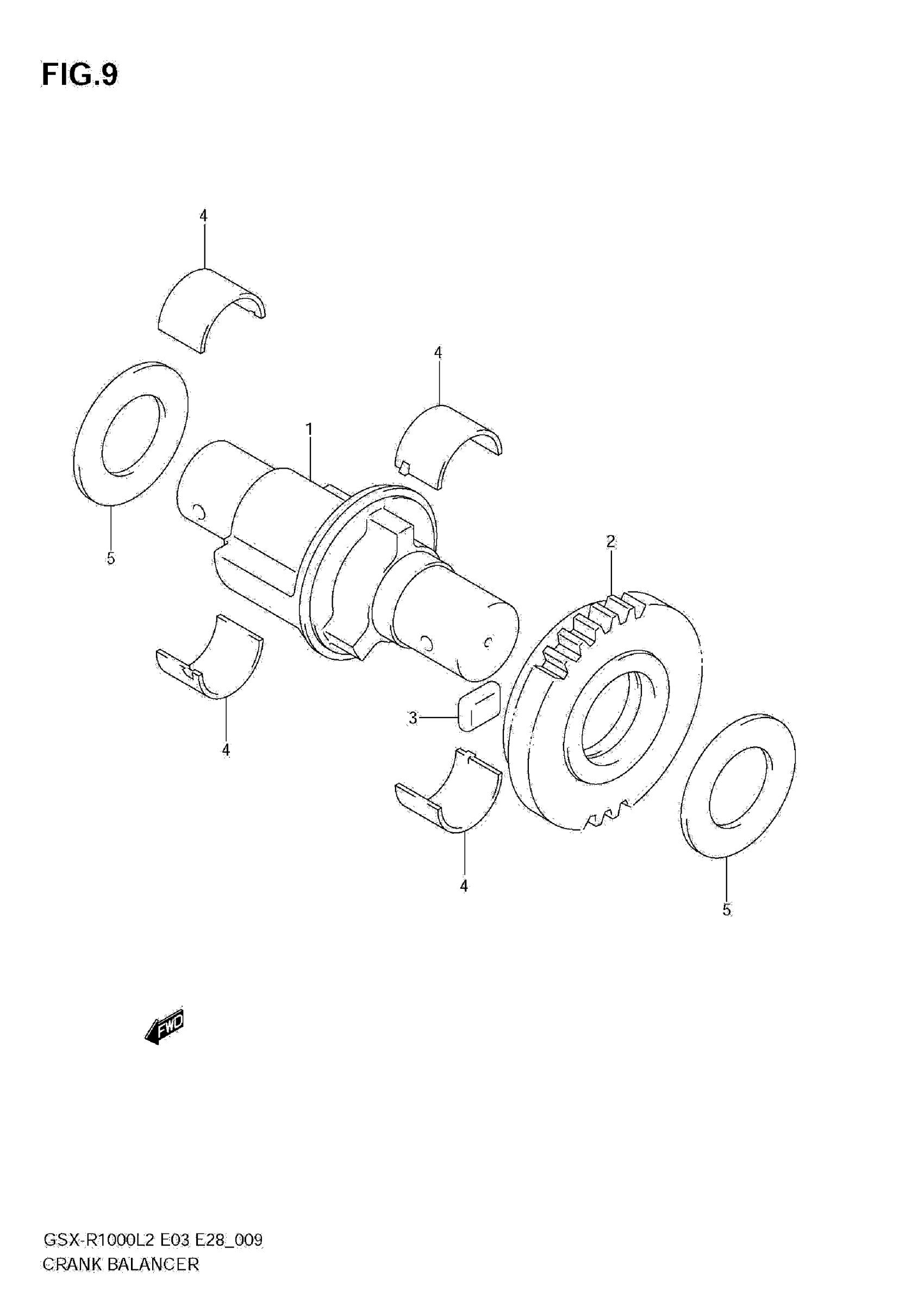

2012 Suzuki GSX-R1000L2 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12654-47H00

1
Out of stock

2

GEAR, CRANK BALANCER

12666-40F00

1
Out of stock

3

DAMPER,CRANK BALANCER GEAR

12686-40F00

6
Out of stock

4

BEARING, CRANK BALANCER (GREEN)

12229-47H00-0A0

4
Out of stock

4

BEARING, CRANK BALANCER (BLACK)

12229-47H00-0B0

4
Out of stock

4

BEARING, CRANK BALANCER (BROWN)

12229-47H00-0C0

4
Out of stock

5

WASHER

08211-20403

2
Out of stock
