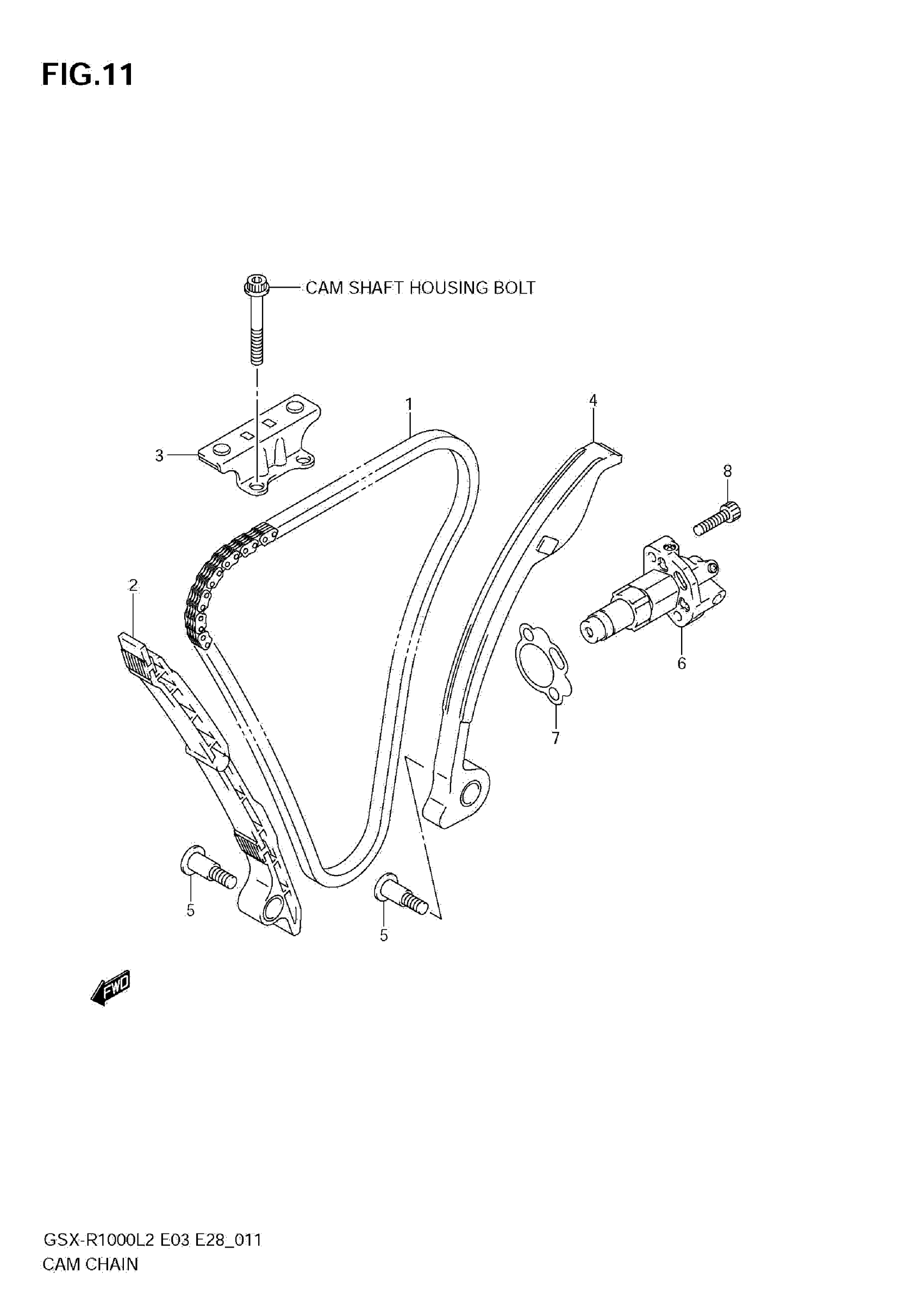

Find the part on the Cam Chain diagram for your 2012 Suzuki GSX-R1000L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX-R1000L2 Cam Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE

12760-40F01

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-47H00.

12771-47H01

1
Out of stock

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35F10.

12782-35F11

1
Out of stock

4

TENSIONER, CAM CHAIN This part replaces 12811-47H00.

12811-47H01

1
Out of stock

5

BOLT

12812-31G00

2
Out of stock

6

ADJUSTER ASSY, TENSIONER

12830-47H00

1
Out of stock

7

GASKET, ADJUSTER

12837-02H00

1
Out of stock

8

BOLT (6X25)

07130-0625A

2
Out of stock
