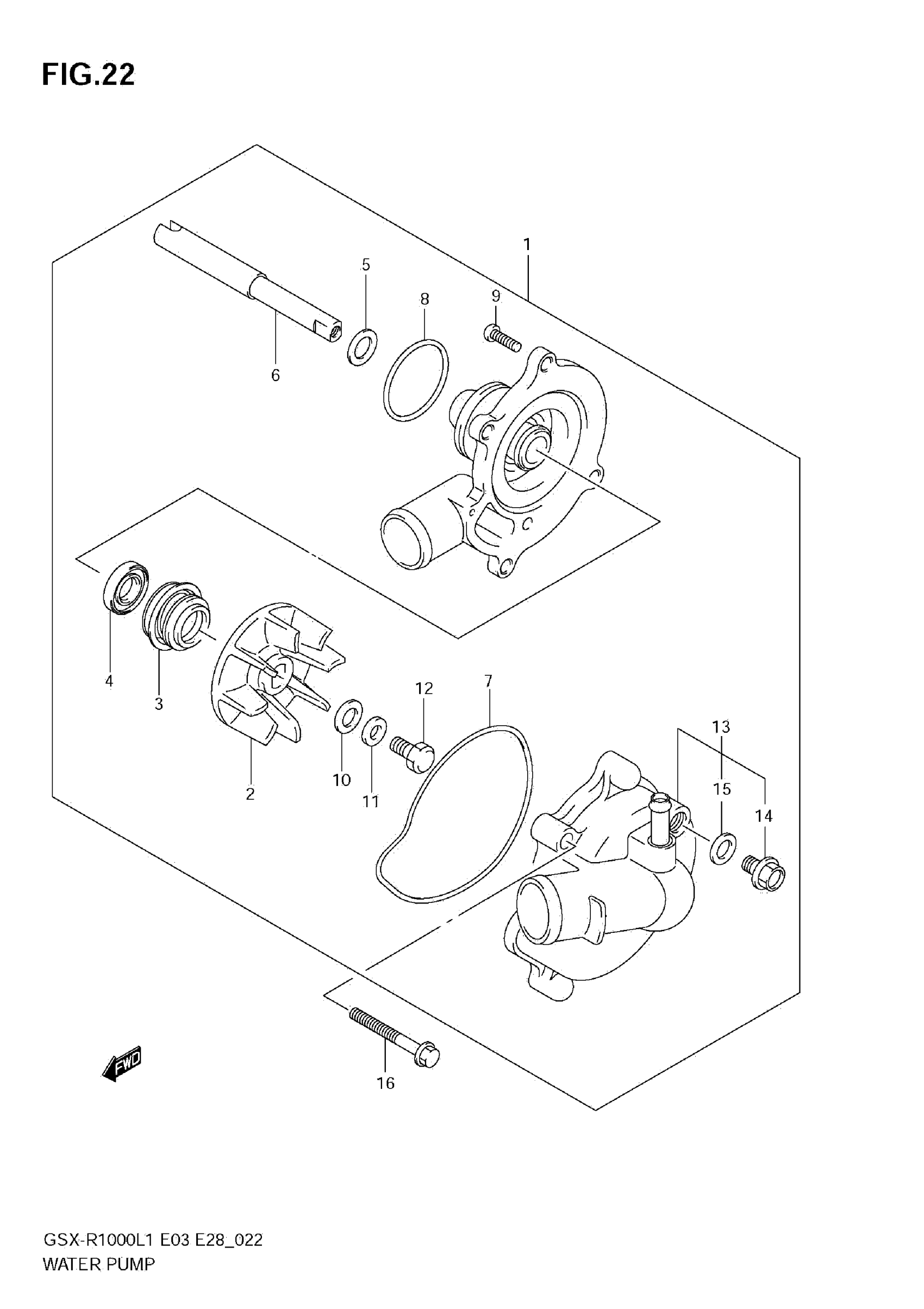

Suzuki GSX-R1000L1 (2011) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-47H10.

17400-47H11

$243.48

2

IMPELLER

17491-01H00

$31.26

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

4

SEAL, OIL

17461-01H00

$17.86

5

WASHER

17432-07G00

$2.60

6

SHAFT

17511-47H00

Unavailable

7

.O-RING This part replaces 17418-33400.

17418-33401

$4.48

8

.O-RING

17435-33400

$15.29

9

SCREW

02112-0616A

$1.49

10

GASKET (6X15X2.2)

09168-06025

$2.92

11

WASHER

09164-06006

$2.61

12

BOLT (6X13)

09100-06099

$2.00

13

CASE

17410-47H10

Unavailable

14

.BOLT,DRAIN

17415-20920

$7.38

15

GASKET (8.2X14X1)

09168-08016

$1.65

16

BOLT

01547-0635A

$2.30
