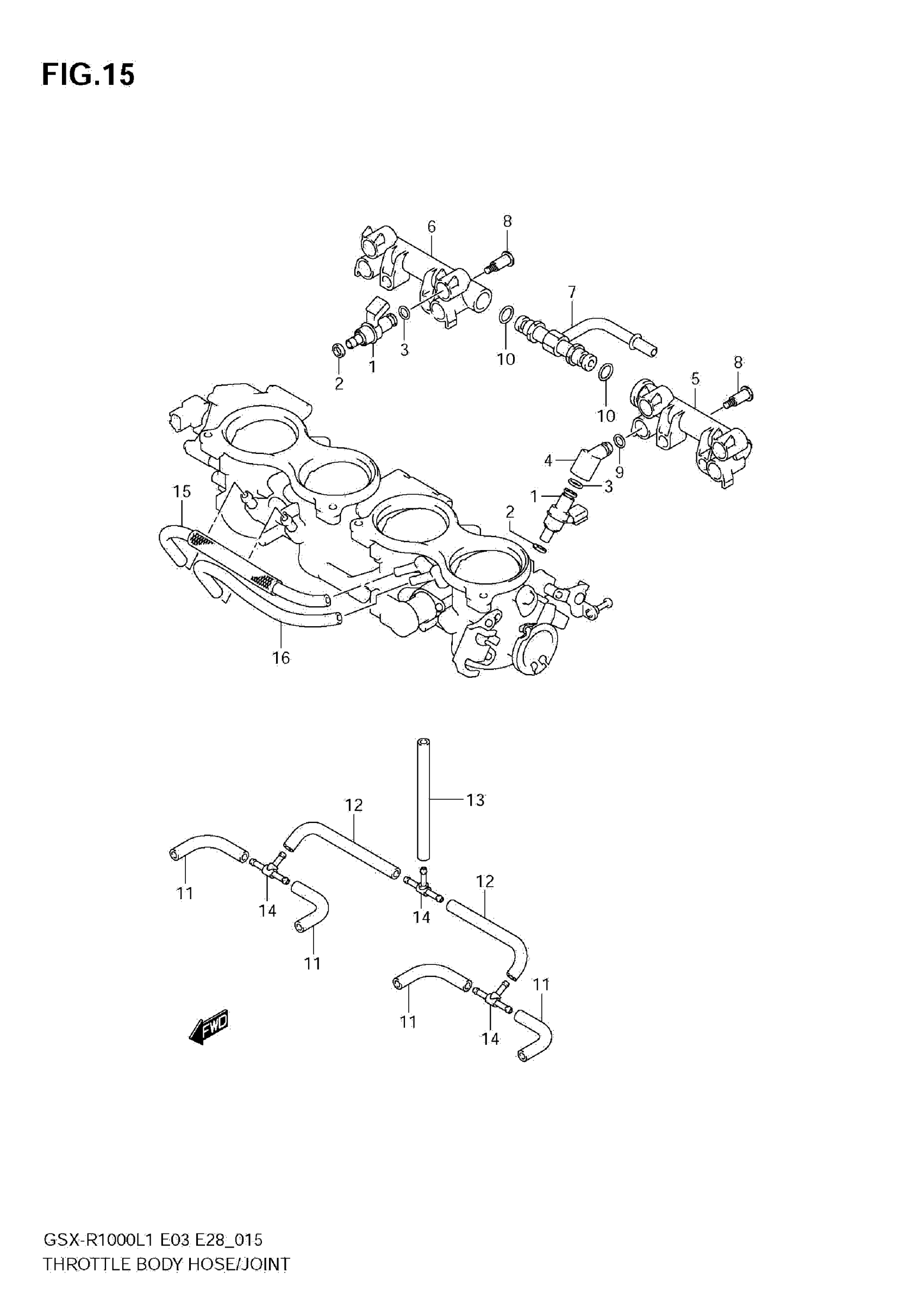

Suzuki GSX-R1000L1 (2011) THROTTLE BODY HOSE/JOINT (GSX-R1000L1 E28) Diagram

#

Description
Price

1

INJECTOR ASSY

15710-21H00

$309.40

2

.RING,SEAL

15722-21H00

$11.25

3

.O-RING

15721-21H00

$9.09

4

PIPE, FUEL

13473-21H00

$18.08

5

PIPE, FUEL

13474-47H00

Unavailable

6

PIPE, FUEL

13474-47H10

Unavailable

7

PIPE, FUEL

13473-15H00

Unavailable

8

SCREW

13601-35F00

$7.50

9

.O-RING

15721-24F00

$9.09

10

O-RING

15721-10G00

$9.09

11

HOSE, RUBBER (L:48)

13683-47H00

Unavailable

12

HOSE, RUBBER (L:92.5)

13683-47H10

Unavailable

13

HOSE,RUBBER(L:1 This part replaces 13697-24F20.

13697-24F21

$3.47

14

T JOINT

13471-24F30

$16.48

15

TUBE This part replaces 13680-21H10.

13680-21H11

$17.53

16

TUBE This part replaces 13698-21H00.

13698-21H01

$9.18
