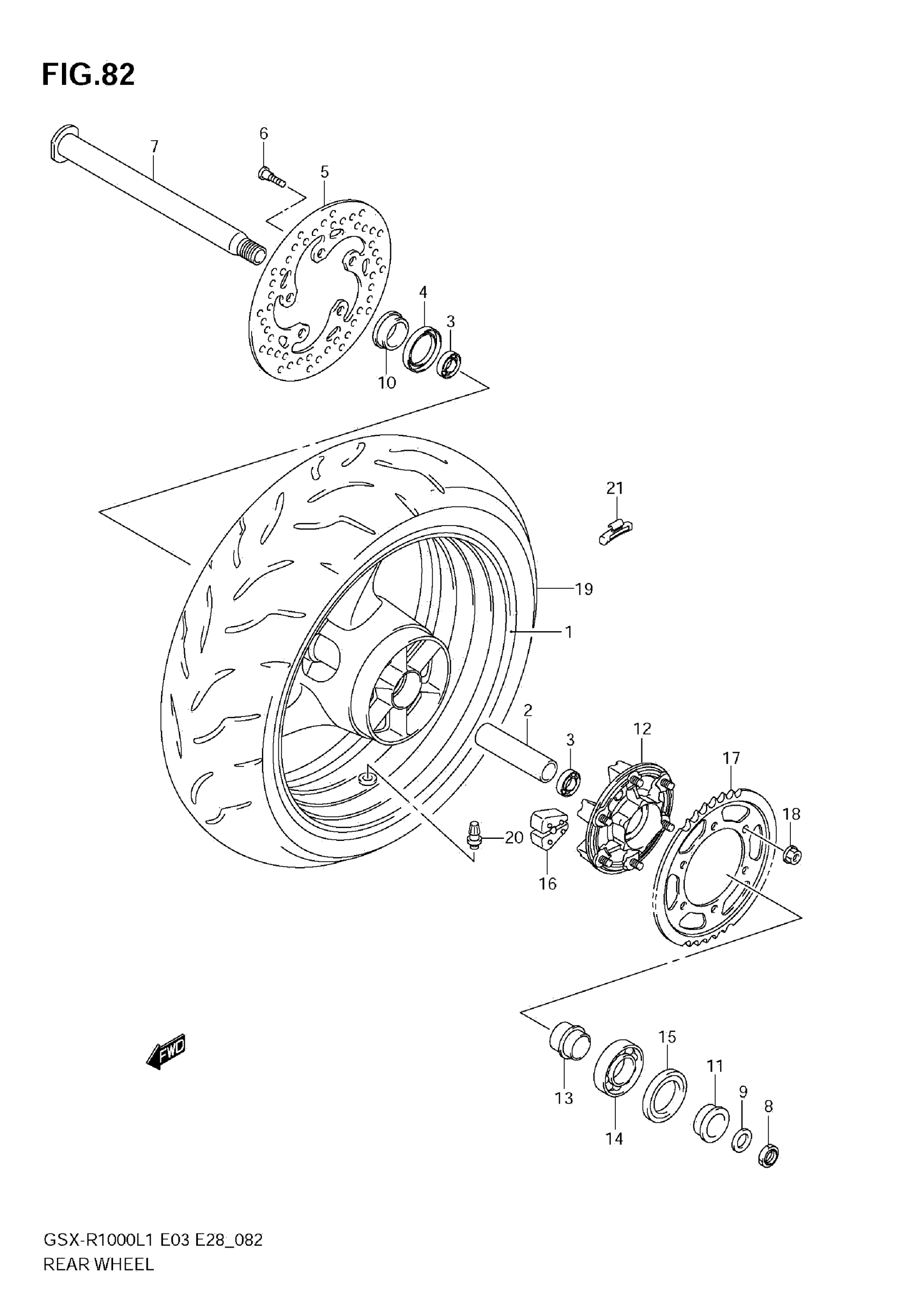

Suzuki GSX-R1000L1 (2011) REAR WHEEL Diagram

WHEEL, REAR (17M/CXMT6.00) (SILVER) | FOR HTL

64111-47H00-YMY

Unavailable

WHEEL, REAR (17M/CXMT6.00) (BLACK) | FOR GLR

64111-47H00-019

Unavailable

SPACER,RR HUB BEARING

64731-35F10

$51.42

BEARING This part replaces 09262-28043.

09262-28063

$21.63

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

DISC,RR BRAKE

69211-18G00

$319.08

BOLT (8X21)

09106-08160

$3.57

AXLE,RR

64711-49G00

$143.45

NUT

09159-25003

$31.85

WASHER (25.2X42X3.2)

09160-25070

$4.77

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$13.49

SPACER,REAR AXLE,L This part replaces 64751-47H00.

64751-47H10

$18.73

DRUM,RR SPROCKET

64610-47H00

$313.78

RETAINER, SPROCKET DRUM

64733-35F00

$26.61

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

OIL SEAL (39X65X7)

09285-39001

$10.62

ABSORBER, HUB SHOCK

64651-47H00

$26.48

SPROCKET, REAR (NT:42)

64511-47H00

$139.45

NUT

08319-3110A

$2.73

TIRE, REAR, 190/50ZR17 M/C (73W)(BRIDGESTONE)

65110-47H00

Unavailable

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER (10G)

55411-22H00

$8.60

BALANCER (20G)

55412-22H00

$10.07

BALANCER (30G)

55413-22H00

$11.47
