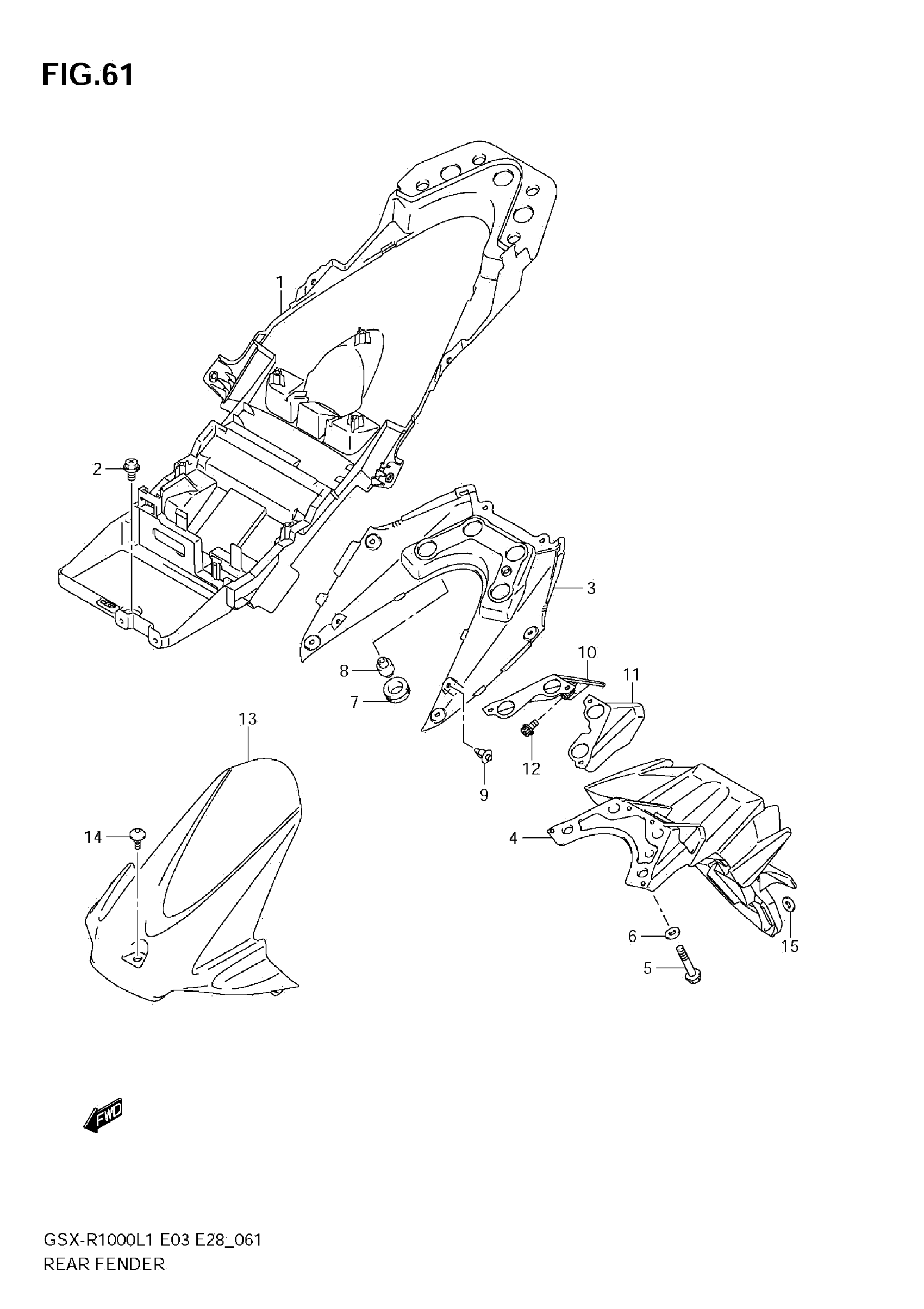

Suzuki GSX-R1000L1 (2011) REAR FENDER Diagram

FENDER, REAR FRONT This part replaces 63111-47H00.

63111-47H10

$154.22

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

COVER, FENDER FRONT (WHITE) | FOR GLR This part replaces 63112-47H00-YBD.

63112-47H10-YBD

$157.72

COVER,REAR FEND | FOR HTL This part replaces 63112-47H00-019.

63112-47H10-019

$138.43

CLIP

09409-06328

$3.23

FENDER, REAR REAR

63113-47H00

$148.07

BOLT (6X30)

09103-06204

$2.82

WASHER (6.5X18X1.0)

09160-06028

$1.49

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.69

SPACER

63147-47H00

$24.20

CLIP

09409-06314-5PK

$2.78

COVER, FENDER REAR RH (SILVER)

63170-47H00-YUS

Unavailable

COVER, FENDER REAR LH (SILVER)

63180-47H00-YUS

Unavailable

BOLT

07120-0510B

$3.05

FENDER, REAR LOWER

63114-47H00

$54.18

SCREW (6X16)

09139-06169

$3.10

WASHER

08322-0106A

$1.84
