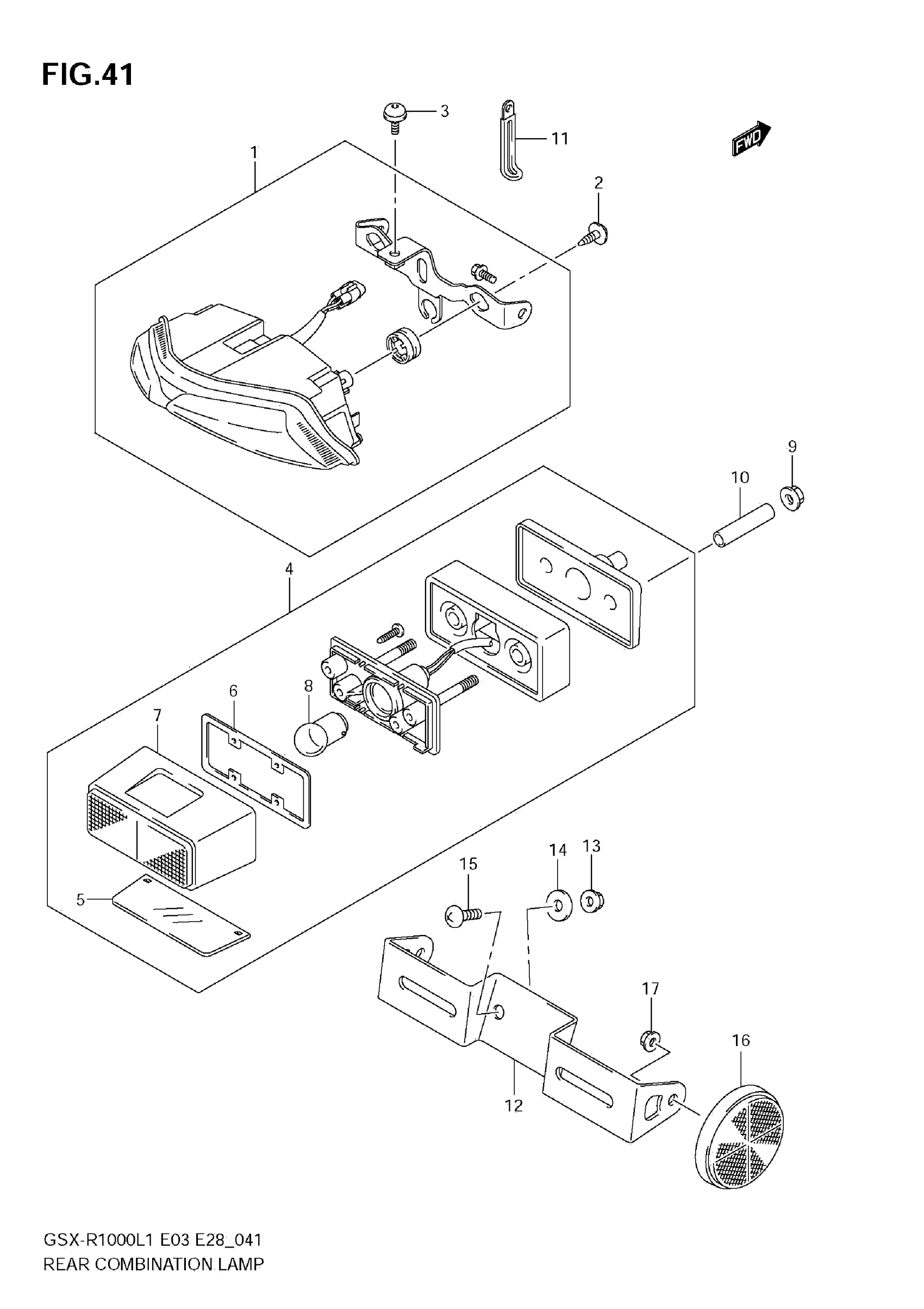

Suzuki GSX-R1000L1 (2011) REAR COMBINATION LAMP Diagram

LAMP ASSY, REAR COMBINATION

35710-47H30

Unavailable

BOLT (5X12)

09106-05031

$2.80

SCREW (6X12)

09139-06152

$5.35

LAMP ASSY,LICENSE This part replaces 35910-41G30.

35910-41G32

$99.83

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

$14.98

GASKET

35913-41G00

$16.07

COVER, LICENSE LAMP

35917-41G00

$39.85

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

NUT

09159-06096

$3.42

SPACER (6.5X9X34)

09180-06356

$5.10

CLAMP (L:45)

09404-06429

$1.82

BRACKET, LICENSE PLATE

35927-41G30

$17.12

NUT, LICENSE PLATE BRACKET

08316-1006A

$2.19

WASHER (6.5X20X1.2)

09160-06077

$1.89

SCREW

02142-0616A

$1.37

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

NUT

08316-1005A

$2.19
