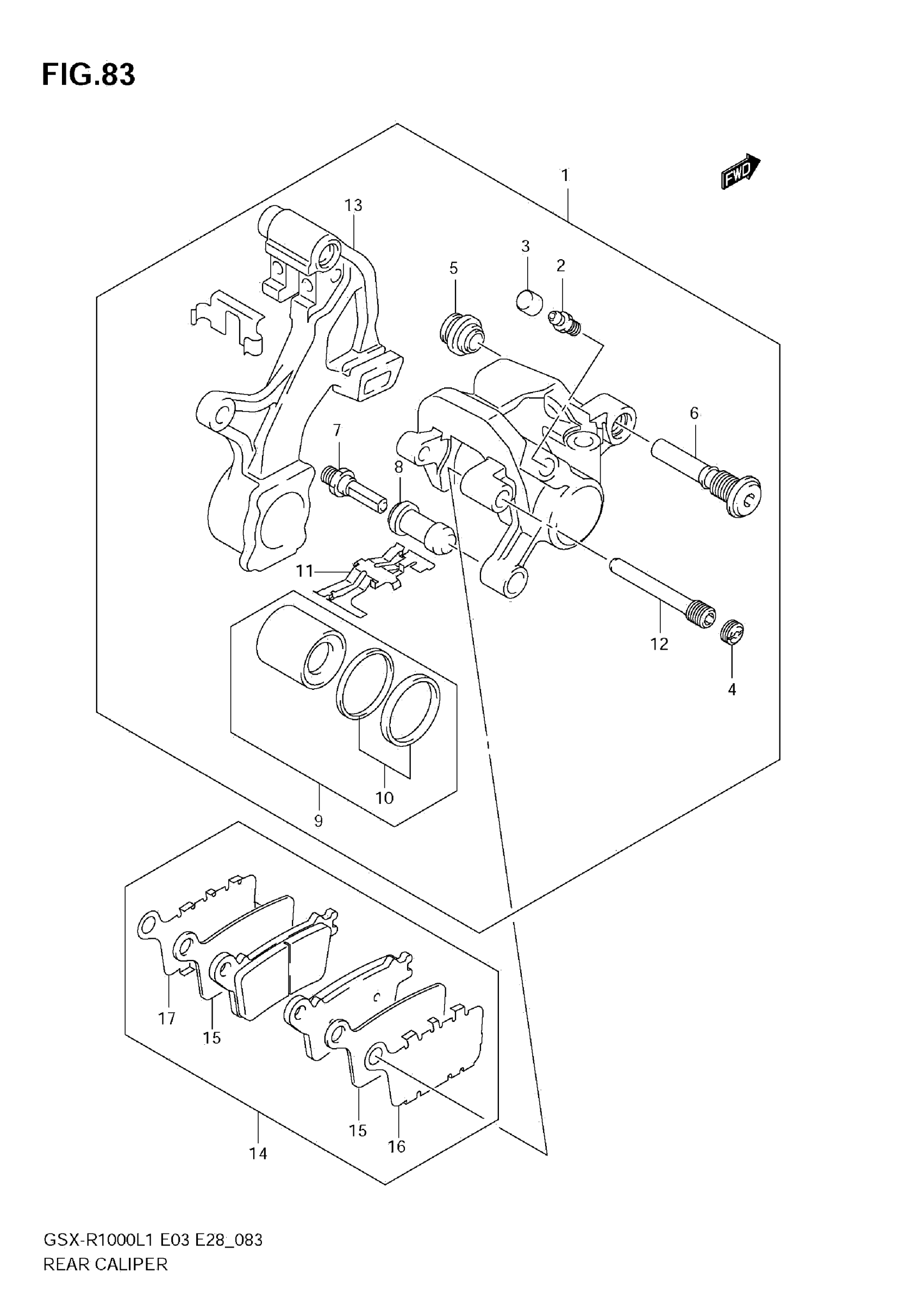

Suzuki GSX-R1000L1 (2011) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-47H00-999

$403.37

2

BLEEDER

59121-01A00

$8.73

3

CAP, BLEEDER

59122-46H00

$4.43

4

PLUG, PIN

59146-21E10

$6.15

5

BOOT

59303-14500

$5.52

6

PIN, BOLT

59305-36E00

$18.20

7

PIN

59382-14500

$8.95

8

BOOT

59386-13A00

$7.95

9

PISTON SET

69100-47810

$127.87

10

SEAL SET, PISTON

69100-13810

$9.61

11

SPRING, PAD

69115-47H00

$12.02

12

PIN, PAD

69141-40F00

$29.48

13

BRACKET, REAR

69150-47H00

Unavailable

14

PAD & SHIM SET

69100-47820

$51.22

15

INSULATOR

69132-47H00

$15.42

16

RETAINER, PAD

69133-47H00

$13.85

17

RETAINER, PAD

69134-47H00

$13.85
