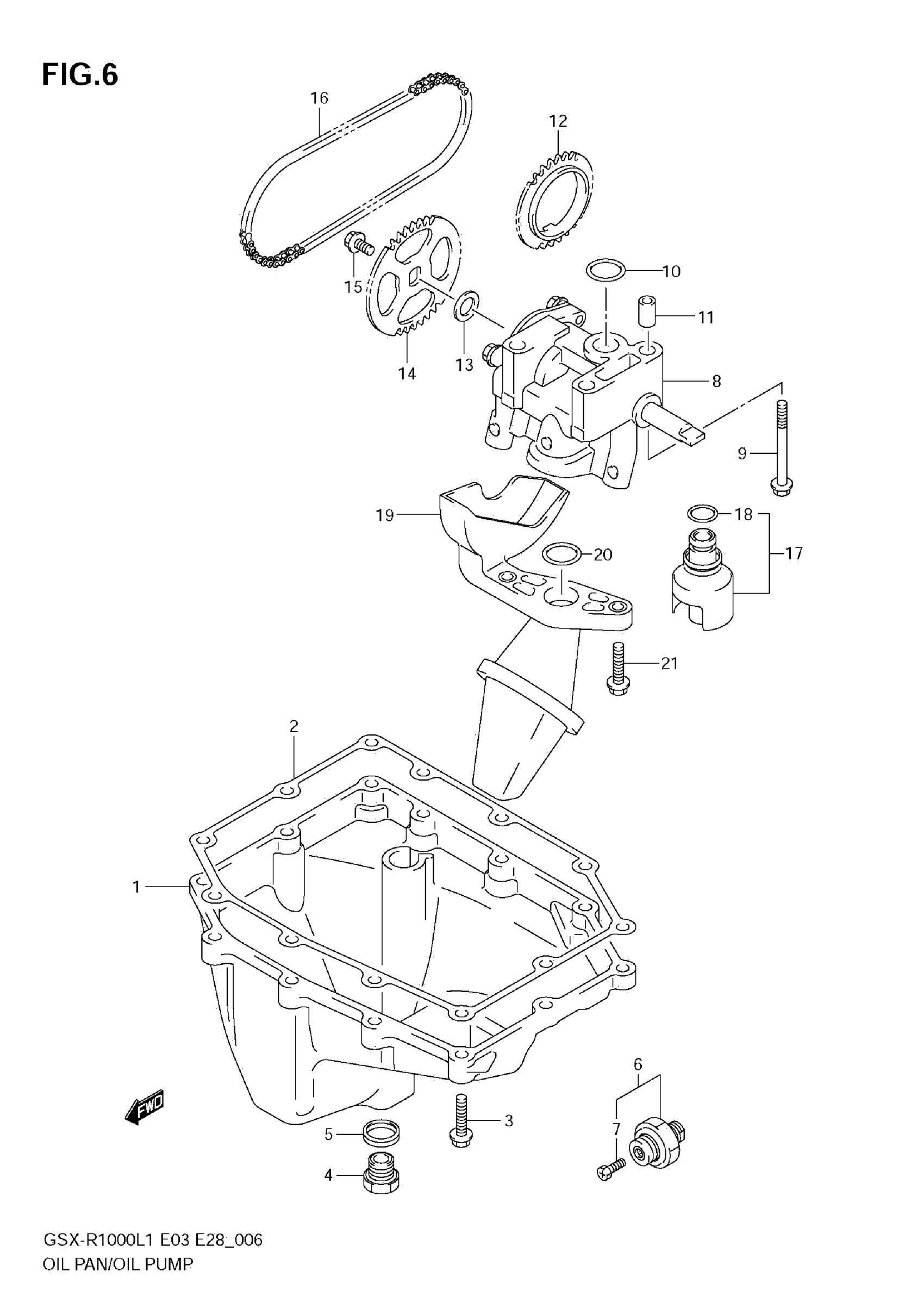

Suzuki GSX-R1000L1 (2011) OIL PAN - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-47H00

$263.90

2

GASKET, OIL PAN

11489-47H00

$20.25

3

BOLT

01547-0625A

$2.01

4

PLUG

09247-14036

$6.17

5

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

6

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13

7

BOLT

37822-33D00

$4.35

8

PUMP ASSY, OIL This part replaces 16400-47H00.

16400-47H10

$284.20

9

BOLT

01547-0650A

$2.46

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

11

PIN

04211-09149

$1.65

12

SPROCKET, DRIVE

16321-01H00

$76.88

13

SHIM (10X18X0.5)

09181-10158

$1.97

14

SPROCKET, DRIVEN

16331-47H00

$28.70

15

BOLT (6X12)

09103-06285

$1.97

16

CHAIN,OIL PUMP DRIVE

16310-47H00

$36.40

17

VALVE ASSY, OIL RELIEF

16440-47H00

$72.00

18

O RING (D:1.9:, ID:13.0)

09280-13004

$2.17

19

STRAINER, ENGINE OIL This part replaces 16520-47H00.

16520-47H01

$37.08

20

O RING (D:2.62,ID:20.3)

09280-19008

$5.50

21

BOLT

01550-0620A

$1.97
