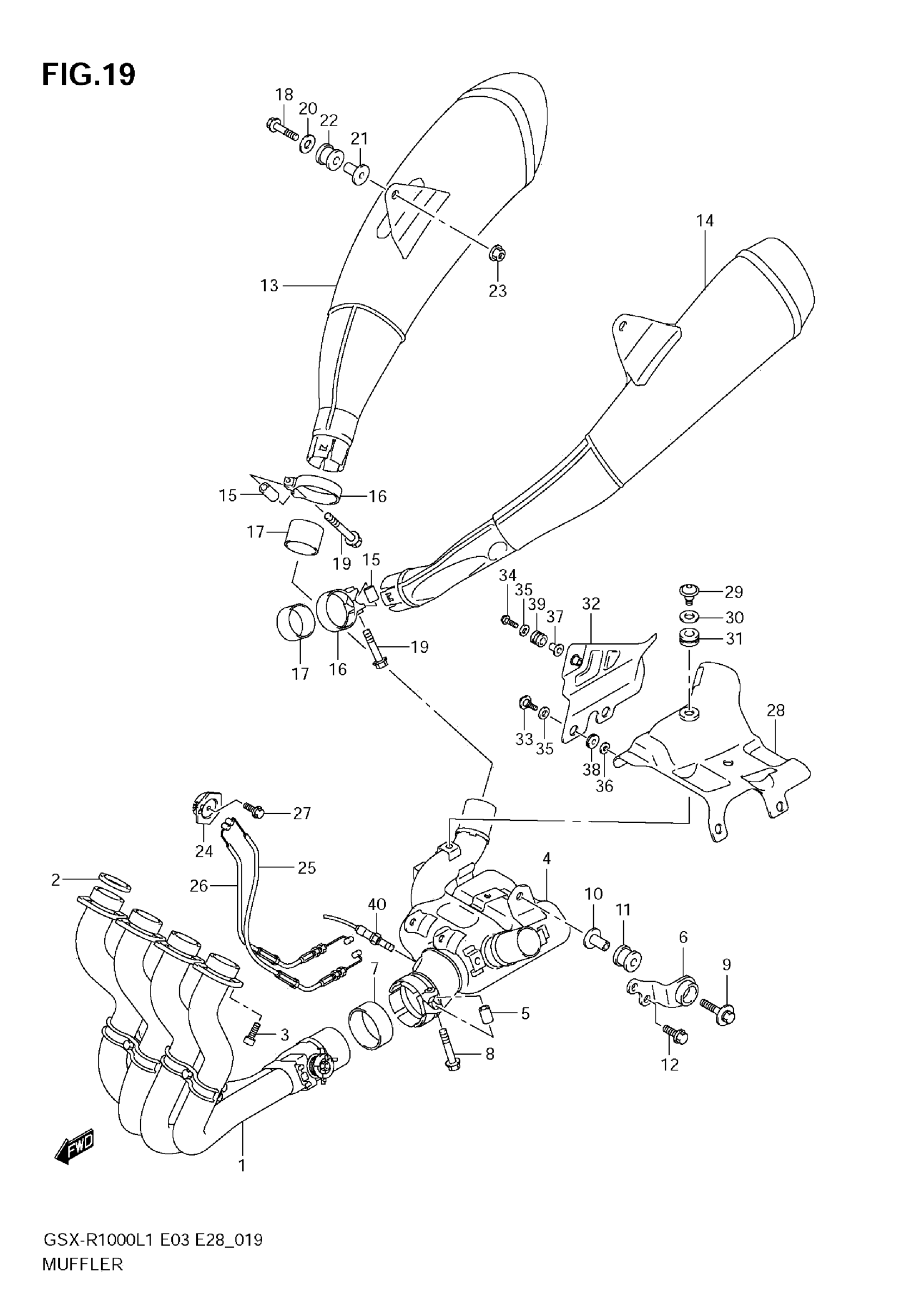

Suzuki GSX-R1000L1 (2011) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-47H00

Unavailable

2

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

3

BOLT (8X25)

09106-08165

$4.03

4

CHAMBER | W/CATALYST

14200-47H00

Unavailable

5

SPACER

14458-06H00

$7.05

6

BRACKET

14770-47H00

Unavailable

7

CONNECTOR

14771-21H00

$28.27

8

BOLT (8X40)

09103-08392

$3.62

9

BOLT (8X45)

09118-08152-A05

$5.24

10

SPACER (8.6X12X24.2)

09180-08152

$5.83

11

CUSHION

09320-12077

$11.78

12

BOLT (8X16)

01550-0816A

$2.32

13

BODY,MUFFLER,R This part replaces 14310-47H01-H01.

14310-47H02-H01

Unavailable

14

BODY,MUFFLER,L This part replaces 14340-47H01-H01.

14340-47H02-H01

Unavailable

15

SPACER

14458-06H00

$7.05

16

CLAMP

14459-21H30

$29.33

17

CONNECTOR

14771-42F10

$23.13

18

BOLT (8X45)

09103-08358

$3.42

19

BOLT (8X40)

09103-08392

$3.62

20

WASHER (8.5X28X1.5)

09160-08142

$2.76

21

SPACER (8.6X12X24.2)

09180-08152

$5.83

22

CUSHION

09320-12077

$11.78

23

NUT

08361-2508A

$1.97

24

PULLEY, CONTROLLER

11269-18G01

$28.78

25

CABLE, EXH VALVE NO.1

11276-47H00

$63.90

26

CABLE, EXH VALVE NO.2

11277-47H00

Unavailable

27

BOLT

01547-0516A

$1.55

28

GUARD, CHAMBER HEAT NO.1

14731-47H00

Unavailable

29

SCREW (6X12)

09139-06124

$4.52

30

WASHER (8.5X18X1)

09160-08043

$1.83

31

CUSHION This part replaces 09320-08030.

09320-08511

$2.02

32

GUARD, CHAMBER HEAT NO.2

14732-47H00

Unavailable

33

SCREW (6X20)

09139-06028

$3.70

34

SCREW (6X25)

09139-06029

$5.36

35

WASHER (6.5X15X1.5)

09160-06094

$1.49

36

WASHER

09169-06040

$1.92

37

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

38

CUSHION This part replaces 09320-08030.

09320-08511

$2.02

39

CUSHION

09320-09501

$2.03

40

SENSOR, OXYGEN

18213-18H10

$388.57
