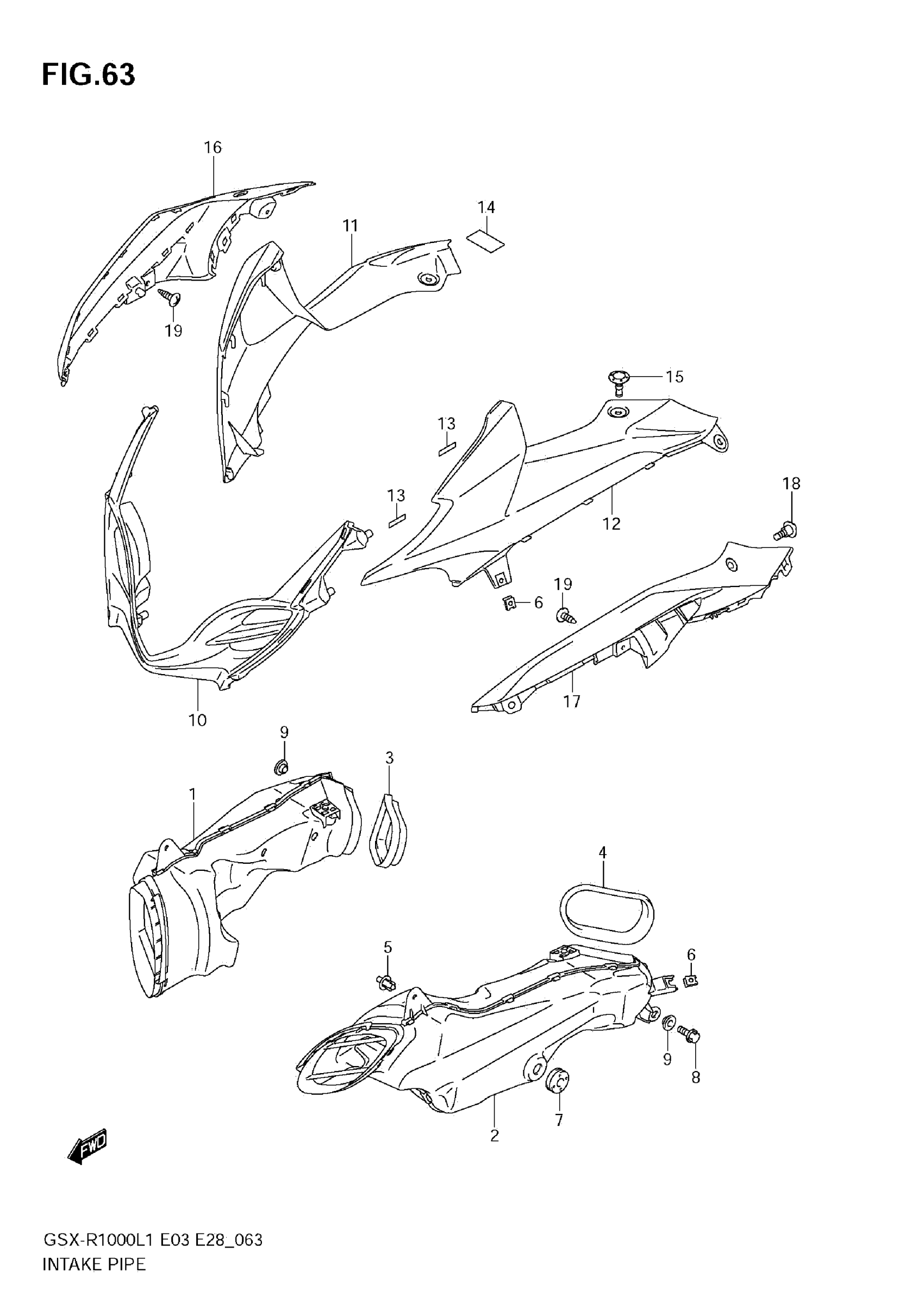

Suzuki GSX-R1000L1 (2011) INTAKE PIPE Diagram

#

Description
Price

1

PIPE, AIR INTAKE RH

94420-47H00

$137.98

2

PIPE, AIR INTAKE LH

94430-47H00

$140.58

3

MOLDING, RH

94423-47H00

$20.13

4

MOLDING, LH

94433-47H00

$19.78

5

CLIP

09409-06314-5PK

$2.80

6

NUT

09148-05052

$3.04

7

CUSHION

09320-08028

$2.80

8

BOLT

01550-0616A

$1.97

9

WASHER

09169-06082

$4.70

10

COVER, INTAKE FRONT (SILVER) | FOR HTL This part replaces 94671-47H00-YMC.

94671-47H10-YMC

$262.12

10

COVER,INTAKE(BL | FOR GLR This part replaces 94671-47H00-019.

94671-47H10-019

$249.30

11

COVER, INTAKE RH (BLACK) | FOR HTL This part replaces 94672-47H00-YKV.

94672-47H10-YKV

$276.13

11

COVER, INTAKE RH (BLUE) | FOR GLR This part replaces 94672-47H00-YSF.

94672-47H10-YSF

$247.00

12

COVER, INTAKE LH (BLACK) | FOR HTL This part replaces 94682-47H00-YKV.

94682-47H10-YKV

$271.02

12

COVER, INTAKE LH (BLUE) | FOR GLR This part replaces 94682-47H00-YSF.

94682-47H10-YSF

$242.42

13

TAPE

94443-06G00

$2.97

14

CUSHION

33652-29F00

$2.80

15

CLIP

94479-35F00

$5.14

16

COWL, SIDE UPPER RH (BLUE) | FOR GLR

94473-47H00-YUA

$359.10

16

COWL, SIDE UPPER RH (BLACK) | FOR HTL

94473-47H00-019

$359.10

17

COWL, SIDE UPPER LH (BLUE) | FOR GLR

94483-47H00-YUA

$359.10

17

COWL, SIDE UPPER LH (BLACK) | FOR HTL

94483-47H00-019

$373.37

18

SCREW (5X16)

09139-05077

$2.97

19

SCREW

03541-0516A

$1.37
