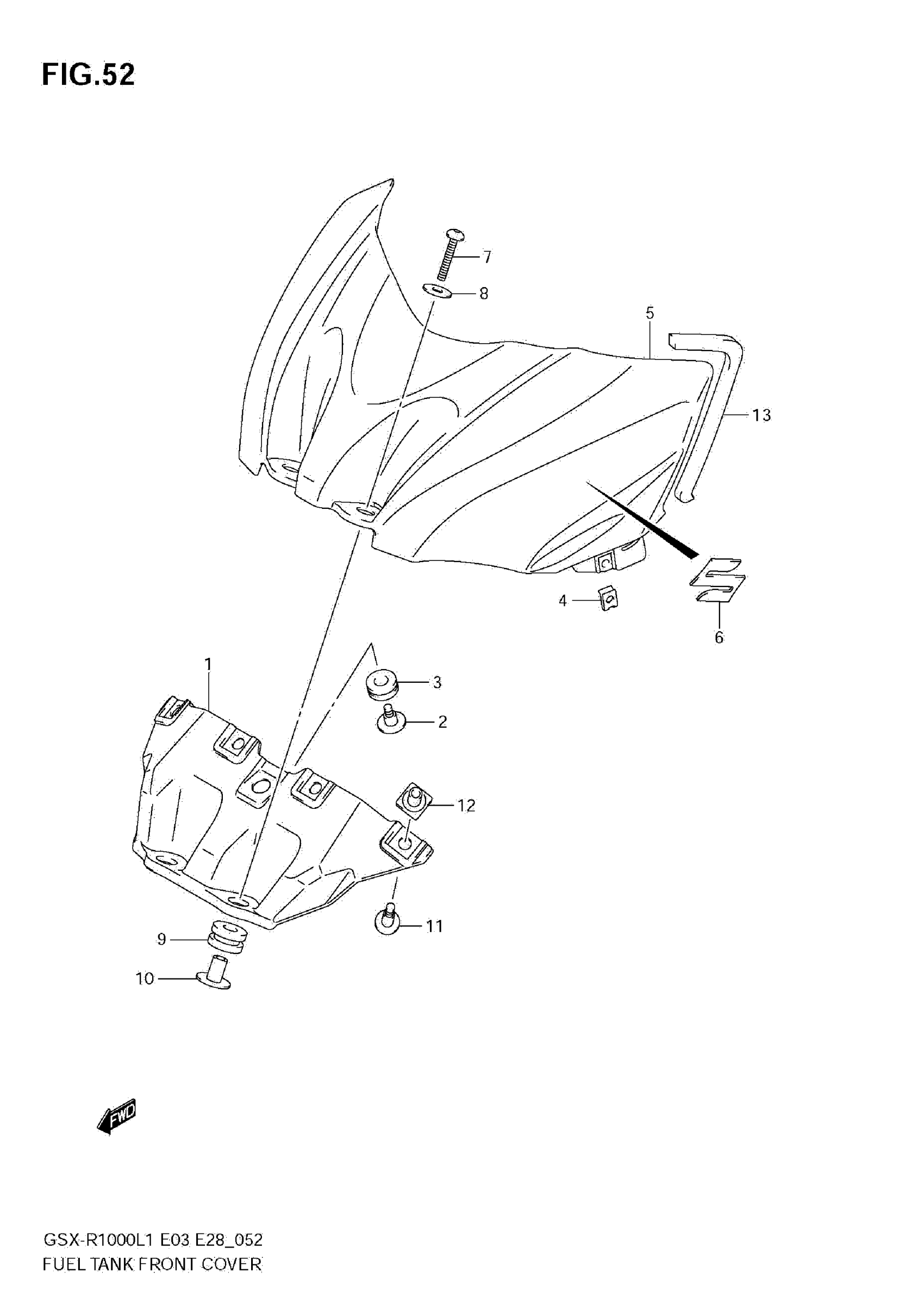

Suzuki GSX-R1000L1 (2011) FUEL TANK FRONT COVER Diagram

#

Description
Price

1

BRACKET, FRONT

44521-47H00

Unavailable

2

SCREW (5X16.4)

09139-05078

$3.19

3

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

4

NUT

09148-05052

$3.04

5

COVER, FRONT (BLACK) | FOR CRU

44291-47H00-YKV

Unavailable

5

COVER, FRONT (BLUE) | FOR GLR

44291-47H00-YSF

$363.97

6

EMBLEM

68111-18G20

$29.56

7

SCREW (6X40)

09139-06105

$7.98

8

WASHER (6.5X22X1.6)

09160-06054

$1.62

9

CUSHION (10X22X13)

09320-10050

$3.07

10

SPACER

44512-47H00

$14.47

11

SCREW (6X10)

09139-06181

$3.52

12

NUT

44523-47H00

$13.30

13

CUSHION

44277-37H00

$6.87
