2011 Suzuki GSX-R1000L1 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2011 Suzuki GSX-R1000L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

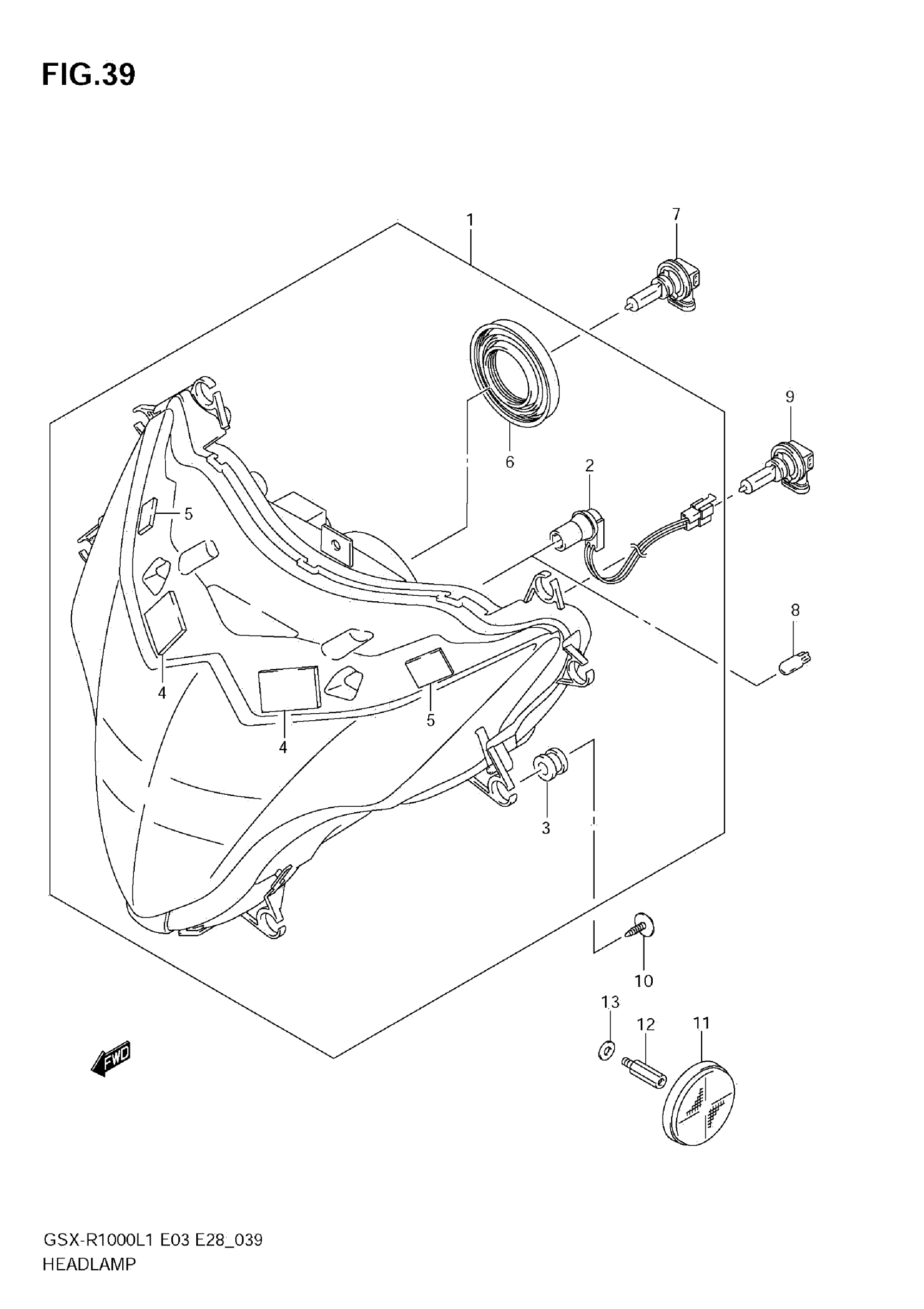

2011 Suzuki GSX-R1000L1 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 35100-47H30-999.

35100-47H32-999

1
Out of stock

2

CORD ASSY This part replaces 36118-29G50.

36118-29G51

2
Out of stock

3

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

8
Out of stock

4

FASTENER, HEADLAMP LENS

44572-02F01

2
Out of stock

5

FASTENER, HEADLAMP LENS

44572-37H00

2
Out of stock

6

COVER, SOCKET

35179-76F10

2
Out of stock

7

BULB (12V55W)

09471-12210

1
Out of stock

8

.BULB (12V5W)

09471-12216

2
Out of stock

9

BULB (12V65W)

09471-12222

1
Out of stock

10

SCREW (5X15)

09136-05062

8
Out of stock

11

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

12

BOLT

09119-06109

2
Out of stock

13

WASHER (8.5X18X1)

09160-08043

2
Out of stock
