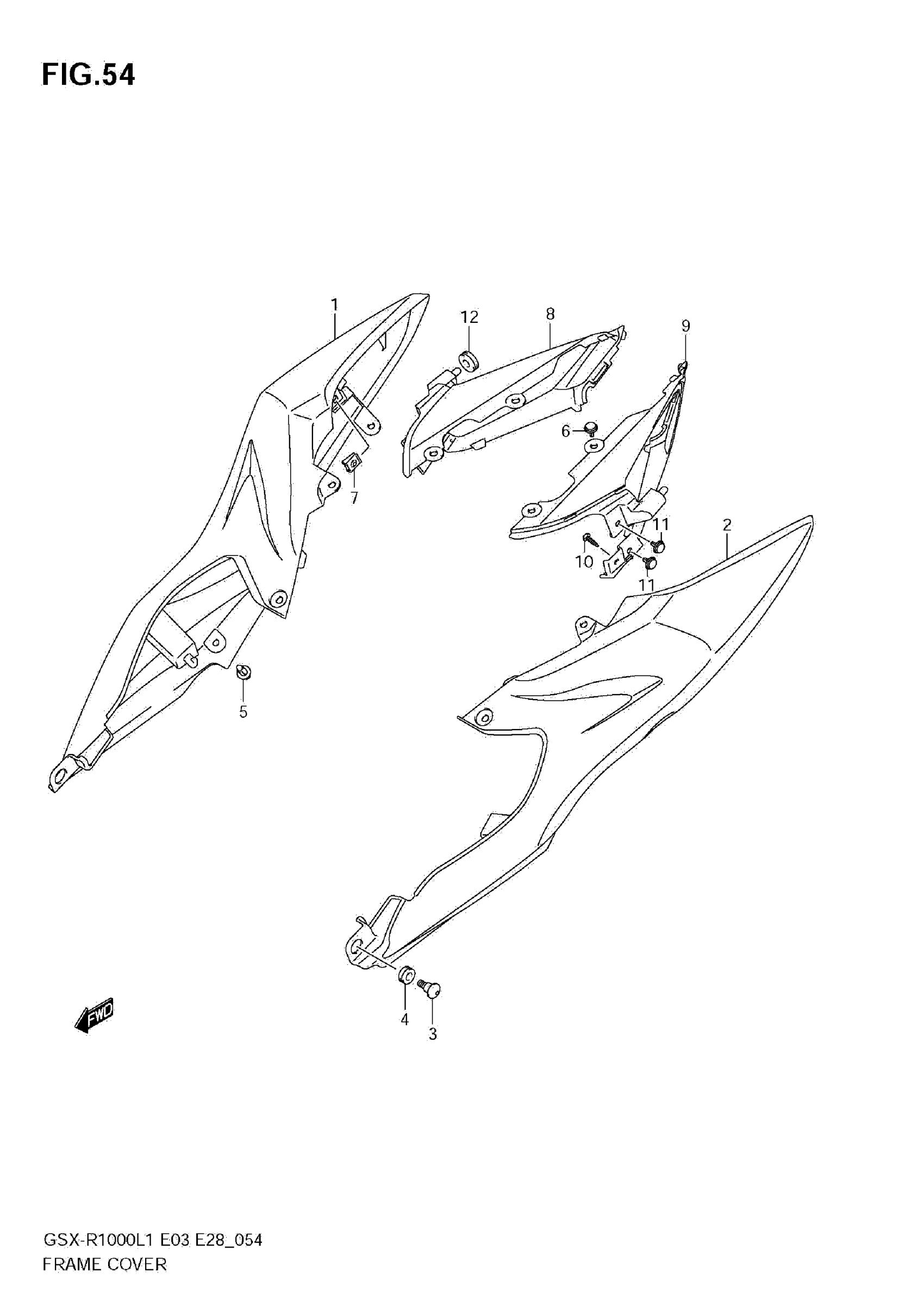

Suzuki GSX-R1000L1 (2011) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR GLR

47111-47H00-YBD

$192.60

1

COVER, FRAME RH (BLACK) | FOR HTL

47111-47H00-YKV

$189.03

2

COVER, FRAME LH (WHITE) | FOR GLR

47211-47H00-YBD

$196.23

2

COVER, FRAME LH (BLACK) | FOR HTL

47211-47H00-YKV

$192.60

3

SCREW, FRONT

47133-43H00

$6.03

4

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

5

CLIP

09409-06314-5PK

$2.78

6

CLIP

09409-06328

$3.23

7

NUT

09148-05038

$1.97

8

COVER, FRAME REAR RH (SILVER) | FOR HTL

47611-47H00-YMC

$113.68

8

COVER, FRAME REAR RH (BLACK) | FOR GLR

47611-47H00-019

$113.68

9

COVER, FRAME REAR LH (SILVER) | FOR HTL

47621-47H00-YMC

$113.68

9

COVER, FRAME REAR LH (BLACK) | FOR GLR

47621-47H00-019

$113.68

10

SCREW

03541-0512A

$1.49

11

CLIP

09409-06328

$3.23

12

CUSHION

09320-06504

$4.96
