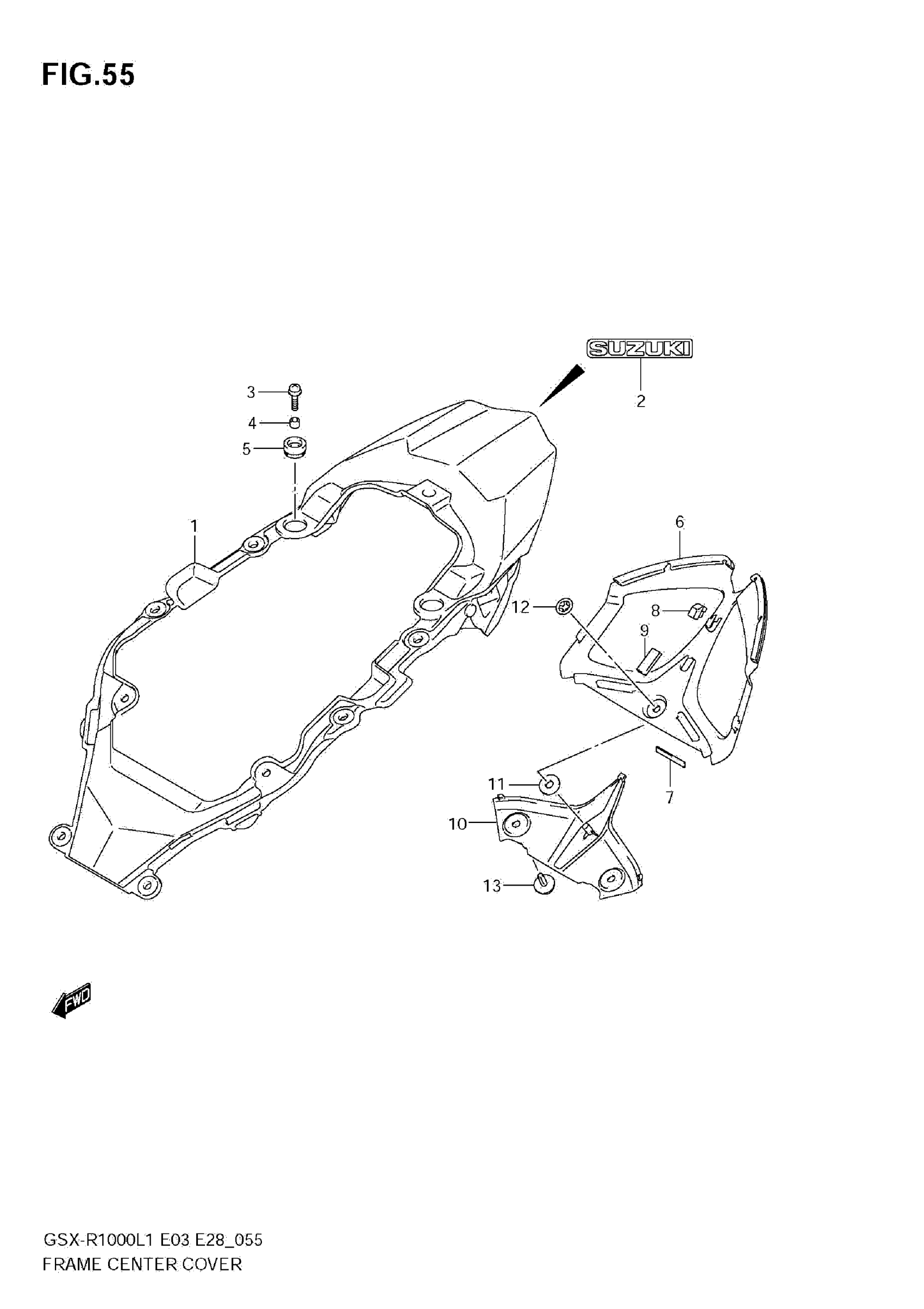

Suzuki GSX-R1000L1 (2011) FRAME CENTER COVER Diagram

#

Description
Price

1

COVER ASSY,FRAM | FOR GLR This part replaces 47300-47H00-YSF.

47300-47H01-YSF

$238.33

1

COVER ASSY,FRAM | FOR HTL This part replaces 47300-47H00-019.

47300-47H01-019

$242.83

2

EMBLEM,SUZUK This part replaces 68165-16B00-YD8.

68165-16B01-YD8

$6.42

3

SCREW (6X16)

09136-06056

$2.19

4

SPACER (6.5X10X7)

09180-06283

$1.91

5

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

6

COVER, REAR CENTER (SILVER) | FOR HTL

47911-47H00-YMC

$98.88

6

COVER, REAR CENTER (BLACK) | FOR GLR

47911-47H00-019

$98.88

7

CUSHION

47912-47H00

$7.50

8

CUSHION

47913-37H00

$5.52

9

CUSHION

94413-08F00

$3.78

10

COVER, REAR LOWER (WHITE) | FOR GLR

47921-47H00-YBD

Unavailable

10

COVER, REAR LOWER (BLACK) | FOR HTL

47921-47H00-019

Unavailable

11

CUSHION

09320-06501

$3.60

12

NUT This part replaces 09148-05006.

09148-05012

$1.75

13

CLIP

09409-06328

$3.23
