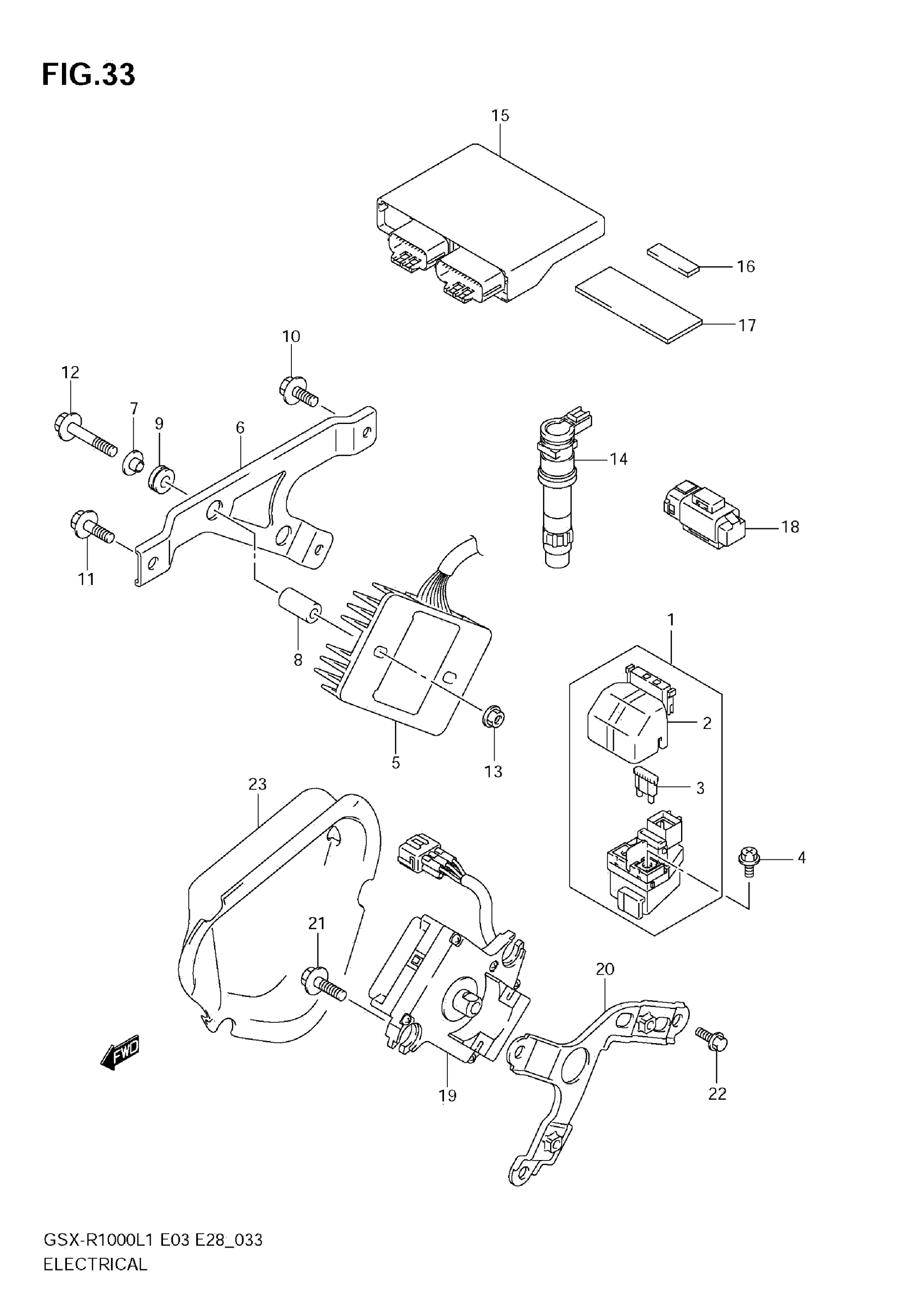

Suzuki GSX-R1000L1 (2011) ELECTRICAL (GSX-R1000L1 E28) Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR

31800-41G10

$92.59

2

COVER

31861-38G00

$4.88

3

FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-47H00

$263.17

6

BRACKET, RECTIFIER

32831-47H10

$39.83

7

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

8

SPACER (6.2X14.5X26)

09180-06345

$10.28

9

CUSHION (8.4X18X6)

09320-08066

$8.24

10

BOLT

01550-0616A

$1.97

11

BOLT

01550-0620A

$1.97

12

BOLT

01550-0645A

$2.41

13

NUT

08316-1006A

$2.19

14

COIL ASSY, IGNITION

33410-47H00

$150.98

15

CONTROL UNIT, FI

32920-47H10

Unavailable

16

CUSHION, FI CONTROL UNIT

33652-23H20

Unavailable

17

CUSHION, FI CONTROL UNIT

33652-07D00

$5.64

18

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88

19

ACTUATOR ASSY This part replaces 33970-47H00.

33970-47H03

$422.63

20

HOLDER, ACTUATOR

33971-47H00

Unavailable

21

BOLT (6X25)

09116-06202

$3.49

22

BOLT

01547-0612A

$2.03

23

COVER, ACTUATOR

33977-47H00

$29.57
